(20.04.02[2]) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 21 FT, KNIFE SECTION, MY11

Запчасти Case IH DH212 (20.04.02[2]) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 21 FT, KNIFE SECTION, MY11 (14) - CROP CUTTING

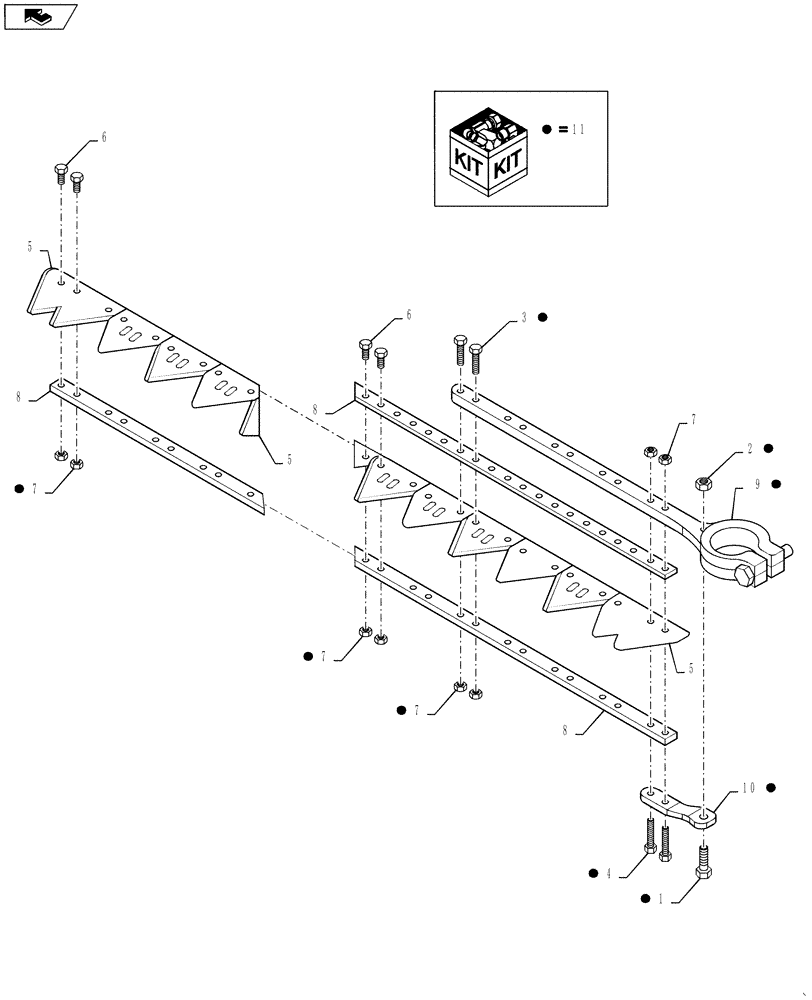

Схема запчастей Case IH DH212 - (20.04.02[2]) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 21 FT, KNIFE SECTION, MY11 (14) - CROP CUTTING
7
8
7
11
8
11
4
11
7
11
11
11
home
3
9
11
10
6
6
11
11
11
1
5
2
5
7
5
8
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

2

280736

NUT,5/16"-18, GC

1шт.

3

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

8шт.

4

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

5

86561692

KNIFE

4шт.

6

86563537

BOLT

6шт.

7

353308

NUT,M6 x 1.0, Cl 8

16шт.

8

84274199

KNIFE

1шт.

9

84331179

KNIFE

1шт.

10

84474169

STRAP

1шт.

11

84477531

SERVICE KIT

Kit includes Ref. 1, 2, 3, 4, 7, 9 & 10

1шт.

Выбрано товаров: 11
