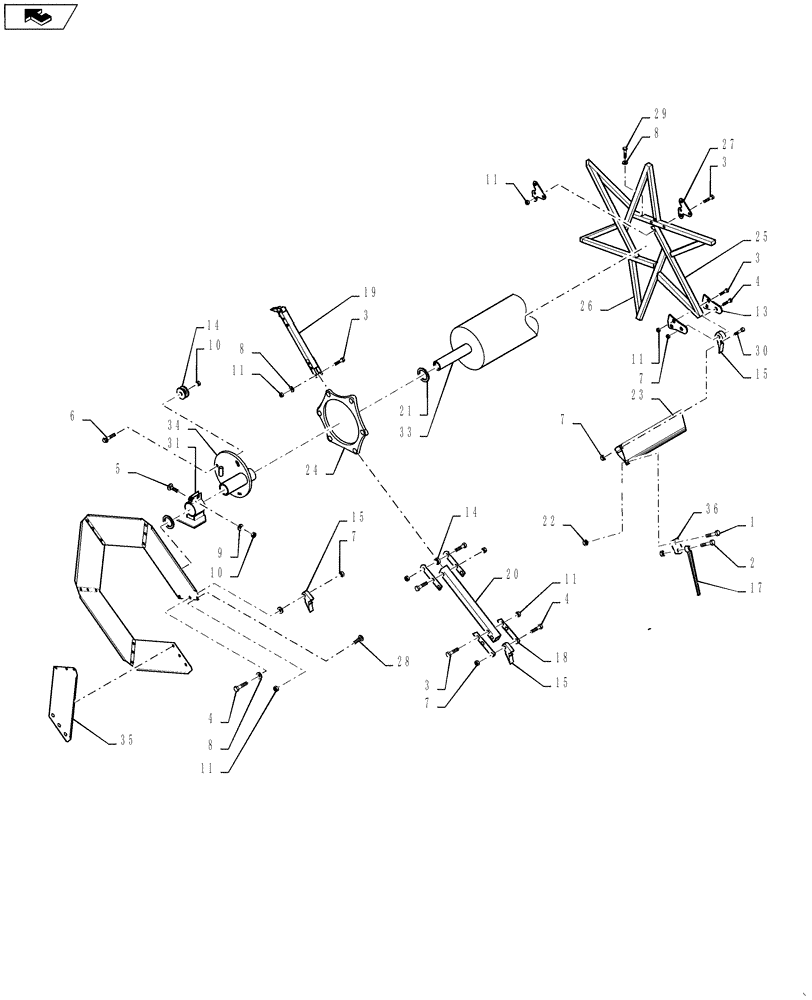

Запчасти Case IH DH212 (20.05.31[2]) - UII REEL, 18, 21 & 25 FT, 6 BAT, FROM PIN YAZB01204 (13) - REEL

1

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

2

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

3

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Qty. [216] 18 Ft., [258] 21 & 25 Ft.

1шт.

4

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

Qty. [58] 18 Ft.,. [64] 21 & 25 Ft.

1шт.

5

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

4шт.

6

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

6шт.

7

86050277

NUT,5/16"-18, GB

Qty. [106] 18 Ft., [118] 21 & 25 Ft.

1шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

Qty. [52 ] 18 Ft., [58] 21 & 25 Ft.

1шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

10

88902

NUT,3/8"-16

10шт.

11

86562216

NUT,Keps, w/LW,1/4"-20

Qty. [240 ] 18 Ft., [282] 21 & 25 Ft.

1шт.

12

86562180

REEL TINE

Qty. [312 ] 18 Ft., [366] 21 Ft. [438] 25 Ft.

1шт.

13

86562181

PLATE

Qty. [48 ] 18 Ft., [60] 21 & 25 Ft.

1шт.

14

86562184

ROLLER

6шт.

15

86562185

BEARING CARRIER

Qty. [48 ] 18 Ft., [54] 21 & 25 Ft.

1шт.

16

87052189

BALL BEARING

10шт.

17

86562205

REEL TINE

6шт.

18

86562186

END PLATE

44шт.

19

86562187

ARM

2шт.

20

86562197

ARM

10шт.

21

86562200

WASHER

4шт.

22

280129

NUT,1/4"-20

Qty. [324] 18 Ft., [378] 21 Ft., [450] 25 Ft.

1шт.

23

86562221

SUPPORT

6шт.

24

86562206

RING

2шт.

25

86562207

ARM

Qty. [24 ] 18 Ft., [30] 21 & 25 Ft.

1шт.

26

86562208

SUPPORT

Qty. [24 ] 18 Ft., [30] 21 & 25 Ft.

1шт.

27

86562210

PLATE

Qty. [48 ] 18 Ft., [60] 21 & 25 Ft.

1шт.

28

86511930

SCREW,Pan, 1/4" - 20 x 3/8"

24шт.

29

86562214

BOLT,5/16" x 1 3/4"

Qty. [24 ] 18 Ft., [30] 21 & 25 Ft.

1шт.

30

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

Qty. [48 ] 18 Ft., [54] 21 & 25 Ft.

1шт.

31

86604795

CLAMP

2шт.

32

86511932

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 3/4"

Qty. [312 ] 18 Ft., [366] 21 Ft., [438] 25 Ft.

1шт.

33

87048896

SHAFT

18 fT.

1шт.

33

86624879

SHAFT

21 Ft

1шт.

33

86624872

SHAFT

25 Ft.

1шт.

34

87524555

CONTROL

2шт.

35

87523722

SHIELD

12шт.

36

87499830

MOUNTING PLATE

6шт.
