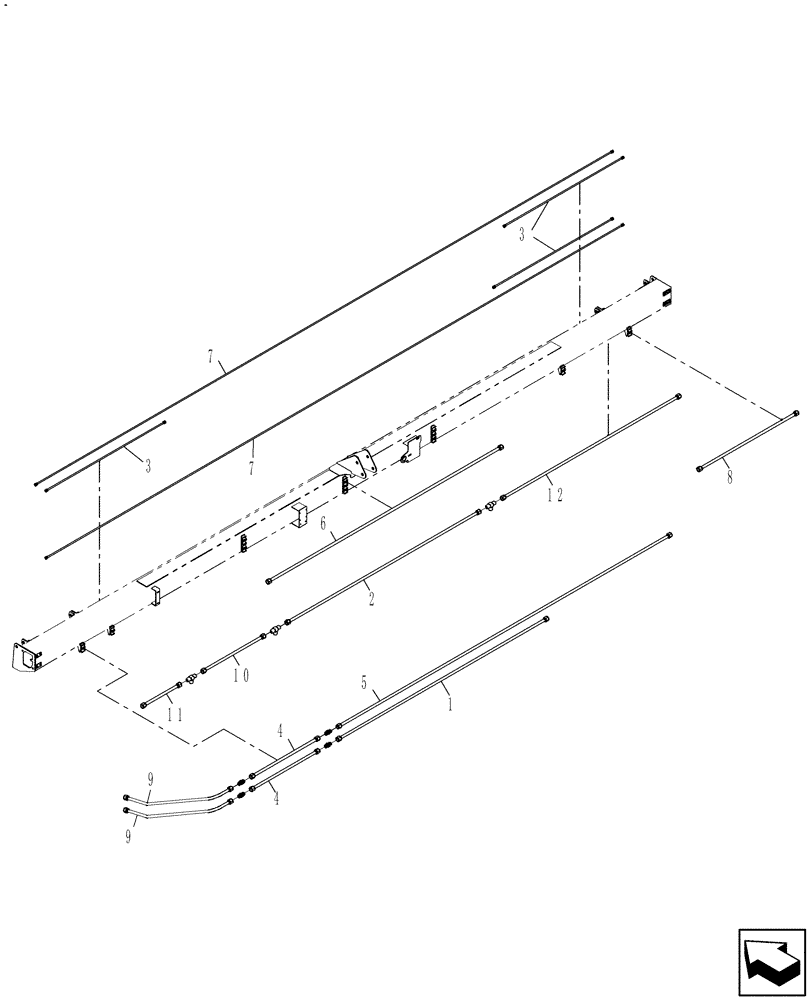

Запчасти Case IH DH212 (20.07.08[02]) - STEEL LINES, DOUBLE SWATH, 21 FT, FROM PIN YAZB01204 (07) - HYDRAULICS

1

87546412

HYD TUBE,.75" DIA x 84" L

3/4" x 84"

1шт.

2

87052002

HYD TUBE,0.75" DIA x 77" L

3/4" x 77"

1шт.

2

86563822

HYD TUBE,0.375" OD x 48" L

3/8" x 48"

3шт.

4

86563687

HYD TUBE,0.75" DIA x 26" L

3/4" x 26"

2шт.

5

86563662

HYD TUBE,0.75" DIA x 134" L

3/4" x 134"

1шт.

6

86563555

HYD TUBE,0.75" DIA x 94" L

3/4" x 94"

1шт.

7

86563832

HYD TUBE,0.375" OD x 234" L

3/8" x 234"

2шт.

8

86563844

HYD TUBE,0.75" DIA x 39" L

3/4" x 39"

1шт.

9

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

9

86976057

HYD TUBE,0.75" ID x 24.00" L

3/4" x 24"

1шт.

10

87025538

HYD TUBE,0.75" DIA x 14" L

3/4" x 14"

1шт.

11

87052003

HYD TUBE,0.75" DIA x 71" L

3/4" x 71"

1шт.
