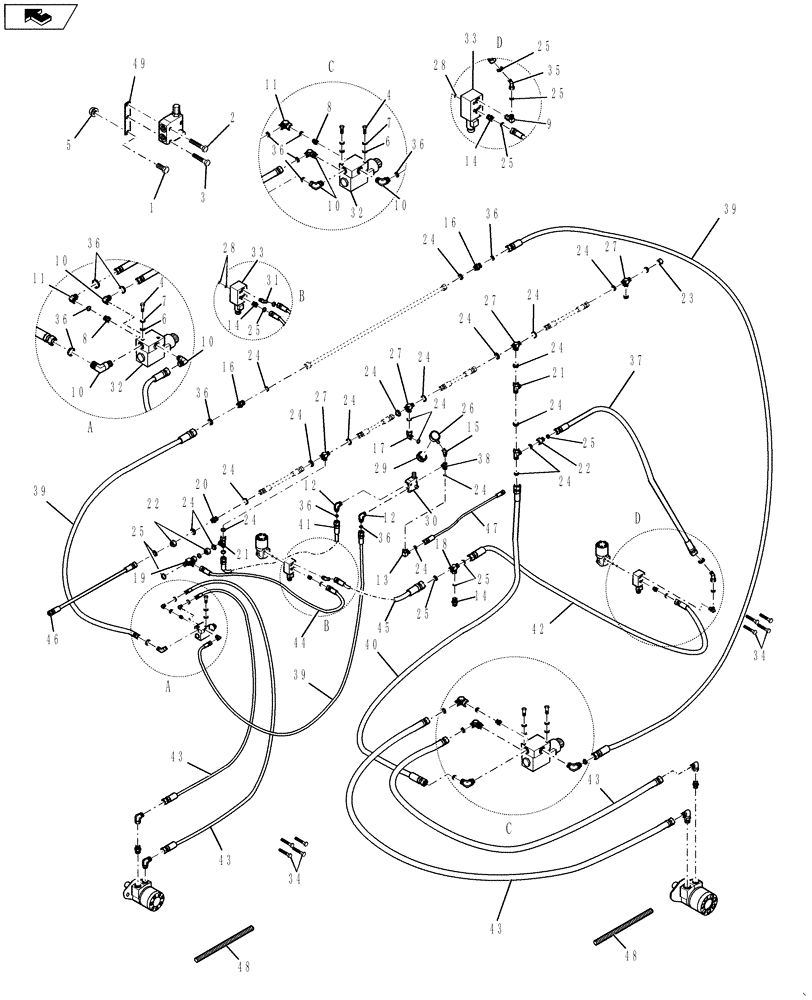

Запчасти Case IH DH212 (20.07.06[1]) - HYDRAULICS, DOUBLE SWATH, 21FT, FROM PIN YAZB01204 (07) - HYDRAULICS

1

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

2

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

1шт.

3

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

4

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

9626558

FLANGE NUT,Flg, 1/4"-20

3шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

10

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

6шт.

11

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

12

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

13

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

3шт.

15

689194

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

16

86514208

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree

2шт.

17

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

18

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

19

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

20

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

21

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

3шт.

22

86563543

ADAPTER

6MJ x 12FJ

3шт.

23

219606

CAP,1-1/16" - 12 JIC

1шт.

24

84370318

CLIP

Seal, #12, 37 Deg Flare

25шт.

25

84391395

CLIP

Seal, #06 37 Deg. Flare

13шт.

26

86563546

GAUGE

1шт.

27

80015694

TEE,1 1/16"-12 37 Degree

4шт.

28

164380

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

4шт.

29

87033323

COVER

1шт.

30

87051017

FLOW DIVIDER

1шт.

31

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

32

87053580

VALVE

2шт.

33

87053581

VALVE

2шт.

34

87053586

BOLT

8шт.

35

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

36

84370317

CLIP

Seal, #10, 37 Deg Flare

14шт.

37

86599674

HYDRAULIC HOSE

1шт.

38

86563548

ELBOW

1шт.

39

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

2шт.

40

87050565

HYDRAULIC HOSE,0.50" ID x 22.00"

1шт.

41

86563686

HYDRAULIC HOSE,12.70 mm ID x 762.00 mm

1шт.

42

86599080

HYDRAULIC HOSE,0.38" ID x 48.00"

3/8" ID x 48"

1шт.

43

87025567

HOSE,114.00"

4шт.

44

87046540

HYDRAULIC HOSE,0.38" ID x 18.00"

1шт.

45

87053584

HYDRAULIC HOSE,0.38" ID x 93.00"

1шт.

46

84153484

HOSE

1шт.

47

84391396

HYDRAULIC HOSE

1/4" ID x 105"

1шт.

48

84391397

SLEEVE

2шт.

49

86593486

MOUNTING PLATE

1шт.
