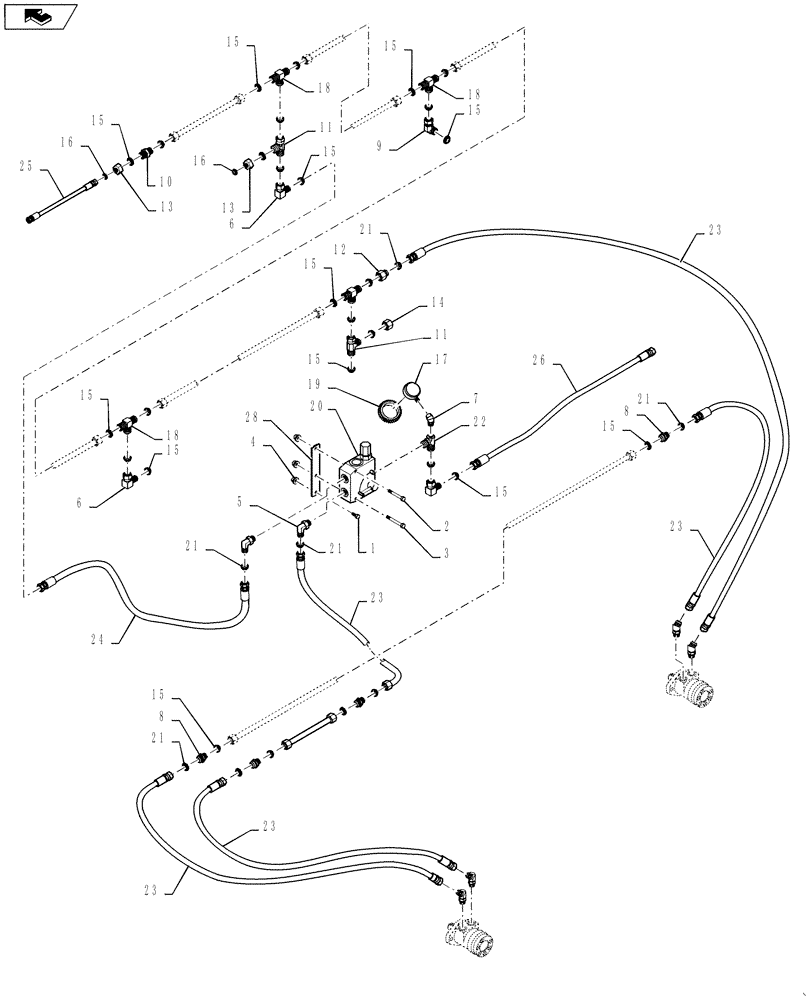

Запчасти Case IH DH212 (20.07.05[2.1]) - HYDRAULICS, SINGLE SWATH FROM PIN YAZB01204 (07) - HYDRAULICS

1

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

2

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

1шт.

3

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

4

9626558

FLANGE NUT,Flg, 1/4"-20

3шт.

5

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

6

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

3шт.

7

689194

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

8

86514208

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree

4шт.

9

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

10

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

11

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

12

850459

REDUCER

1шт.

13

86563543

ADAPTER

6MJ x 12FJ

2шт.

14

219606

CAP,1-1/16" - 12 JIC

1шт.

15

84370318

CLIP

Seal, #12, 37 Deg Flare

27шт.

16

84391395

CLIP

Seal, #06 37 Deg. Flare

2шт.

17

86563546

GAUGE

1шт.

18

80015694

TEE,1 1/16"-12 37 Degree

4шт.

19

87033323

COVER

1шт.

20

87051017

FLOW DIVIDER

1шт.

21

84370317

CLIP

Seal, #10, 37 Deg Flare

7шт.

22

86563548

ELBOW

1шт.

23

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

5шт.

24

86563686

HYDRAULIC HOSE,12.70 mm ID x 762.00 mm

1шт.

25

84153484

HOSE

1шт.

26

84391396

HYDRAULIC HOSE

1/2" ID x 95" Long

1шт.

27

86593486

MOUNTING PLATE

1шт.
