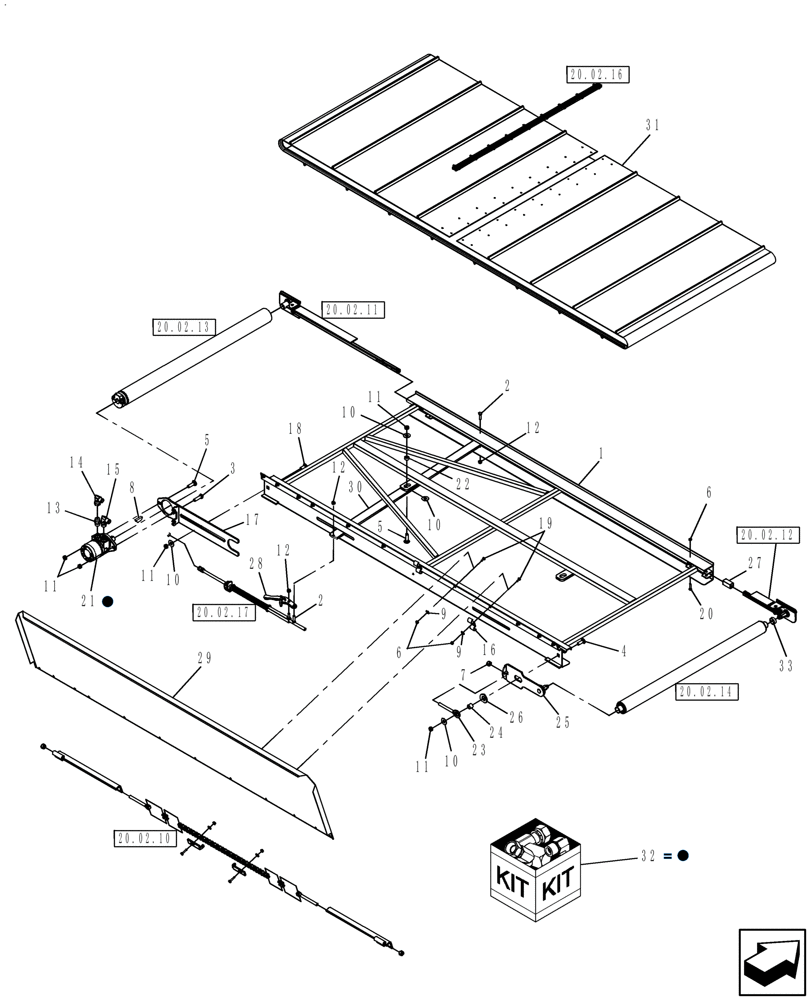

Запчасти Case IH DH212 (20.02.02) - DRAPER DECK, LH & RH, 21 FT (15) - CROP CONDITIONING

1

84136096

FRAME

84", W/V- Groove

2шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

4

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

5

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

6

86532

LOCK NUT

1/4"-20

26шт.

7

87530607

NUT

Lock, 1/2"-13

6шт.

8

80768

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

9

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

28шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

11

88871

NUT,1/2"-13, GC

10шт.

12

88902

NUT,3/8"-16

6шт.

13

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

14

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

15

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

16

86563519

CLAMP

4шт.

17

87738786

PLATE

2шт.

18

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

19

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

24шт.

20

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

2шт.

21

84136262

HYDRAULIC MOTOR

Parker, 41cc, 1" Shaft

2шт.

84136262R

REMAN-HYD MOTOR

DH212 (1/09-)

2шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

22

86563235

SPACER

2шт.

23

86560834

THREADED ROD

1/2"-13

4шт.

24

86563188

SPACER

2шт.

25

87629156

IDLER

2шт.

26

87038603

SPRING WASHER

2шт.

27

87050553

SPACER

2шт.

28

87038598

PUSH-PULL COUPLING

2шт.

29

87520092

PANEL

2шт.

30

86560841

STABILIZER BAR

2шт.

30

84197266

BAR

2шт.

From Pin YAZB00998

1шт.

31

84184535

CANVAS

42" x 198", V-Skim

2шт.

31

84316716

CANVAS

42" x 198", V/FXS

2шт.

From Pin YAZB00998

1шт.

31

84388959

BELT

42", 24 OZ, 198", GDD Raptor V3

2шт.

From PIN YAZB01204

1шт.

32

84135785

SEAL KIT

Ref 21

1шт.

33

84265972

INSERT

1шт.
