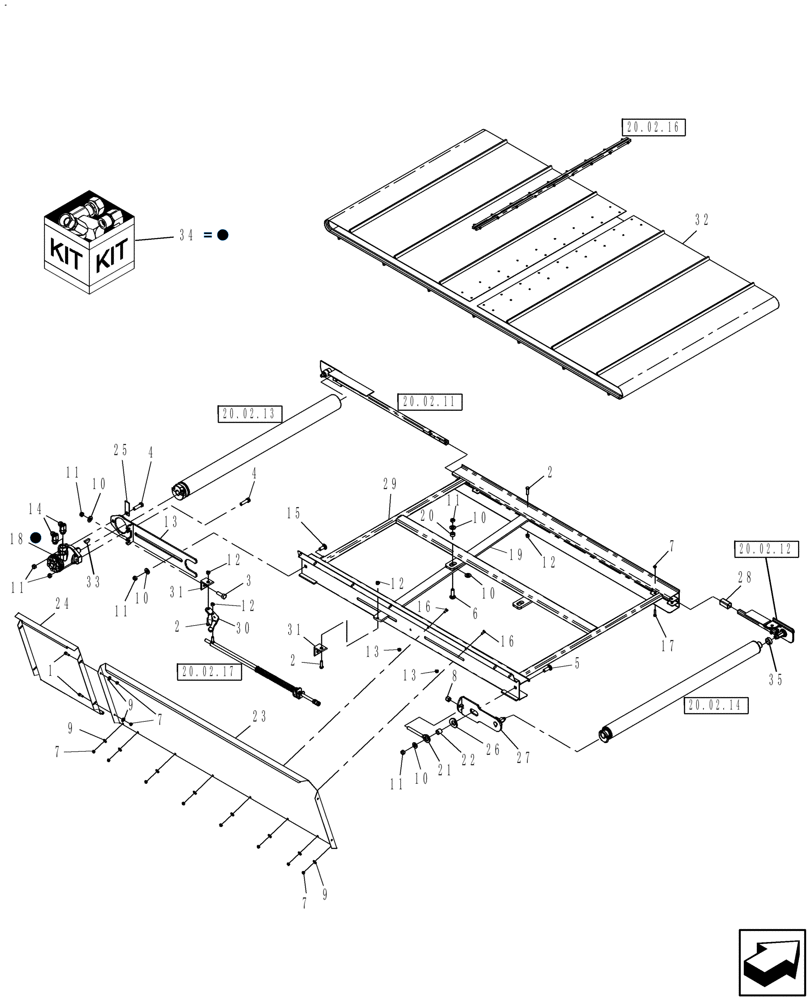

Запчасти Case IH DH182 (20.02.01) - DRAPER DECK, LH & RH, 18 FT (15) - CROP CONDITIONING

1

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

5

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

6

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

7

86532

LOCK NUT

1/4"-20

22шт.

8

87530607

NUT

Lock, 1/2"-13

2шт.

9

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

20шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

10шт.

11

88871

NUT,1/2"-13, GC

12шт.

12

88902

NUT,3/8"-16

8шт.

13

87738786

PLATE

2шт.

14

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

4шт.

15

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

16

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

16шт.

17

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

2шт.

18

84136262

HYDRAULIC MOTOR

Parker, 41cc, 1" Shaft

2шт.

84136262R

REMAN-HYD MOTOR

DH182 (1/09-)

2шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

19

86560841

STABILIZER BAR

2шт.

19

84197266

BAR

2шт.

From Pin YAZB00998

1шт.

20

86563235

SPACER

2шт.

21

86560834

THREADED ROD

1/2"-13

2шт.

22

86563188

SPACER

2шт.

23

86640039

PANEL

2шт.

24

86640034

PANEL

2шт.

25

86578677

CONNECTING LINK

2шт.

26

87038603

SPRING WASHER

7/8", Special, Bent

2шт.

27

87629156

IDLER

1шт.

28

87050553

SPACER

2шт.

29

84178219

FRAME

58", W/V-Groove

2шт.

29

84386141

FRAME

58", From PIN YAZB01204

2шт.

30

87038598

PUSH-PULL COUPLING

2шт.

31

87038594

ANGLE

2шт.

32

84188562

BELT

V-Guided, Skim

2шт.

32

84316715

CANVAS

42-24OZ-160 V/FXS

2шт.

From Pin YAZB00998

1шт.

32

84388958

BELT

42", 160", GDD Raptor V3

2шт.

From PIN YAZB01204

1шт.

33

80768

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

34

84135785

SEAL KIT

Ref 18

1шт.

35

84265972

INSERT

1шт.
