(20.04.11[1]) - DOUBLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, KNIFE SECTIONS, FROM PIN YAZB00998

Запчасти Case IH DH182 (20.04.11[1]) - DOUBLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, KNIFE SECTIONS, FROM PIN YAZB00998 (14) - CROP CUTTING

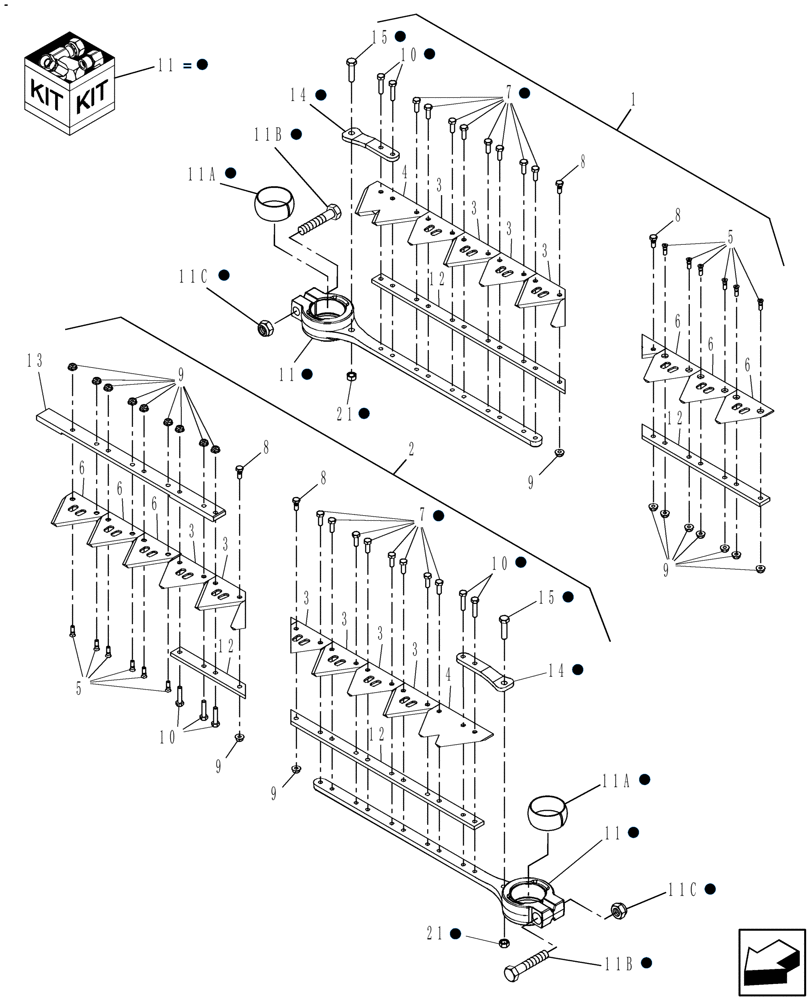

Схема запчастей Case IH DH182 - (20.04.11[1]) - DOUBLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, KNIFE SECTIONS, FROM PIN YAZB00998 (14) - CROP CUTTING
14
8
3
6
12
3
9
5
10
10
3
11b
6
11
3
4
3
11a
9
3
11c
13
9
9
3
11
12
21
11a
3
9
7
8
3
6
11c
8
2
6
10
5
6
3
7
15
11
12
14
8
21
1
12
6
15
4
11b
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84274183

KNIFE ASSY

18 Ft, RH

1шт.

1

84274198

KNIFE ASSY

21 Ft, RH

1шт.

1

84274196

KNIFE ASSY

25 Ft, RH

1шт.

2

84274181

KNIFE ASSY

18 Ft, LH

1шт.

2

84274186

KNIFE ASSY

21 Ft, LH

1шт.

2

84274197

KNIFE ASSY

25 Ft, LH

1шт.

3

86561692

KNIFE

Sickle Sec. Pro Cut

1шт.

Qty. [65] 18 Ft, [77] 21 Ft, [93] 25 Ft

1шт.

4

87037117

KNIFE SECTION

Twin Point

2шт.

5

84242661

BOLT

M6 x 1.0 x 16, Countersunk

12шт.

6

84242662

KNIFE SECTION

Countersunk, Overlap

6шт.

7

86563535

BOLT

M6 x 18

16шт.

8

86563537

BOLT

M6 x 16, Spline

1шт.

Qty. [113] 18 Ft, [137] 21 Ft, [169] 25 Ft.

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

Qty. [128] 18 Ft, [152] 21 Ft, [184] 25 Ft

1шт.

10

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

7шт.

11

84241612

KNIFE HEAD

Includes: Qty. [1] of Ref. 14, 15 and 21, [8] of Ref. 7 and [ 2] of Ref. 10.

2шт.

11a

87672659

INSERT

2шт.

11b

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

11c

88871

NUT,1/2"-13, GC

2шт.

12

84274202

KNIFE BACK

18 Ft.

2шт.

12

84274185

KNIFE BACK

25 Ft.

2шт.

13

86616609

STRAP

Bar Overlap, 3 Section

1шт.

14

84241614

STRAP

2шт.

15

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

21

280736

NUT,5/16"-18, GC

2шт.
