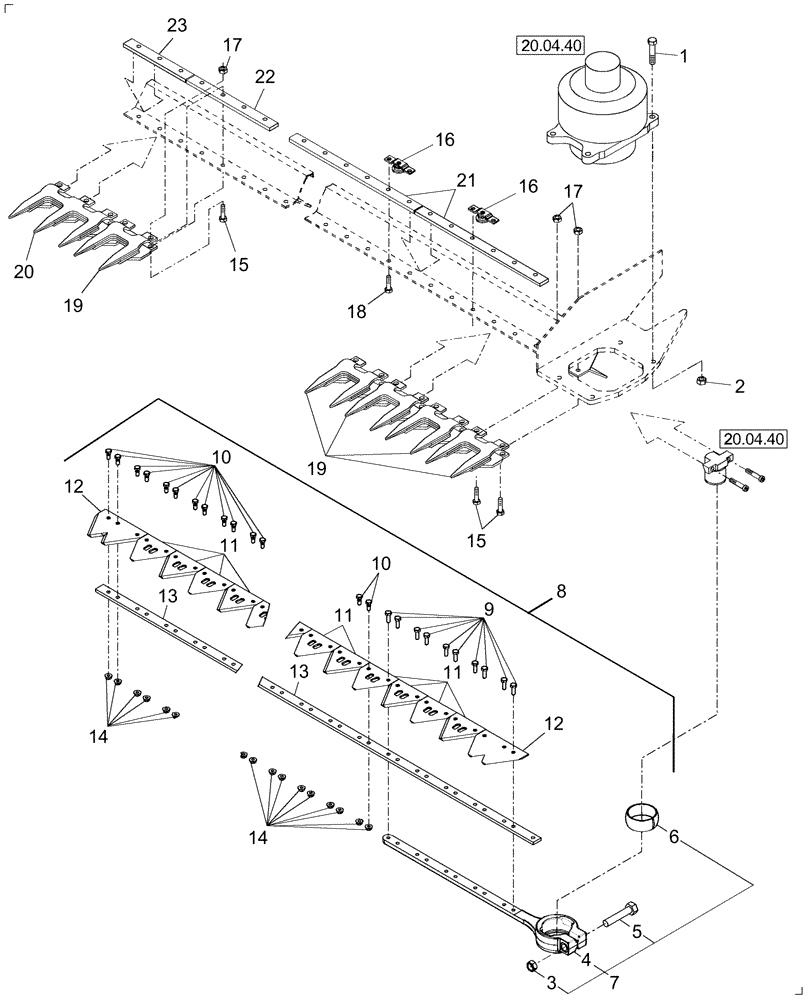

Запчасти Case IH DH182 (20.04.01) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 18 FT (14) - CROP CUTTING

1

86551024

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 8

4шт.

2

88130

NUT,1/2"-20, GC

4шт.

3

88871

NUT,1/2"-13, GC

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

6

87672659

INSERT

Steel

1шт.

7

87667487

SERVICE KIT

Knife Head

1шт.

8

87483432

KNIFE ASSY

1шт.

9

86563535

BOLT

M6 x 18

10шт.

10

86563537

BOLT

M6 x 28

136шт.

11

86561692

KNIFE

Single Point

70шт.

12

87037117

KNIFE SECTION

Double Point

2шт.

13

86593895

KNIFE

Back

1шт.

14

353308

NUT,M6 x 1.0, Cl 8

136шт.

15

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

51шт.

16

87670866

ROLLER

Roller Bridge

11шт.

17

100016

NUT,M10 x 1.5, Cl 8

73шт.

18

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

22шт.

19

86561686

GUARD

12mm Standard

35шт.

20

86561687

GUARD

12mm Triple, Standard

1шт.

21

87672505

SPACER

6 Hole, 7mm

11шт.

22

87672712

BAR

4 Hole, 7mm

1шт.

23

87672711

BAR

3 Hole, 7mm

1шт.
