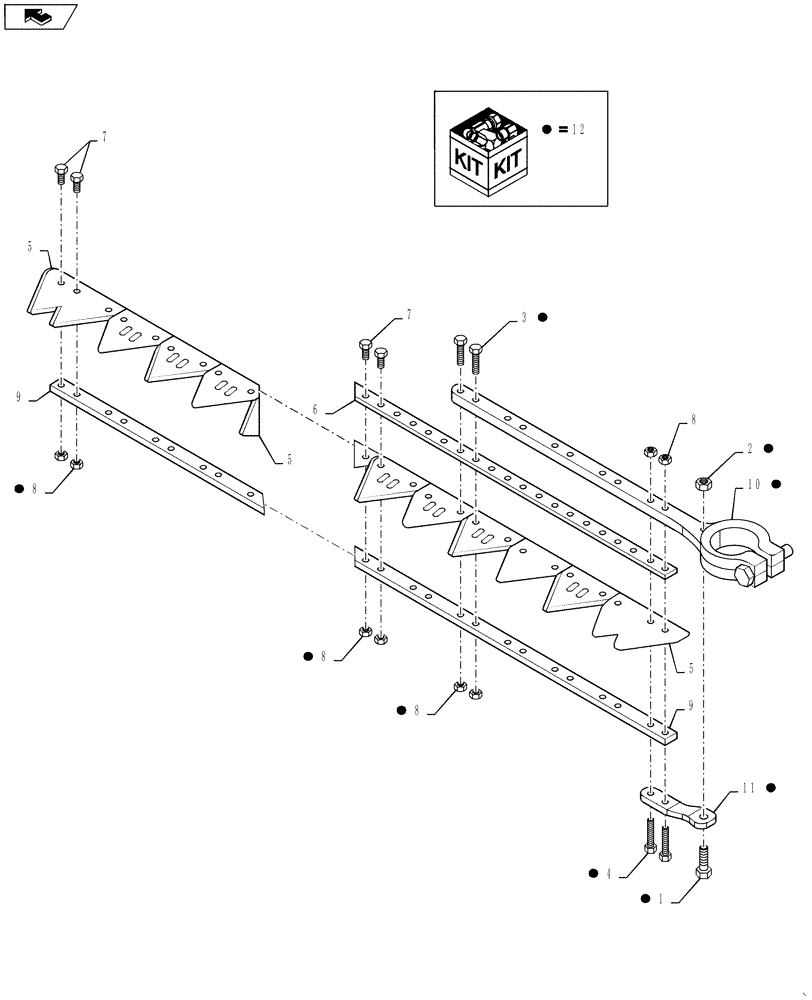

Запчасти Case IH DH182 (20.04.01[2]) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 18 FT, KNIFE SECTION, MY11 (14) - CROP CUTTING

1

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

2

280736

NUT,5/16"-18, GC

1шт.

3

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

8шт.

4

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

5

86561692

KNIFE

70шт.

6

87364374

STRAP

1шт.

7

86563537

BOLT

136шт.

8

353308

NUT,M6 x 1.0, Cl 8

146шт.

9

84274180

KNIFE BACK

1шт.

10

84331179

KNIFE

1шт.

11

84474169

STRAP

1шт.

12

84477531

SERVICE KIT

Kit includes Ref. 1, 2, 3, 4, 8, 10, & 11

1шт.
