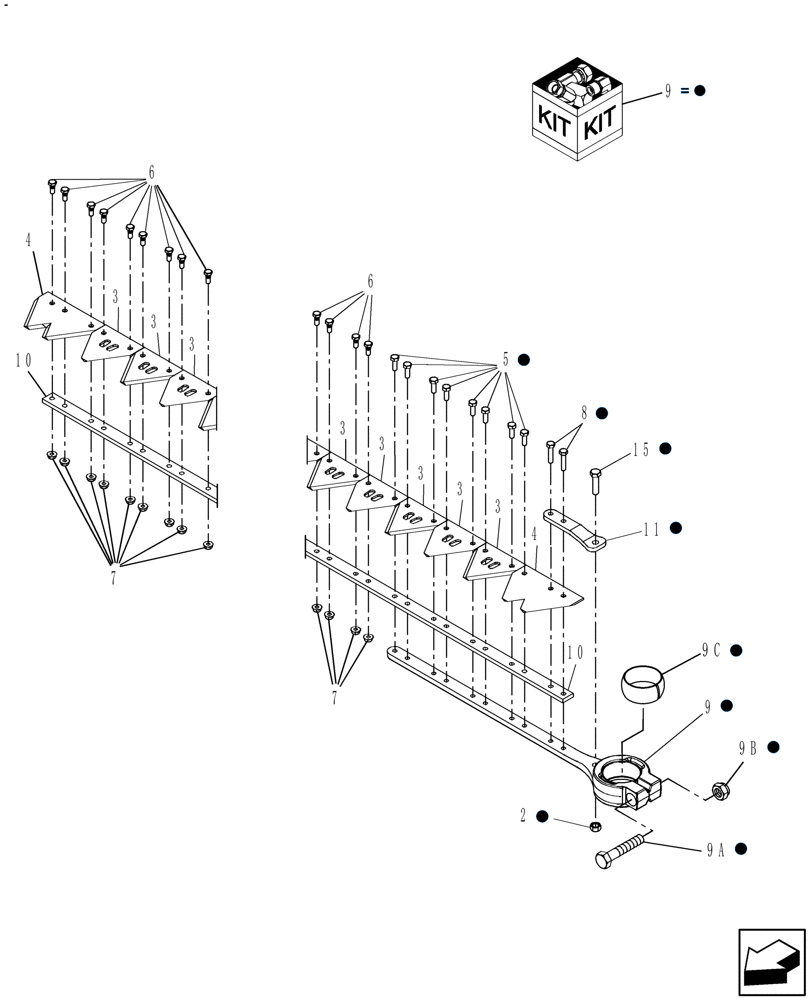

Запчасти Case IH DH182 (20.04.01[1]) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 18 FT, KNIFE SECTION, FROM PIN YAZB00998 (14) - CROP CUTTING

1

84274182

KNIFE ASSY

18 Ft. LH

1шт.

2

280736

NUT,5/16"-18, GC

1шт.

3

86561692

KNIFE

Sickle Sec. Pro-Cut

70шт.

4

87037117

KNIFE SECTION

End, Twin Point

2шт.

5

86563535

BOLT

M6 x 18

8шт.

6

86563537

BOLT

M6 x 16, Spline

6шт.

7

353308

NUT,M6 x 1.0, Cl 8

136шт.

8

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

9

84241612

KNIFE HEAD

Includes: Qty. [1] of 2,9,11 & 15, [8] of Ref 5, [2] of Ref. 8

1шт.

9a

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

9b

88871

NUT,1/2"-13, GC

1шт.

9c

87672659

INSERT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

84241614

STRAP

1шт.
