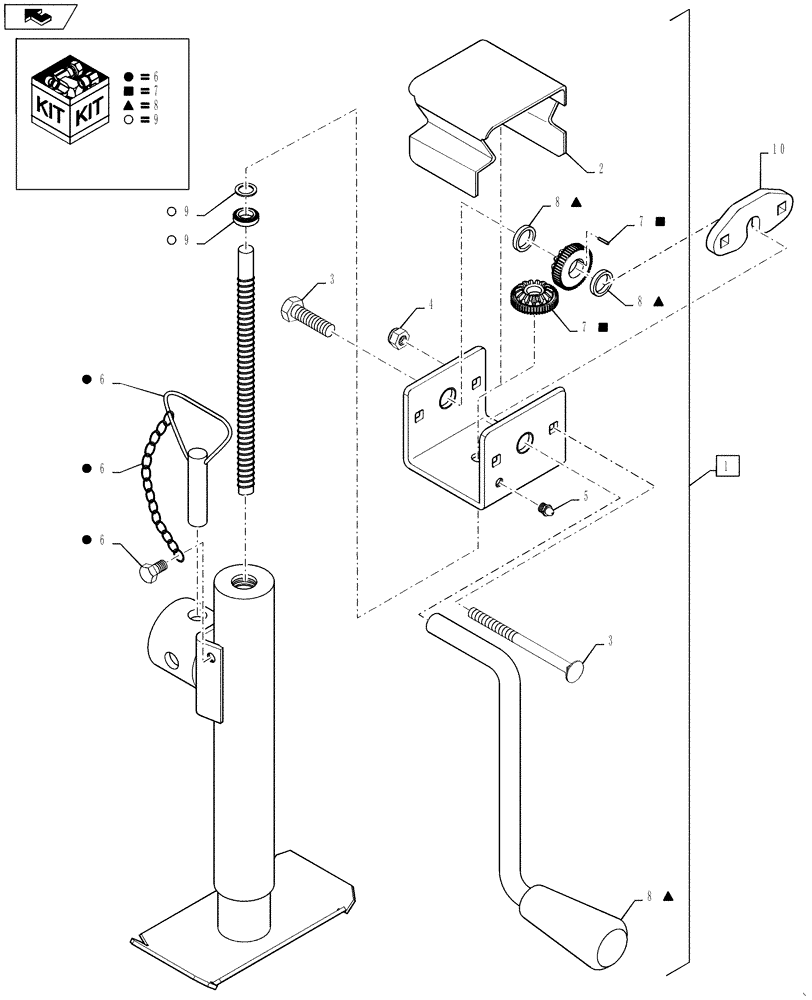

Запчасти Case IH DH182 (20.01.11[2]) - JACK (12) - MAIN FRAME

1

86588821

JACK

1шт.

2

86590816

COVER

Gearbox

1шт.

3

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

4

425-104

NUT,1/4"-20, Cl 5

1шт.

5

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

6

86590810

KIT

Pin & Chain, Includes: Pin, Chain & Drive Screw

1шт.

7

86590811

KIT

Gear, Includes: Gears & Pins

1шт.

8

86590812

KIT

Crank, Includes: Crank, Bushings & Pin

1шт.

9

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing, Includes: Thrust Bearing & Support Washer

1шт.
