Запчасти Case IH DH182 (20.07.20[2]) - HYDRAULIC HOSE CLAMPS, DOUBLE KNIFE DRIVE, FROM PIN YAZB01204 (07) - HYDRAULICS

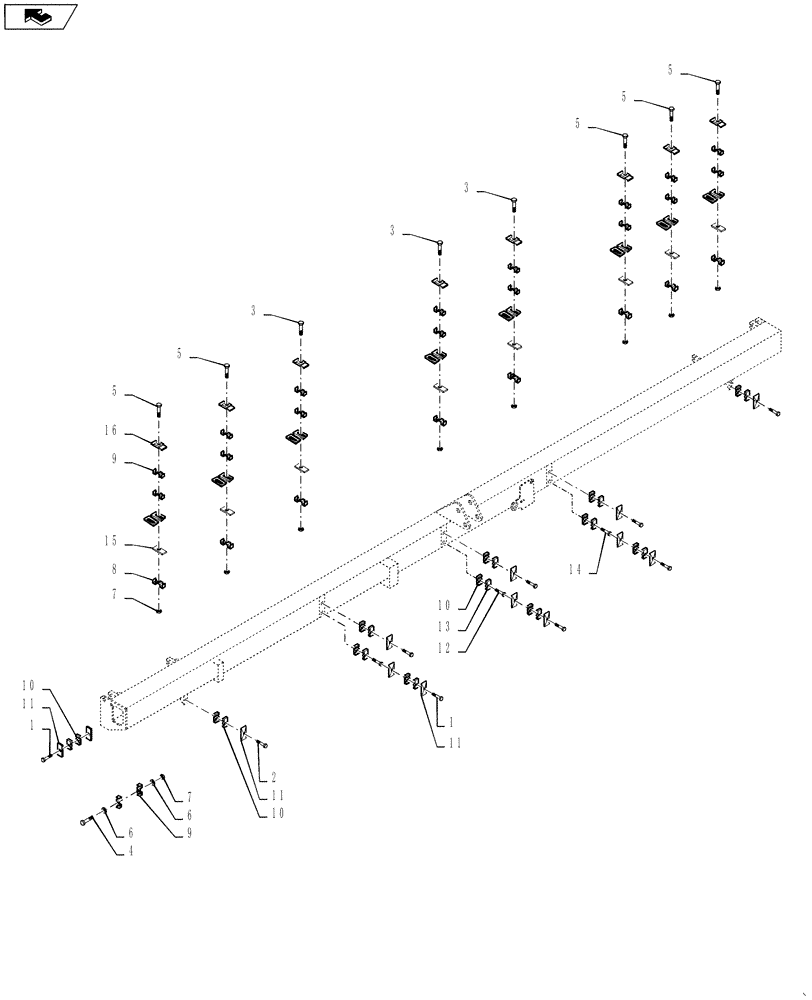

Схема запчастей Case IH DH182 - (20.07.20[2]) - HYDRAULIC HOSE CLAMPS, DOUBLE KNIFE DRIVE, FROM PIN YAZB01204 (07) - HYDRAULICS
1
10
14
5
9
13
5
8
11
12
7
5
4
10
11
6
7
3
2
16
5
home
3
11
5
10
15
6
1
3
9

Артикул

Название

Примечание

Количество

1

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

Qty. [9] 18Ft, [10] 21 & 25 Ft., [12] 30 Ft., [14] 36 Ft.

1шт.

2

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

Qty. [1] 18Ft, [2] 21, 25, 30 & 36 Ft

1шт.

3

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Qty. [3] 18, 21, 25 & 30Ft. [4] 36 Ft.

1шт.

4

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

5

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

Qty. [5] 18Ft, [6] 21 & 25 Ft., [8] 30 Ft., [10] 36Ft.

1шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

7

88902

NUT,3/8"-16

Qty. [10] 18 Ft., [11] 21 & 25 Ft., [13] 30 Ft., [16] 36 Ft.

1шт.

8

86563519

CLAMP

Qty. [8] 18 Ft., [9] 21 & 25 Ft., [11] 30 Ft., [14] 36Ft.

1шт.

9

87629727

CLAMP

Qty. [17] 18 Ft., [19] 21 & 25 Ft., [23] 30 Ft., [28] 36Ft.

1шт.

10

86563609

CLAMP

Qty. [14] 18 Ft., [16] 21 & 25 Ft., [19] 30 Ft., [22] 36Ft.

1шт.

11

87053042

PLATE

Qty. [10] 18 Ft., [12] 21 & 25 Ft., [14] 30 Ft., [16] 36Ft.

1шт.

12

86564908

BOLT

Qty. [3] 18 Ft., [4] 21 & 25 Ft., [5] 30 Ft., [6 ] 36Ft

1шт.

13

86564909

WASHER

Qty. [4] 18 Thru 25 Ft.,[5] 30 Ft, [6] 36 Ft

4шт.

14

87058876

BOLT

1шт.

15

86563607

INSULATOR

Qty. [8] 18 Ft., [9] 21 & 25 Ft., [11] 30 Ft., [14] 36 Ft.

1шт.

16

86593204

HOSE CLIP

Qty. [8] 18 Ft., [9] 21 & 25 Ft., [11] 30 Ft., [14] 36 Ft.

1шт.

Выбрано товаров: 16
