Запчасти Case IH DH182 (20.07.20[1]) - HYDRAULIC HOSE CLAMPS, SINGLE KNIFE DRIVE, FROM PIN YAZB01204 (07) - HYDRAULICS

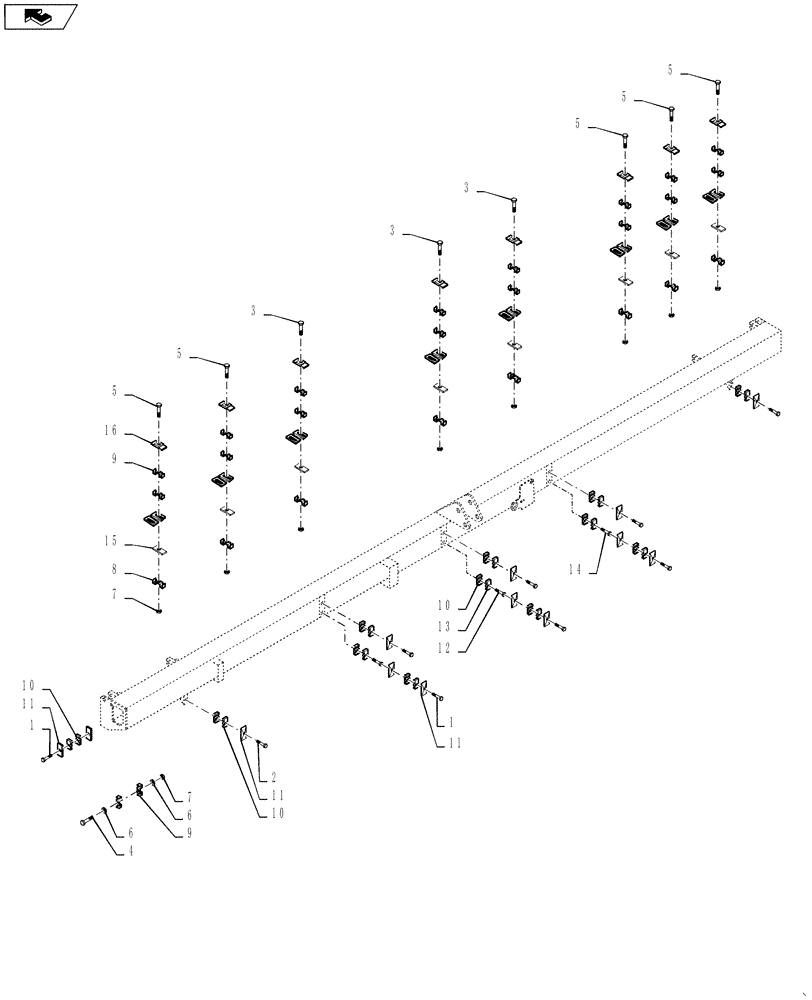

Схема запчастей Case IH DH182 - (20.07.20[1]) - HYDRAULIC HOSE CLAMPS, SINGLE KNIFE DRIVE, FROM PIN YAZB01204 (07) - HYDRAULICS
4
5
5
3
10
7
6
15
home
1
1
9
2
3
16
13
11
14
9
5
11
5
10
11
10
5
12
8
6
7
3

Артикул

Название

Примечание

Количество

1

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

Qty. [8] 18Ft, [9] 21 & 25 Ft., [11] 30 Ft.

1шт.

2

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

Qty. [1] 18Ft, [2] 21, 25 & 30 Ft.

1шт.

3

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

4

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

5

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

Qty. [5] 18Ft, [6] 21 & 25 Ft., [8] 30 Ft.

1шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

7

88902

NUT,3/8"-16

Qty. [9] 18 Ft., [10] 21 & 25 Ft., [12] 30 Ft.

1шт.

8

86563519

CLAMP

Qty. [8] 18 Ft., [9] 21 & 25 Ft., [11] 30 Ft.

1шт.

9

87629727

CLAMP

Qty. [15] 18 Ft., [17] 21 & 25 Ft., [21] 30 Ft.

1шт.

10

86563609

CLAMP

Qty. [12] 18 Ft., [13] 21 & 25 Ft., [15] 30 Ft.

1шт.

11

87053042

PLATE

Qty. [9] 18 Ft., [11] 21 & 25 Ft., [13] 30 Ft.

1шт.

12

86564908

BOLT

2шт.

13

86564909

WASHER

3шт.

14

87058876

BOLT

1шт.

15

86563607

INSULATOR

Qty. [8] 18 Ft., [9] 21 & 25 Ft., [11] 30 Ft.

1шт.

16

86593204

HOSE CLIP

Qty. [8] 18 Ft., [9] 21 & 25 Ft., [11] 30 Ft.

1шт.

Выбрано товаров: 16
