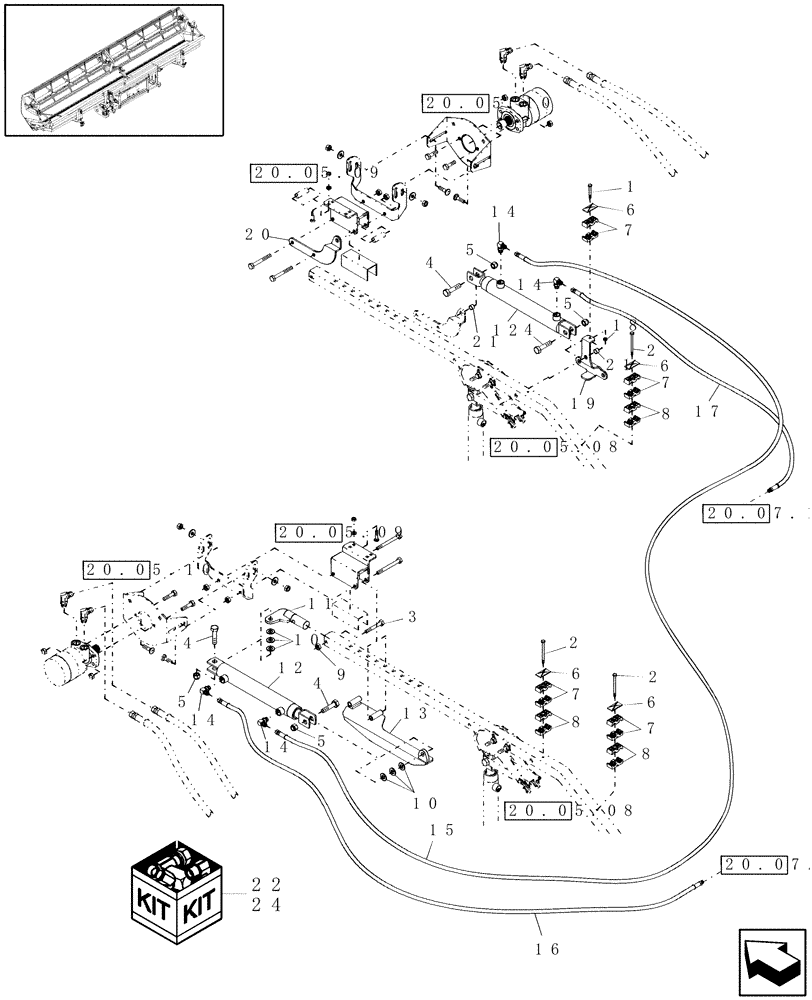

Запчасти Case IH DH182 (20.07.09[1]) - HYD FORE/AFT KIT, SOLID REEL (07) - HYDRAULICS

1

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

3шт.

2

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

3

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

4

87381555

CLEVIS PIN

4шт.

5

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

4шт.

6

87053042

PLATE

4шт.

7

86563609

CLAMP

Tube

2шт.

8

790240

CLAMP

Half

3шт.

9

88871

NUT,1/2"-13, GC

1шт.

10

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

10шт.

11

87019683

LUG

Front, F/A

1шт.

12

87551260

HYDRAULIC CYLINDER,Double Acting, 406.4mm Stroke

See Also Ref 25

2шт.

12

87486196

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 406.4mm Stroke

See Also Ref 25, Monarch, Model Year 2008 and follow

2шт.

13

87019682

LUG

Rear, F/A

1шт.

14

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Includes: O-Ring

4шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

15

87057519

HOSE ASSY.

4 FJX x 4 FJX, DH182

1шт.

15

87057518

HOSE ASSY.

4 FJX x 4 FJX, DH212

1шт.

15

87057517

HOSE ASSY.

4 FJX x 4 FJX, DH252

1шт.

15

87057515

HOSE ASSY.

4 FJX x 4 FJX, DH302

1шт.

15

87057516

HOSE ASSY.

4 FJX x 4 FJX, DH362

1шт.

16

87057514

HOSE ASSY.

4 FJX x 6JX, DH182

1шт.

16

87015270

FLEXIBLE HOSE,6.35 mm ID x 4724.40 mm

DH212

1шт.

16

87057511

HOSE ASSY.

4 FJX x 6JX, DH252

1шт.

16

87057509

HOSE ASSY.

4 FJX x 6JX, DH302

1шт.

16

87057510

HOSE ASSY.

4 FJX x 6JX, DH362

1шт.

17

87015271

FLEXIBLE HOSE,6.35 mm ID x 4902.20 mm

DH182

1шт.

17

87057513

HOSE ASSY.

4 FJX x 6JX, DH212

1шт.

17

87057509

HOSE ASSY.

4 FJX x 6JX, DH252

1шт.

17

87057520

HOSE ASSY.

4 FJX x 6JX, DH302

1шт.

17

87057512

HOSE ASSY.

4 FJX x 6JX, DH362

1шт.

18

280736

NUT,5/16"-18, GC

1шт.

19

87019390

LUG

Rear, F/A

1шт.

20

87019633

LUG

Front, F/A

1шт.

21

86561940

SPACER

F/A

2шт.

22

86564909

WASHER

Special, Lock

1шт.

23

84122149

BOLT

Twin Stack, Long

1шт.

24

87629232

DECAL

F/A Indicator

1шт.

25

87553545

SEAL KIT

Services Ref 12, 87551260

1шт.

25

87553549

SEAL KIT

Services Ref 12, 87551260

1шт.

25

87487171

SEAL KIT

Services Ref 12, 87486196, MY 2008 and follow

1шт.
