Запчасти Case IH DH182 (20.07.07[02]) - STEEL LINES, SINGLE SWATH, 18FT, FROM PIN YAZB01204 (07) - HYDRAULICS

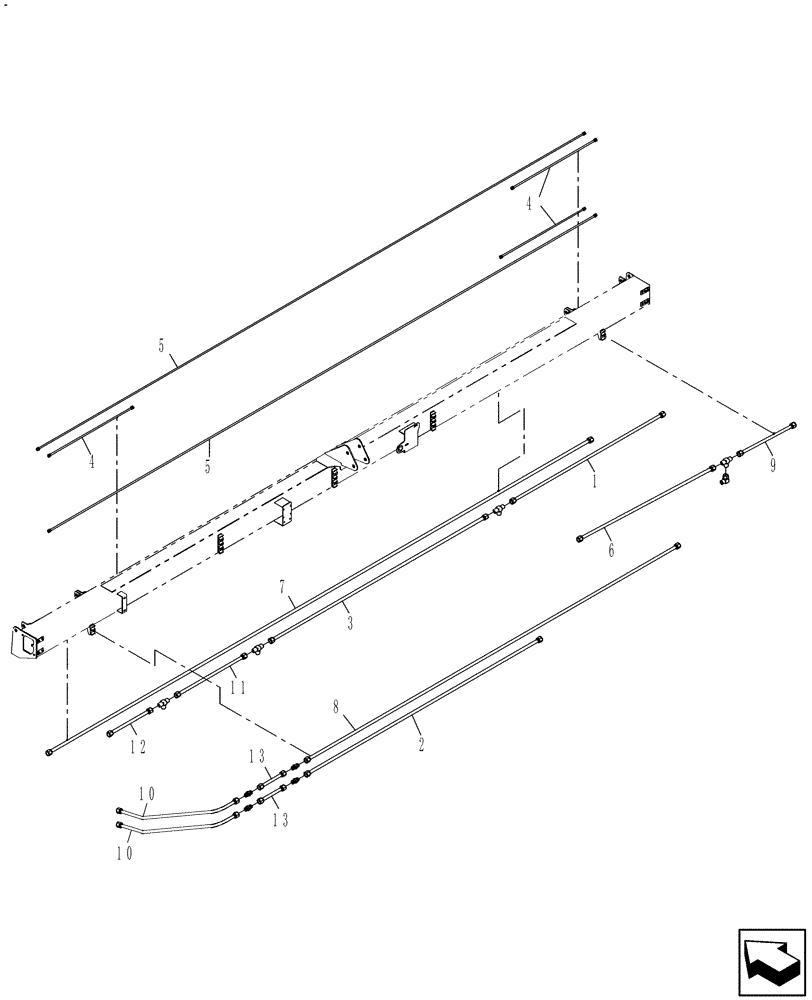

Схема запчастей Case IH DH182 - (20.07.07[02]) - STEEL LINES, SINGLE SWATH, 18FT, FROM PIN YAZB01204 (07) - HYDRAULICS
4
4
9
5
13
1
8
10
7
2
5
12
13
6
10
3
11

Артикул

Название

Примечание

Количество

1

87058335

HYD TUBE,0.75" DIA x 54" L

3/4" x 54"

1шт.

2

87546412

HYD TUBE,.75" DIA x 84" L

3/4" x 84"

1шт.

3

87052002

HYD TUBE,0.75" DIA x 77" L

3/4" x 77"

1шт.

4

84330678

HYD TUBE

3/8" x 30"

3шт.

5

87025692

HYD TUBE,0.375" DIA x 198" L

3/8" x 198"

2шт.

6

84330677

HYD TUBE

3/4" x 48"

1шт.

7

86593940

HYD TUBE

3/4" x 196"

1шт.

8

86592556

HYD TUBE

3/4" x 21"

1шт.

9

86592555

HYD TUBE

3/4" x 19"

1шт.

10

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

11

86976057

HYD TUBE,0.75" ID x 24.00" L

3/4" x 24"

1шт.

12

87025538

HYD TUBE,0.75" DIA x 14" L

3/4" x 14"

1шт.

13

87056818

HYD TUBE,0.75" DIA x 8" L

3/4" x 8"

2шт.

Выбрано товаров: 13
