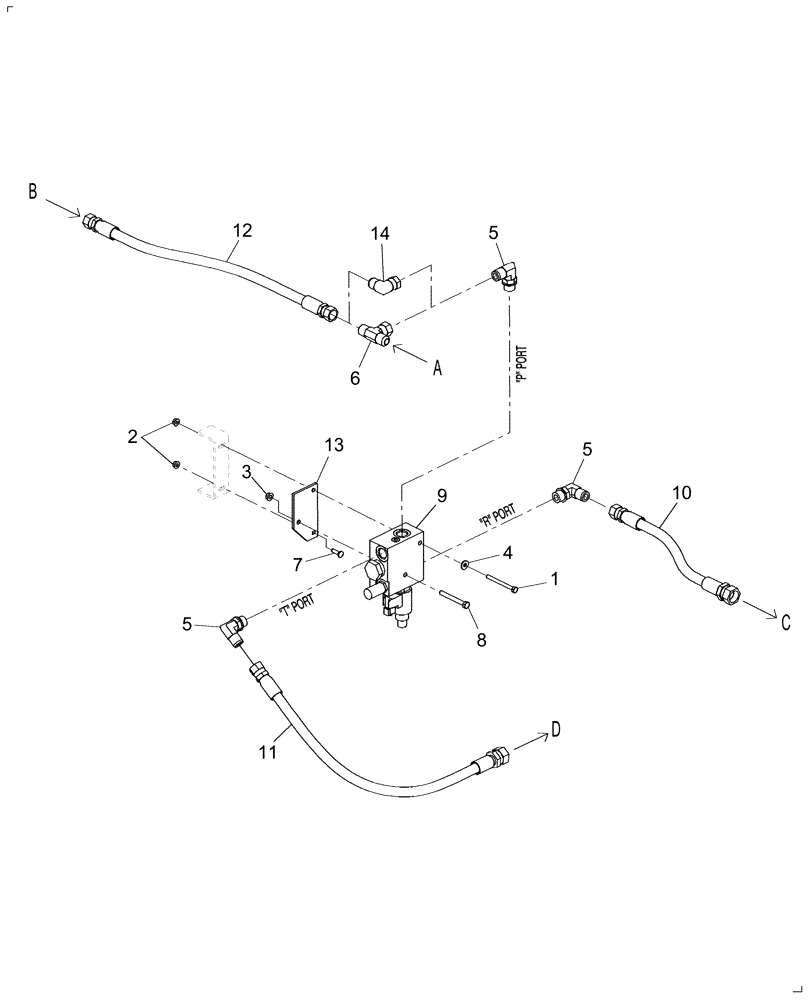

Запчасти Case IH DH182 (20.07.03[4]) - HYDRAULICS, REEL SYNCHRONIZATION (07) - HYDRAULICS

1

280317

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1шт.

2

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

3

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

4

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

5

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

3шт.

6

86513016

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

1шт.

7

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

1шт.

8

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

9

87483152

VALVE

Reel Synchronization

1шт.

10

87045083

HYDRAULIC HOSE,14.00"

HH08, 10FJX x 12FJX

1шт.

11

84208199

HOSE

HH08, 10FJX x 12FJX

1шт.

12

84208200

HOSE

HH08, 10FJX x 10FJX

1шт.

13

84208198

BRACKET

1шт.

14

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.
