Запчасти Case IH DH182 (20.07.02) - MOTOR & HOSES, DOUBLE KNIFE DRIVE (07) - HYDRAULICS

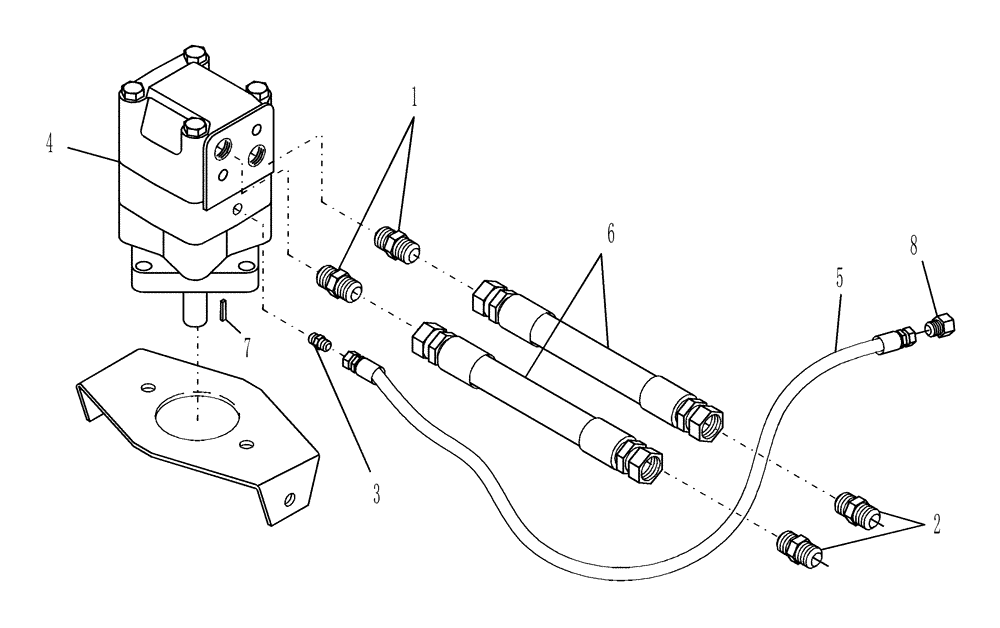

Схема запчастей Case IH DH182 - (20.07.02) - MOTOR & HOSES, DOUBLE KNIFE DRIVE (07) - HYDRAULICS
5
3
8
7
2
4
1
6

Артикул

Название

Примечание

Количество

1

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

(2) Single Drive, (4) Double Drive

1шт.

2

86563521

HYD CONNECTOR

Nipple, (2) Single Drive, (4) Double Drive

1шт.

3

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

1шт.

4

84297724

HYDRAULIC MOTOR

White 104-4178-006, (1) Single Drive, (2) Double Drive

1шт.

4

84297724R

REMAN-HYD MOTOR

DH182, DH362, DH212, DH252, DH302 all (1/09-)

1шт.

4

84297724C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

4a

87495627

SEAL KIT

For Ref 4 Motor

1шт.

5

87052183

HOSE ASSY.

1/4" x 62"

1шт.

6

86705078

HYDRAULIC HOSE,0.75" ID x 17.00"

(2)Single Drive, (4) Double Drive, 3/4" x 17"

1шт.

7

87482

KEY

Sq, 5/16" x 1-1/4"

1шт.

6

84391398

HYDRAULIC HOSE,19.05mm ID x 457.2mm L

3/4" x 18", Start Serial: YAZB01204

1шт.

8

86563543

ADAPTER

6MJ x 12FJ

1шт.

To Return

1шт.

Выбрано товаров: 13
