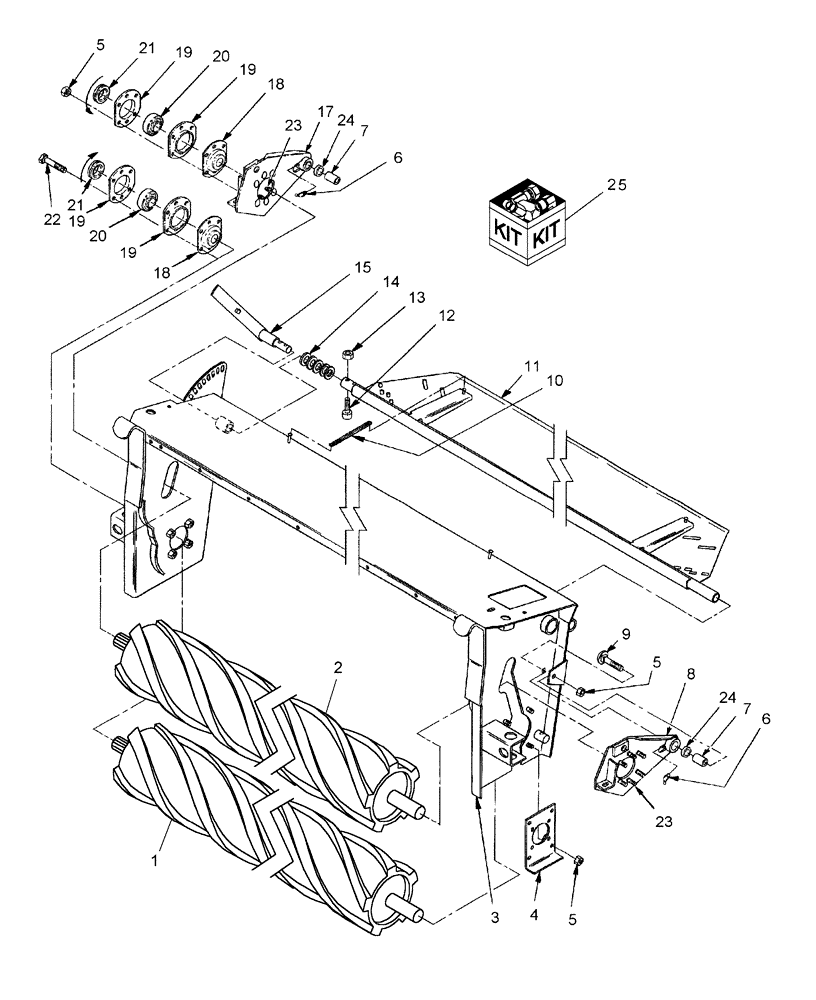

Запчасти Case IH RDX181 (20.15.05[01]) - CONDITIONING ROLLS, PRIOR TO PIN Y7B667799 (15) - CROP CONDITIONING

1

86610313

ROLL

Steel, Lower

1шт.

DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

1

86610945

ROLLER ASSY.

Spiral Rubber, Lower

1шт.

DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

1

87379267

ROLL

Lower, Spiral J, Hi Contact

1шт.

See Also: Ref. 26

1шт.

2

86610314

ROLL

Steel, Upper

1шт.

DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

2

86610941

ROLLER ASSY.

Spiral Rubber, Upper

1шт.

DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

2

87379254

ROLL

Upper, Spiral J, Hi Contact

1шт.

See Also: Ref. 26

1шт.

3

87028163

HEAD ASSY.

1шт.

4

86633048

MOUNTING PLATE

1шт.

5

425-288

FLANGE NUT,Flg, 1/2"-13, G5

18шт.

6

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

7

9849929

SPACER

2шт.

8

87022623

ARM ASSY.

Includes: Ref. 23 & 24

1шт.

9

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

10

510362

SPRING

2шт.

11

87048977

TAILGATE

1шт.

12

61-35032

HEX SOC SCREW,1/2"-13 x 2"

2шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

2шт.

14

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

(Flat, 1-1/8" ID)

1шт.

15

86633031

HANDLE

1шт.

16

Reference Not Used

1шт.

17

87022624

BRUSH ASSY.

Arm, Roll, Includes: Ref. 23 & 24

1шт.

18

86633047

SHROUD

4шт.

19

86629969

FLANGE

8шт.

20

B92630

BEARING

4шт.

21

45393

COLLAR

4шт.

22

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

23

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

12шт.

24

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

1-3/16"x 1-7/16"x 3/4"

4шт.

25

W0

ORDER WHOLEGOODS

Hi Contact Roll Kit; Includes: (1) Upper & (1) Lower Roll

1шт.

Order through wholegoods

1шт.

26

86607882

TUBE,115 mm L

2шт.

Not Illustrated

1шт.

Use Existing Hardware

1шт.

For Use W/Hi Contact Rolls

1шт.
