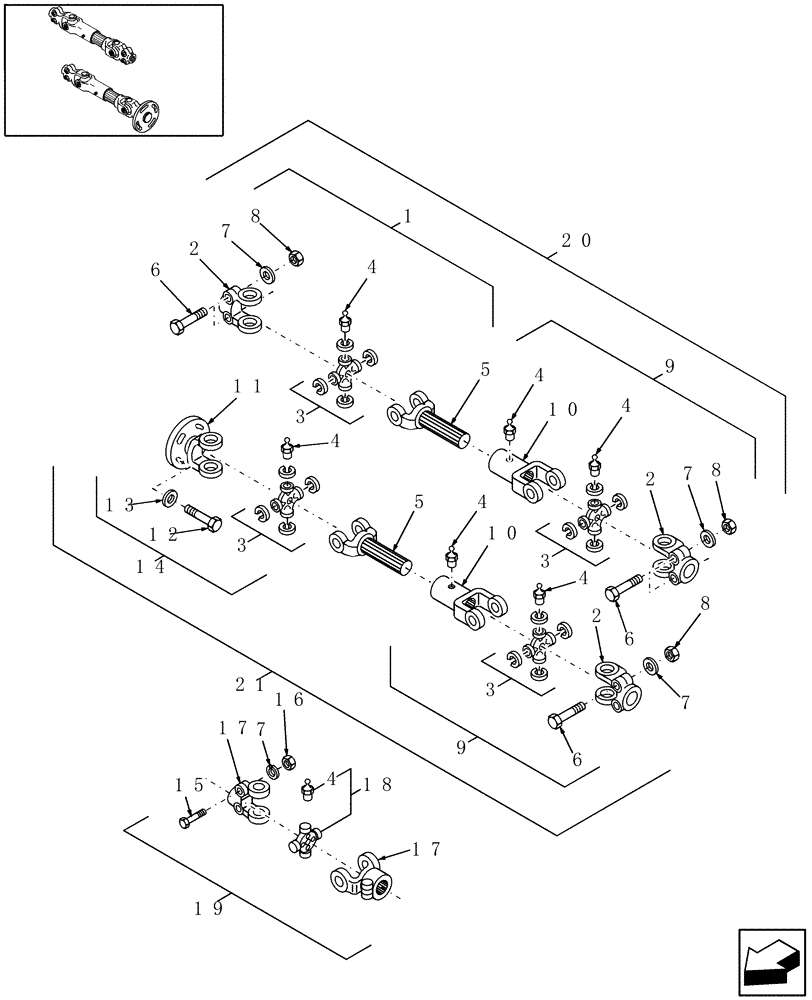

Запчасти Case IH RDX181 (20.15.03[01]) - CONDITIONER DRIVE SHAFTS (15) - CROP CONDITIONING

1

86571222

PTO

Yoke & Shaft, Includes: Ref. 2 - 5

1шт.

2

86507085

YOKE

3шт.

3

9847253

BEARING ASSY

Includes: Ref. 4

4шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

5

86571226

YOKE

2шт.

6

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

6шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

8

425-118

NUT,1/2"-20, G5

6шт.

9

86571224

PTO

Includes: Ref. 2 - 4, & 10

2шт.

10

86571225

YOKE

2шт.

11

86533168

YOKE

Flange

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

13

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

14

86571223

PTO

Flange Yoke & Shaft, Includes: Ref. 3, 5, & 11

1шт.

15

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

16

425-108

NUT,1/2" - 13, Gr 5

2шт.

17

87027863

YOKE

& Clamp

2шт.

18

86520904

BEARING ASSY

Spider, Includes: Ref. 4

1шт.

19

87033945

KIT

Joint, Includes: 15 (4), 16 (4), 17 (2) & 18

1шт.

20

86595840

PTO

Includes: Ref. 1, 2, 3, 5, 9, & 10

1шт.

21

86595841

PTO

Includes: Ref. 2, 3, 5, 9, 10, 11, & 14

1шт.
