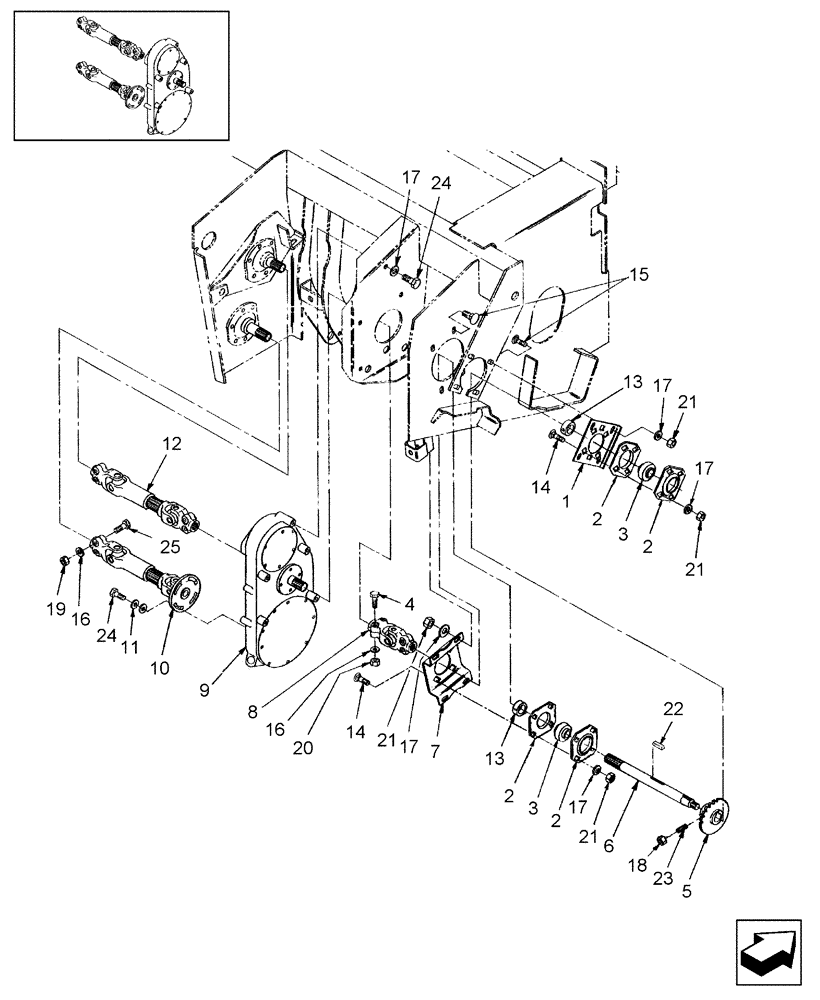

Запчасти Case IH RDX181 (20.15.02) - CONDITIONER GEARBOX DRIVE MOUNTING (15) - CROP CONDITIONING

1

86633554

PLATE

1шт.

2

848286

FLANGE

4шт.

3

B92630

BEARING

2шт.

4

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

4шт.

5

86611314

DRIVING SPROCKET

13T, RC80 Chain

1шт.

6

86601761

SHAFT

1шт.

7

86633555

SHEET

1шт.

8

87033945

KIT

U-Joint, See Figure 20.15.03[01]

1шт.

9

87012679

GEARBOX

See Figure 20.15.04[01]

1шт.

9

87012679R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

9

87012679C

CORE-GEARBOX

Return Number, Gearbox

1шт.

10

86595841

PTO

See Figure 20.15.03[01]

1шт.

11

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(1/2")

8шт.

12

86595840

PTO

See Figure 20.15.03[01]

1шт.

13

45393

COLLAR

2шт.

14

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

8шт.

15

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

8шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

17

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

21шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

425-118

NUT,1/2"-20, G5

6шт.

20

425-108

NUT,1/2" - 13, Gr 5

4шт.

21

425-288

FLANGE NUT,Flg, 1/2"-13, G5

16шт.

22

224132

KEY

5/16" Sq x 2"

1шт.

23

80435

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

2шт.

24

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

9шт.

25

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

6шт.
