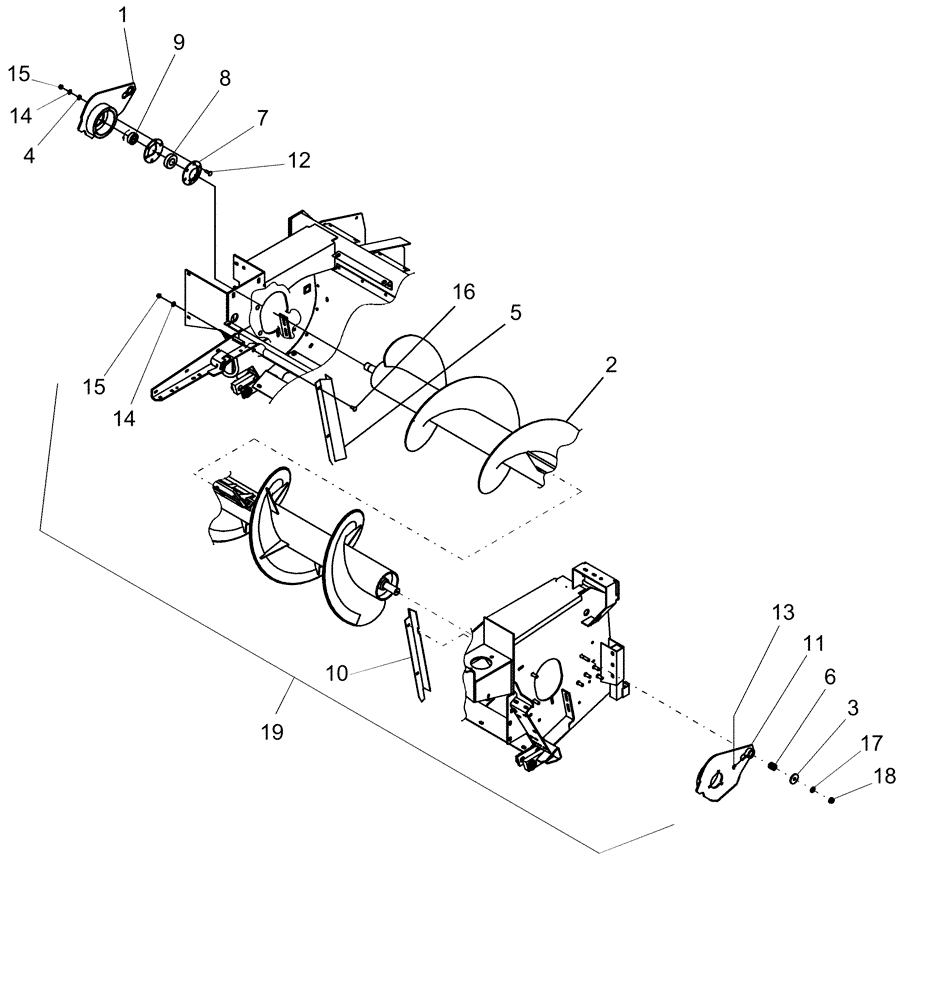

Запчасти Case IH RDX181 (20.14.06[04]) - AUGER FIELD KIT (15) - CROP CONDITIONING

1

87582156

ARM

RH, Includes Ref. 2

1шт.

1

84346262

ARM

RH, Includes Ref. 2, Replaces 87582156

1шт.

2

0C

ORDER COMPONENTS

Auger; See Fig. 20.14.06[03]

1шт.

3

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

4

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

5

87594432

DEFLECTOR

1шт.

6

86637375

BUSHING,13.5mm ID x 28.57mm OD x 27.8mm L

2шт.

7

86635012

FLANGE

4шт.

8

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

9

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

10

87594431

DEFLECTOR

1шт.

11

87582155

ARM

LH, Includes Ref. 2

1шт.

11

84346241

ARM

LH, Includes Ref. 2, Replaces 87582155

1шт.

12

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

6шт.

13

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

15

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

10шт.

16

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

17

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

18

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

19

87639949

CONVERSION KIT

6" Auger; Includes: Ref.s 1 Thru 18

1шт.
