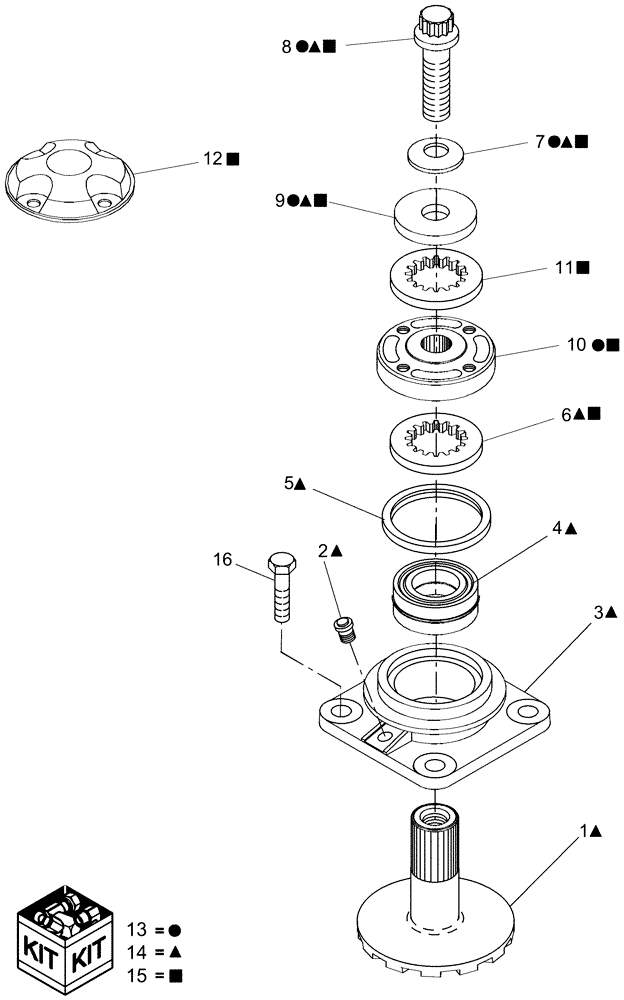

Запчасти Case IH RDX181 (20.14.05[04]) - TOP CAP, SHOCK HUB, PIN Y7B667799 AND AFTER (14) - CROP CUTTING

1

NSS

NOT SOLD SEPARAT

Gear, 25T

1шт.

2

572820

BREATHER

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

NSS

NOT SOLD SEPARAT

Bearing

1шт.

5

9849587

OIL SEAL,50.72mm ID x 63.73mm OD x 6.73mm Thk

1шт.

6

87376403

SEAL

Hub

1шт.

7

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

1шт.

8

87579665

BOLT,5/8" - 11 x 1-3/4"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1 3/4", Locking Patch

1шт.

MY2010

1шт.

9

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

10

NSS

NOT SOLD SEPARAT

Hub, Shock

1шт.

11

87376405

LOCK WASHER,28.68mm ID x 56mm OD x 6.35mm Thk

Splined

1шт.

12

87581143

CAP

Ref 20 on Figure 20.14.03[2]

1шт.

13

87580643

REPAIR KIT

Shock Hub

1шт.

14

87753842

REPAIR KIT

Kit, Repair

1шт.

15

87602273

REPAIR KIT

Shock Protect Refit

1шт.

16

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

Not Included in Kit

4шт.
