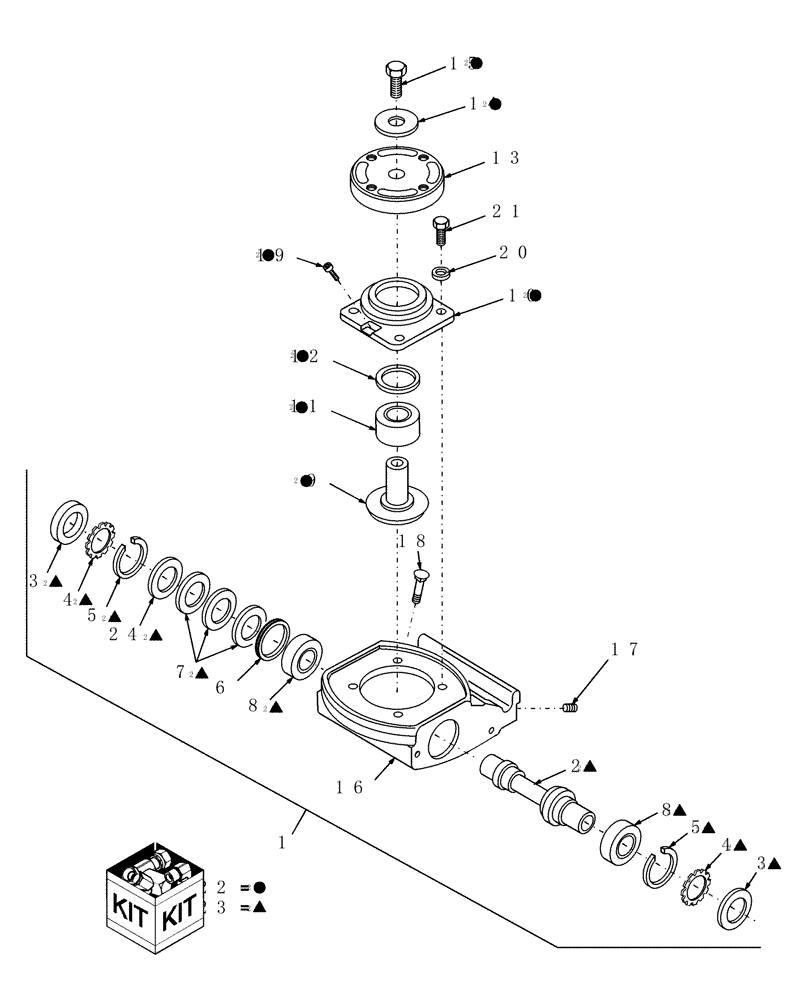

Запчасти Case IH RDX181 (20.14.05[01]) - CLOCKWISE & COUNTERCLOCKWISE MODULES, BPIN Y7B667799 (14) - CROP CUTTING

1

86525821

GEARBOX

Module, CW, Includes: Ref. 2 - 6, 8, 16 - 18, 20, 21, & 24

1шт.

1

84220789R

REMAN-GEARBOX

RDX131, RDX181, Both Before P.I.N. Y7B667799, Reman For New P/N's 86525851 & 84220789

1шт.

1

84220789C

CORE-GEARBOX

Return Number

1шт.

1

86525822

GEARBOX

Module, CCW, Includes: Includes: Ref. 2 - 6, 8, 16 - 18, 20, 21, & 24

1шт.

1

84220790R

REMAN-GEARBOX

RDX131, RDX181, Both Before PIN Y7B667799, Reman For New P/N's 86525822 & 84220790

1шт.

1

84220790C

CORE-GEARBOX

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

PINION, 14T

1шт.

3

86511201

SEAL

2шт.

4

86515894

SLINGER

2шт.

5

86508784

SNAP RING

2шт.

6

783467

SPACER

2шт.

7

122271

SHIM,.003" Thk

1шт.

7

122272

SHIM,.005" Thk

1шт.

7

122273

SHIM,.007" Thk

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing

2шт.

9

NSS

NOT SOLD SEPARAT

Gear, 25T

1шт.

10

NSS

NOT SOLD SEPARAT

Cap

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing

1шт.

12

9849587

OIL SEAL,50.72mm ID x 63.73mm OD x 6.73mm Thk

1шт.

13

86629692

HUB

1шт.

14

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

15

86600611

PREV TORQUE BOLT,12 Pt Flg, 5/8" - 11 x 1.50"

1шт.

16

87044115

HOUSING

1шт.

17

86568834

PLUG,1/4" - 18 NPT

Pipe, Hex Head

1шт.

18

86506262

DIPSTICK

1шт.

19

572820

BREATHER

1шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

22

86633623

CAP

Top

1шт.

23

86633622

KIT

Pinion

1шт.

Use shims, Ref. 7 in place of Ref. 6 to adjust end play. Shims are installed between washers, Ref. 12

1шт.

24

86524423

WASHER

1шт.

Two washers are included with Pinion Kit, Ref. 13.

1шт.
