(20.14.04[01]) - CUTTERBAR DRIVE SHAFTS

Запчасти Case IH RDX181 (20.14.04[01]) - CUTTERBAR DRIVE SHAFTS (14) - CROP CUTTING

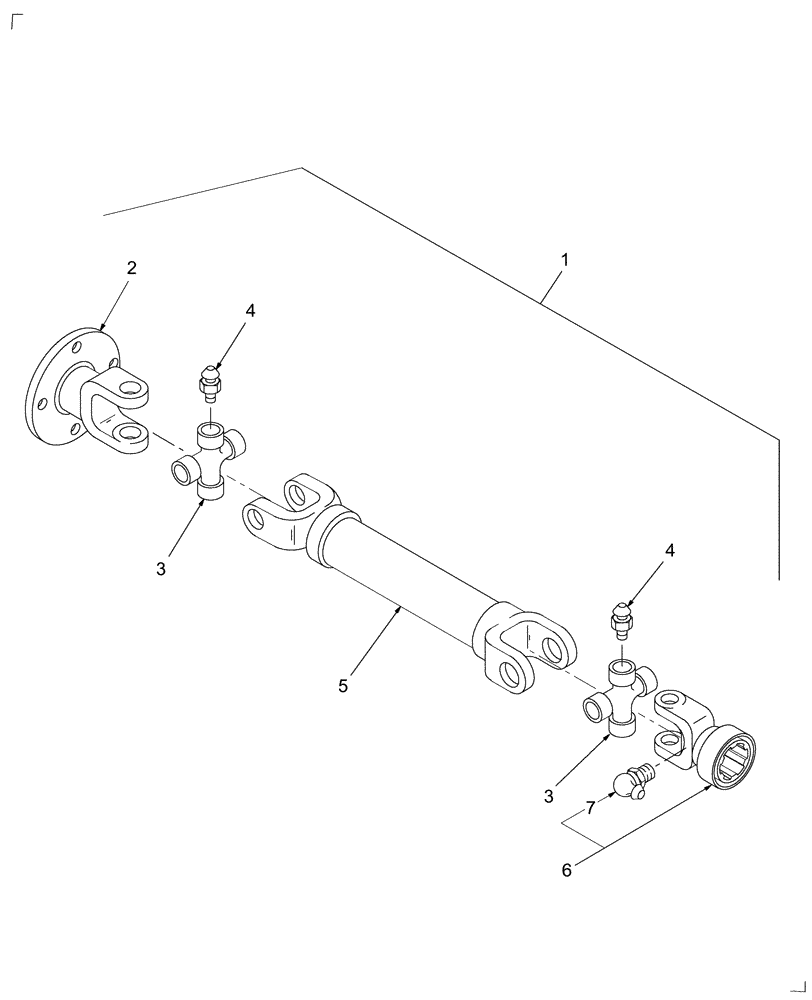

Схема запчастей Case IH RDX181 - (20.14.04[01]) - CUTTERBAR DRIVE SHAFTS (14) - CROP CUTTING
4
1
3
3
2
7
5
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87519705

PTO

Drive, Includes: Ref. 2 - 7

1шт.

2

86585339

YOKE

1шт.

3

86515563

BEARING ASSY,27.03mm Cap Dia, 63.75mm L

Cross & Bearing. Includes: Ref. 4

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

2шт.

5

86585340

YOKE

& Shaft

1шт.

6

86623800

YOKE

1шт.

7

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

Выбрано товаров: 7
