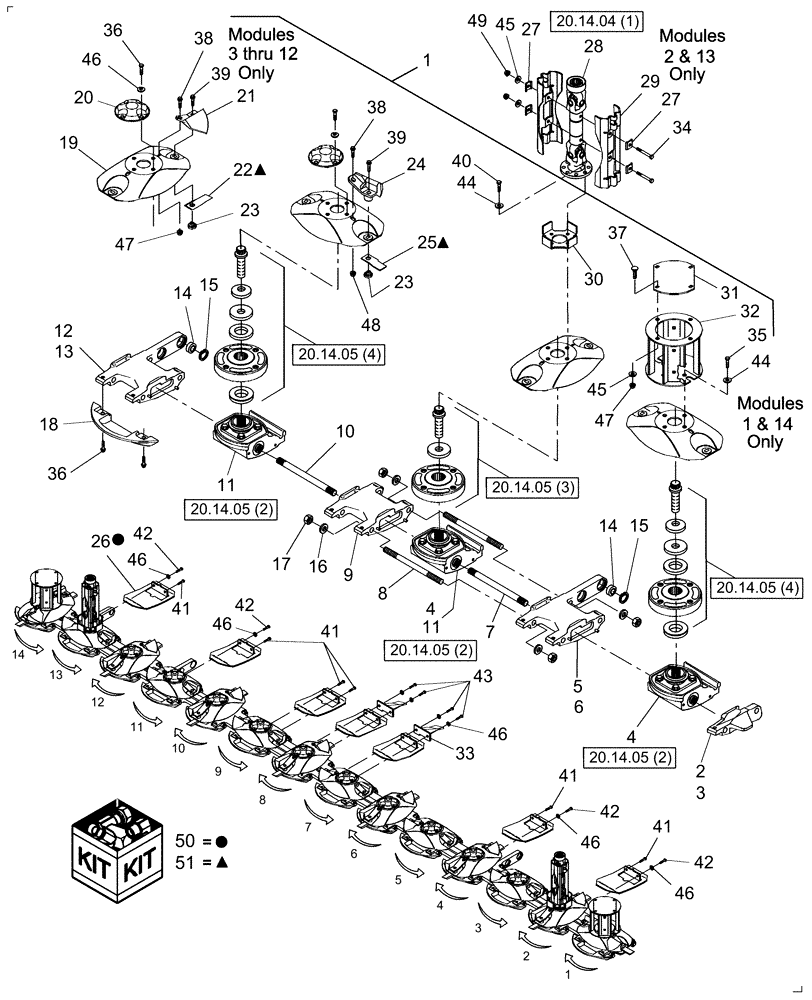

Запчасти Case IH RDX181 (20.14.03[02]) - CUTTERBAR, 14 DISC, SHOCK HUBS, PIN Y7B667799 AND AFTER (14) - CROP CUTTING

1

87656573

CUTTERBAR

1шт.

2

86629691

ARM

LH

1шт.

3

86629690

ARM

RH

1шт.

4

0C

ORDER COMPONENTS

CW Module, Standard Hub Module 2 & 13 Only

7шт.

5

86581316

SPACER

LH; Width = 220 MM

1шт.

6

86581318

SPACER

RH; Width = 220 MM

1шт.

7

86519039

SHAFT

268mm

2шт.

8

86501934

THREADED ROD

28шт.

9

87044107

SPACER

9шт.

10

86519042

SHAFT

248mm

11шт.

11

0C

ORDER COMPONENTS

CCW Module, Standard Hub Module 2 & 13 Only

7шт.

12

86531774

SPACER

LH

1шт.

13

86531772

SPACER

RH

1шт.

14

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

8шт.

15

271429

SNAP RING,1.625", Int, #162

8шт.

16

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

56шт.

17

86518194

NUT,3/4"-10, G8

56шт.

18

87047845

STONEGUARD

14шт.

19

87646406

DISC

14шт.

20

87581143

CAP

Also See Figure 20.14.05[04] Ref 12

10шт.

21

87528245

KIT

Lifter, CW, Includes: (2) Lifters, Hardware & Instructions

14шт.

22

86621872

BLADE

CW, 14° Twist

14шт.

Standard equipment.

1шт.

22

87029587

BLADE

CW, 14° Twist, Serrated

14шт.

22

9847683

BLADE,Knife CW

CW, 7° Twist

14шт.

22

86532078

KNIFE

No Twist

14шт.

23

87725066

NUT

28шт.

24

87528249

KIT

Lifter, CCW, Includes: (2) Lifters, Hardware & Instructions

14шт.

25

86621873

BLADE

CCW, 14° Twist

14шт.

Standard equipment.

1шт.

25

87029588

BLADE

CCW, 14° Twist, Serrated

14шт.

25

9847684

BLADE,Knife CCW

CCW, 7° Twist

14шт.

26

87047426

SKID/SHOE

14шт.

26

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

14шт.

26

87622885

SHOE

Hi Stubble

8шт.

27

NSS

NOT SOLD SEPARAT

Reinforcement

8шт.

28

87519705

PTO

2шт.

29

84260963

KIT

Tall Drum, Inc: 27, 34, 45 & 49

2шт.

Drum Halves and Reinforcements are not Serviced Separately

1шт.

29

84469547

KIT

Tabbed Tall Drum, Inc: 27, 34, 45 & 49

2шт.

Replaces 84260963, Drum Halves NSS

1шт.

30

86629689

DISC

2шт.

31

86631895

COVER

2шт.

32

87040772

DRUM

2шт.

33

86632774

STOP

2шт.

34

280464

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

4шт.

35

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

36

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

68шт.

37

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

38

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

28шт.

39

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

28шт.

40

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

41

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

20шт.

42

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

43

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

4шт.

44

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

16шт.

45

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

46

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

48шт.

47

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

48

86544265

FLANGE NUT,Flg, 1/2"-13, G8

28шт.

49

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

50

715289026

DIA KIT, HARVESTER

High Stubble, Includes [8] Ref 26 & Instructions

1шт.

51

86624751

KNIFE SET

Includes (10) Ref 22, 14° CW Blades, & (10) Ref 25, 14° CCW Blades

1шт.

51

86624752

KNIFE SET

Includes (16) Ref 22, 14° CW Blades, & (16) Ref 25, 14° CCW Blades

1шт.

51

87037027

SET OF BLADES

Includes (16) Ref 22, 14° CW Serr. Blades, & (16) Ref 25, 14° CCW Serr. Blades

1шт.
