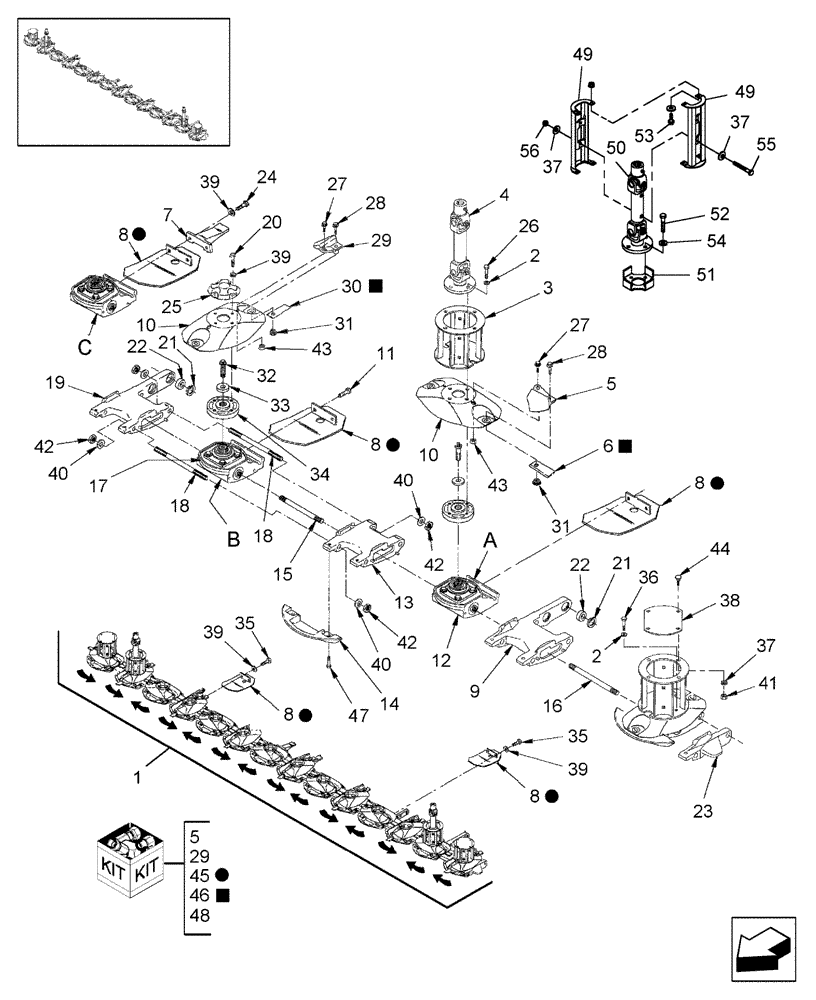

Запчасти Case IH RDX181 (20.14.03[01]) - CUTTERBAR, 14 DISC, NON SHOCK HUBS, BPIN Y7B667799 (14) - CROP CUTTING

1

87025642

KIT

Cutterbar, Complete, W/Ref 50, See Figure Note

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

16шт.

3

87040772

DRUM

1шт.

Prior To PIN HCA0035111 (4), From PIN HCA0035111 (2)

1шт.

4

87026974

SHAFT

For Component Breakdown, See Fig. 20.14.04[01]

2шт.

Prior To PIN HCA0035111

1шт.

5

87040840

KIT

MISC, Lifter, CW, Kit, Includes: (2) Lifters, Hardware & Instructions

7шт.

6

9847683

BLADE,Knife CW

CW, 7° Twist

14шт.

6

86621872

BLADE

CW, 14° Twist, Standard Equipment

14шт.

6

87029587

BLADE

CW, 14° Twist, Over-serrated

14шт.

6

86532078

KNIFE

"V"

28шт.

7

86632774

STOP

2шт.

8

86572263

SKID/SHOE

[Welded Skid Shoe], See Figure Note

14шт.

Prior To MY2006

1шт.

8

87047426

SKID/SHOE

[Formed Skid Shoe], See Figure Note

14шт.

From MY 2006

1шт.

8

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

14шт.

8

86630488

SHOE

Skid, High Stub

14шт.

9

86581318

SPACER

RH; Width = 220 MM

1шт.

Not Shown

1шт.

9

86581316

SPACER

LH; Width = 220 MM

1шт.

10

87040895

DISC

14шт.

11

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

12

0C

ORDER COMPONENTS

Module, Control, CW; Refer To Fig. 20.14.05

7шт.

13

86506032

SPACER

Includes: Groove Pins

9шт.

13

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

36шт.

14

86565383

GUARD

Stone

14шт.

Prior To MY2006

1шт.

14

87047845

STONEGUARD

See Figure Note

14шт.

From MY 2006

1шт.

15

86519042

SHAFT

L = 248mm

11шт.

15

132096A1

GREASE

1шт.

16

86519039

SHAFT

L = 268mm

2шт.

17

0C

ORDER COMPONENTS

Module, Control, CCW; Refer To Fig. 20.14.05

7шт.

18

86501934

THREADED ROD

28шт.

19

86531774

SPACER

LH; Width = 200 MM

1шт.

19

86531772

SPACER

RH; Width = 200 MM

1шт.

Not Shown

1шт.

20

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

40шт.

21

100-21162

SNAP RING,1.625", Int, #162

8шт.

22

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

8шт.

23

86629691

ARM

LH

1шт.

23

86629690

ARM

RH

1шт.

Not Shown

1шт.

24

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

25

9828165

CAP

See Figure 20.14.05[03]

10шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

27

87040886

BOLT

Flg, Lock, G8, 1/2"-13 x 1-1/4"

28шт.

28

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

28шт.

29

87040841

KIT

Lifter, CCW, Includes: (2) Ref. 6, 7, 10, 20, Two Lifters, & Instructions

7шт.

30

9847684

BLADE,Knife CCW

CCW, 7° Twist

14шт.

30

86621873

BLADE

CCW, 14° Twist, Standard Equipment

14шт.

30

87029588

BLADE

CCW, 14° Twist, Over-serrated

14шт.

30

86532078

KNIFE

"V"

28шт.

31

87053834

NUT

Knife

28шт.

31

87725066

NUT

Knife, Start Year: 01-APR-06

28шт.

32

86600611

PREV TORQUE BOLT,12 Pt Flg, 5/8" - 11 x 1.50"

14шт.

33

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

Hardened, Special, M16

14шт.

34

86629692

HUB

14шт.

35

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

36

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

38

86631895

COVER

2шт.

39

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

46шт.

40

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

56шт.

41

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

42

429-1012

NUT,3/4"-10, G8

56шт.

43

86544265

FLANGE NUT,Flg, 1/2"-13, G8

Flg, G8, 1/2"-13

28шт.

44

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

45

715289026

DIA KIT, HARVESTER

Kit, Hi Stubble; Includes: (8) of Ref. 8 and Instructions

1шт.

46

86624751

KNIFE SET

Includes (10) Ref. 6, 14° CW Blades, & (10) Ref. 30, 14° CCW Blades

1шт.

46

86624752

KNIFE SET

Includes (16) Ref. 6, 14° CW Blades, & (16) Ref. 30, 14° CCW Blades

1шт.

47

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

28шт.

48

87056499

SHIM KIT

Includes: (10) Shims, NSS, & Instructions

1шт.

49

86629688

DRUM

4шт.

From PIN HCA0035111

1шт.

50

87519705

PTO

Driveline; For Component Breakdown, See Fig. 20.14.04[01]

2шт.

From PIN HCA0035111

1шт.

51

86629689

DISC

2шт.

From PIN HCA0035111

1шт.

52

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

53

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

54

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

55

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

4шт.

56

88902

NUT,3/8"-16

4шт.
