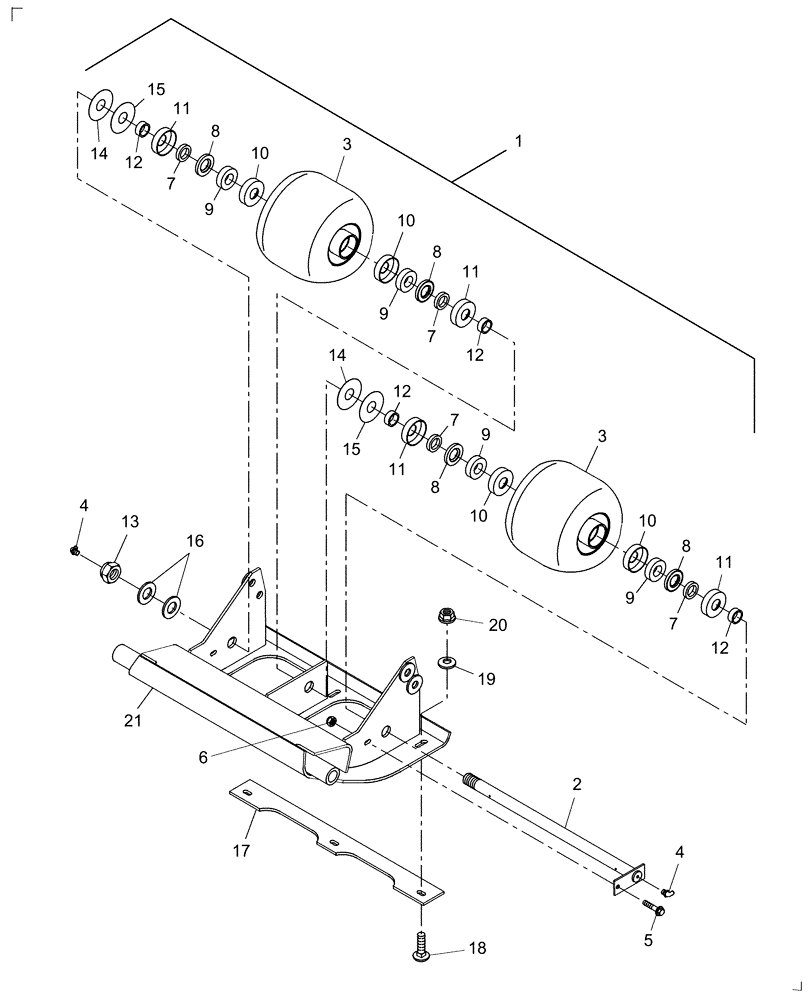

Запчасти Case IH RDX181 (20.11.02) - GAUGE WHEEL (11) - WHEELS

1

86554222

SKID/SHOE

1шт.

2

86554214

AXLE

1шт.

3

762422

ROLLER

2шт.

4

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

5

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

6

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

7

704622

SPACER,25.43mm ID x 31.88mm OD x 12.7mm L

4шт.

8

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

4шт.

9

D29266

ROLLER BEARING,1" ID x 0.58"

4шт.

10

572564R1

BEARING CUP

4шт.

11

612120

COVER

4шт.

12

86629737

SPACER

4шт.

13

231-41416

NUT,1"-8, GB

1шт.

14

9842039

RING

1" ID, 2.90" OD x .014"/.010" Thk

1шт.

15

9842040

SPACER

1" ID, 2.90" OD x .022"/.018" Thk

1шт.

16

495-11106

WASHER,1", SAE

2шт.

17

86578424

SCRAPER TOOL

1шт.

18

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

20

425-286

FLANGE NUT,Flg, 3/8"-16, G5

3шт.

21

86554210

GAUGE

Shoe

1шт.
