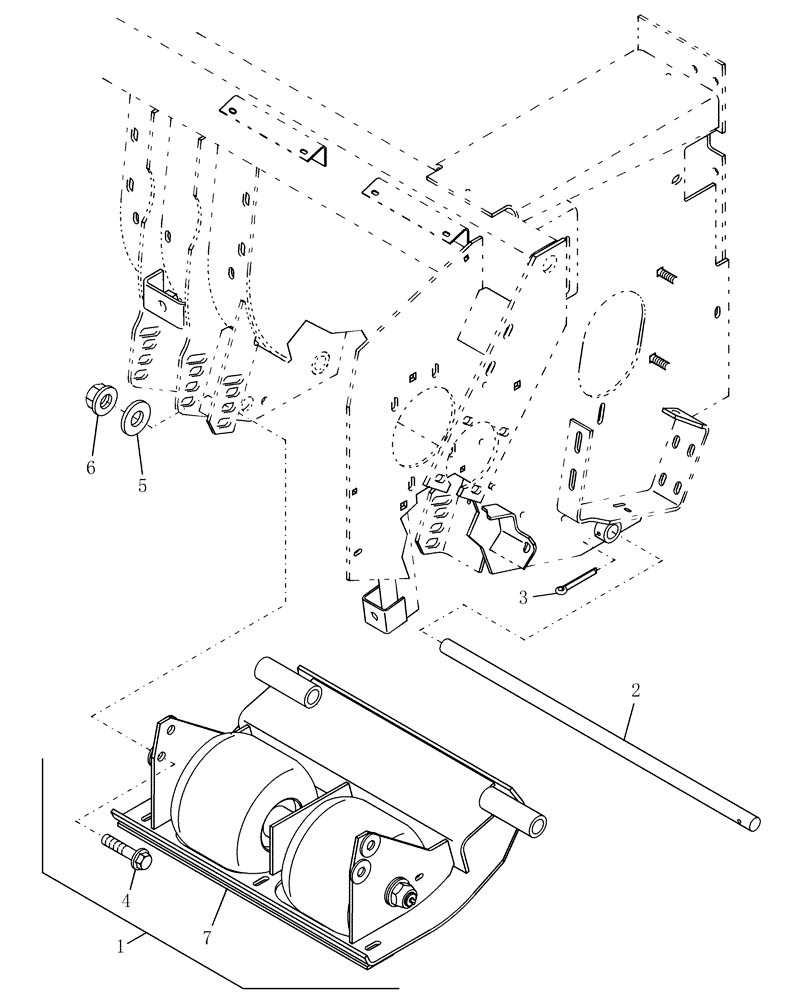

Запчасти Case IH RDX181 (20.11.01) - GAUGE WHEEL MOUNTING (11) - WHEELS

1

715301056

DIA KIT, HARVESTER

Gauge Wheel, Includes: Ref. 2 - 7

1шт.

2

86554217

SHAFT

2шт.

3

432-1640

COTTER PIN,1/4" x 2 1/2"

2шт.

4

86521620

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

5

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

6

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

7

0C

ORDER COMPONENTS

See Fig. 20 11 02

2шт.

87298567

KIT

1шт.
