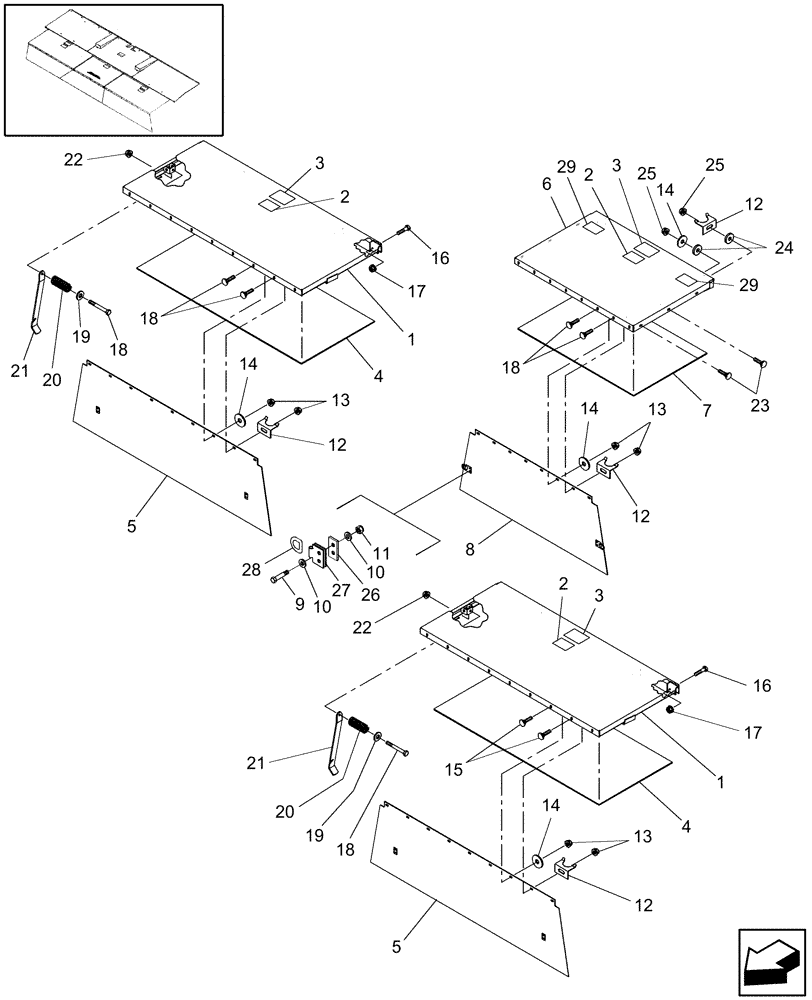

Запчасти Case IH RDX181 (20.08.05) - SHIELDING, CENTER FRONT, PIN Y7B667799 AND AFTER (08) - SHEET METAL

1

86626541

COVER

Includes Ref. 2 & 3

2шт.

2

86611825

WARNING DECAL

WARNING, Slippery Surface

3шт.

3

86628571

WARNING DECAL

Stand Clear

3шт.

4

86582726

LINER

2шт.

5

86532270

RUBBER

Includes Ref. 9,10,11,26,27 & 28

2шт.

6

86626577

COVER

Includes Ref. 2, 3 & 29

1шт.

7

86582725

LINER

1шт.

8

86522269

RUBBER

Includes Ref. 9,10,11,26,27 & 28

1шт.

9

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

10

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

8шт.

11

280129

NUT,1/4"-20

4шт.

12

86582727

CLIP

14шт.

13

145458

SERRATED NUT,5/16"-18 GR 5 ZND

25шт.

14

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

18шт.

15

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

25шт.

16

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

17

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

18

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

20

86628837

SPRING,Compression, 23mm OD x 57.15mm L

2шт.

21

86526613

LATCH

2шт.

22

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

23

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

6шт.

24

86554309

RUBBER WASHER

Rubber

6шт.

25

9823743

FLANGE NUT,Flg, 5/16"-18

6шт.

26

9604628

STRAP

2шт.

27

9604627

STRAP

2шт.

28

9604626

RING

D

2шт.

29

86629146

WARNING DECAL

Close Shield

2шт.
