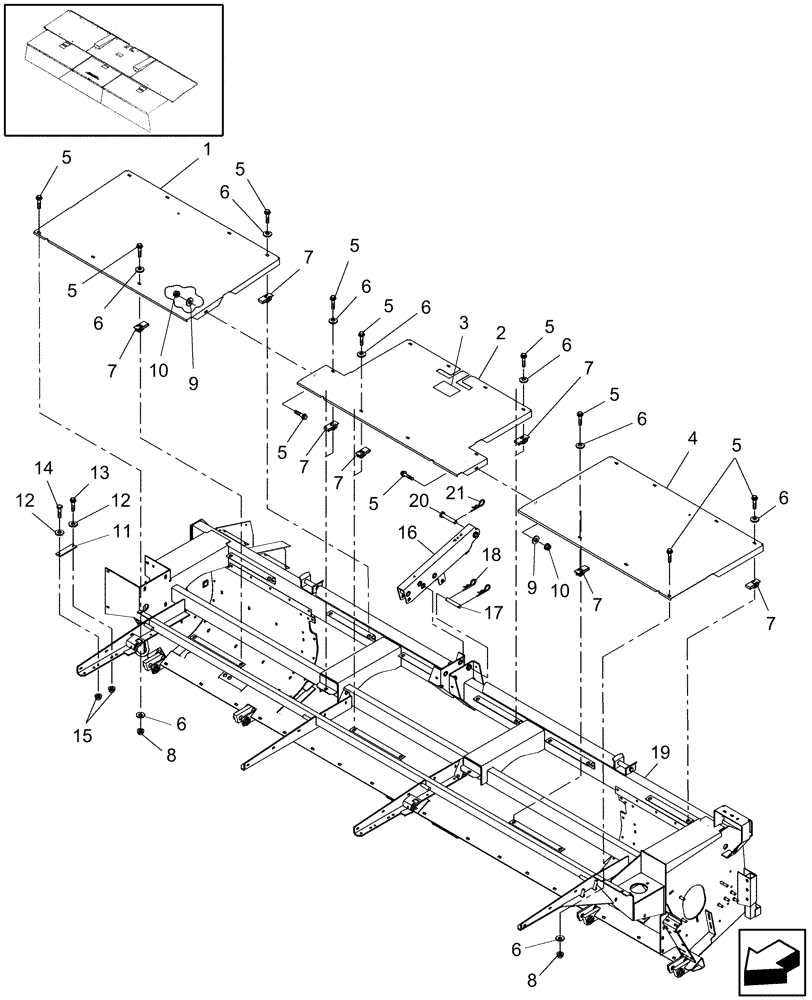

Запчасти Case IH RDX181 (20.08.04) - SHIELDING, CENTER REAR, MAIN FRAME & TOP LINK, PIN Y7B667799 AND AFTER (08) - SHEET METAL

1

86633296

COVER

1шт.

2

86633291

COVER

Includes Ref. 3

1шт.

3

86611825

WARNING DECAL

WARNING, Slippery Surface

3шт.

4

86633294

COVER

1шт.

5

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

24шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

7

86539811

SPRING NUT

Tinnerman, 3/8"-16

20шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

10

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

11

849495

RUBBER PAD

4шт.

12

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

13

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

15

9823743

FLANGE NUT,Flg, 5/16"-18

14шт.

16

87524587

CHANNEL

Short, 25.4" Long

1шт.

17

86596231

PIN

2шт.

18

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

4шт.

19

87622901

FRAME

1шт.

20

84206494

PIN,19.05mm OD x 108.07mm L

98.5 x 19, Headed, HT, GR8

1шт.

21

86000109

COTTER PIN

3-1/4" x 11/64" Dia.

1шт.
