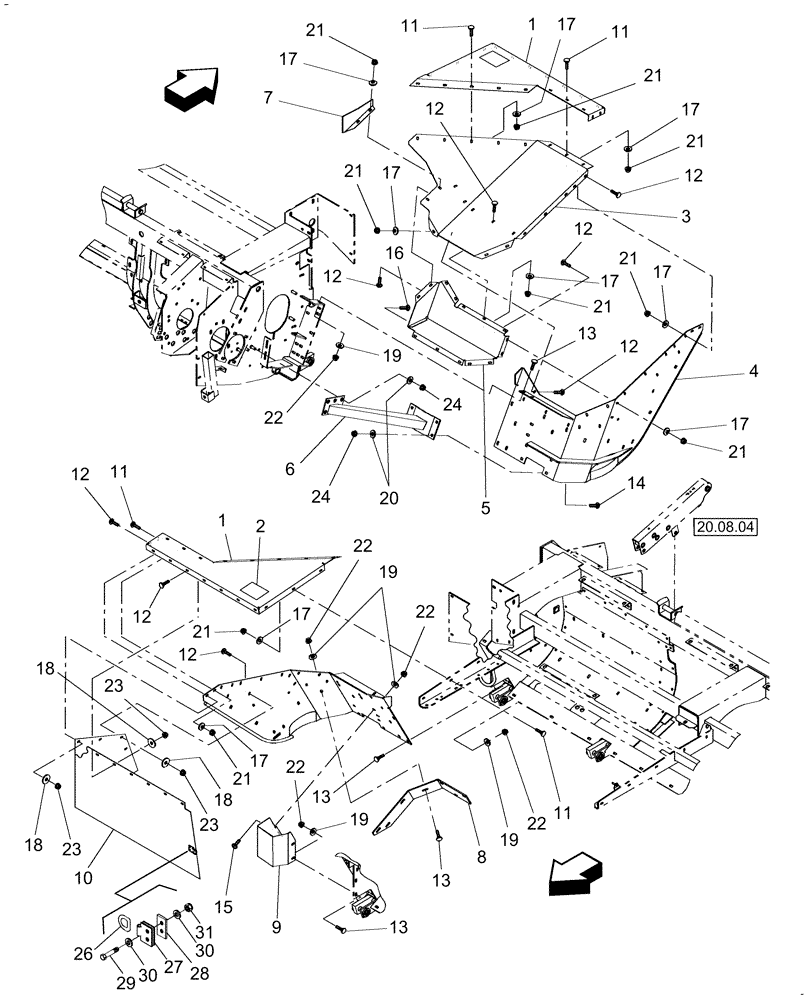

Запчасти Case IH RDX181 (20.08.03[02]) - SHIELDING, RIGHT SIDE, PIN Y7B667799 AND AFTER (08) - SHEET METAL

1

87025483

SHEET

Includes Ref. 2

1шт.

2

86611825

WARNING DECAL

WARNING, Slippery Surface

1шт.

2

86614084

WARNING DECAL

French

1шт.

2

86624655

WARNING DECAL

WARNING, Spanish

1шт.

3

87358434

SHEET METAL

Top Sheet RH, Includes Ref 25

1шт.

4

87370719

SHEET METAL

Side Sheet RH

1шт.

5

87362478

FILLER

1шт.

6

87515044

SUPPORT

1шт.

7

87640051

SHIELD

1шт.

8

87515047

SUPPORT

1шт.

9

87515062

GUIDE

1шт.

10

86567132

PROTECTING COVER

Includes Ref, Serial Range: 26-31

1шт.

11

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

12шт.

12

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

32шт.

13

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

14шт.

14

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

15

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

16

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

34шт.

18

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

11шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

20

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

21

86521605

FLANGE NUT,5/16"-18, Cl 5

34шт.

22

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

23

145458

SERRATED NUT,5/16"-18 GR 5 ZND

11шт.

24

86521607

FLANGE NUT,Flg, 1/2"-13, G5

8шт.

25

80772110

WARNING DECAL

WARNING, Knife Tip Path

1шт.

25

791403

WARNING DECAL

WARNING, Knife Tip Path

1шт.

25

86528619

WARNING DECAL

WARNING, Knife Tip Path

1шт.

26

9604626

RING

1шт.

27

9604627

STRAP

1шт.

28

9604628

STRAP

1шт.

29

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

30

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

31

20356

NUT,1/4"-20, GB

2шт.
