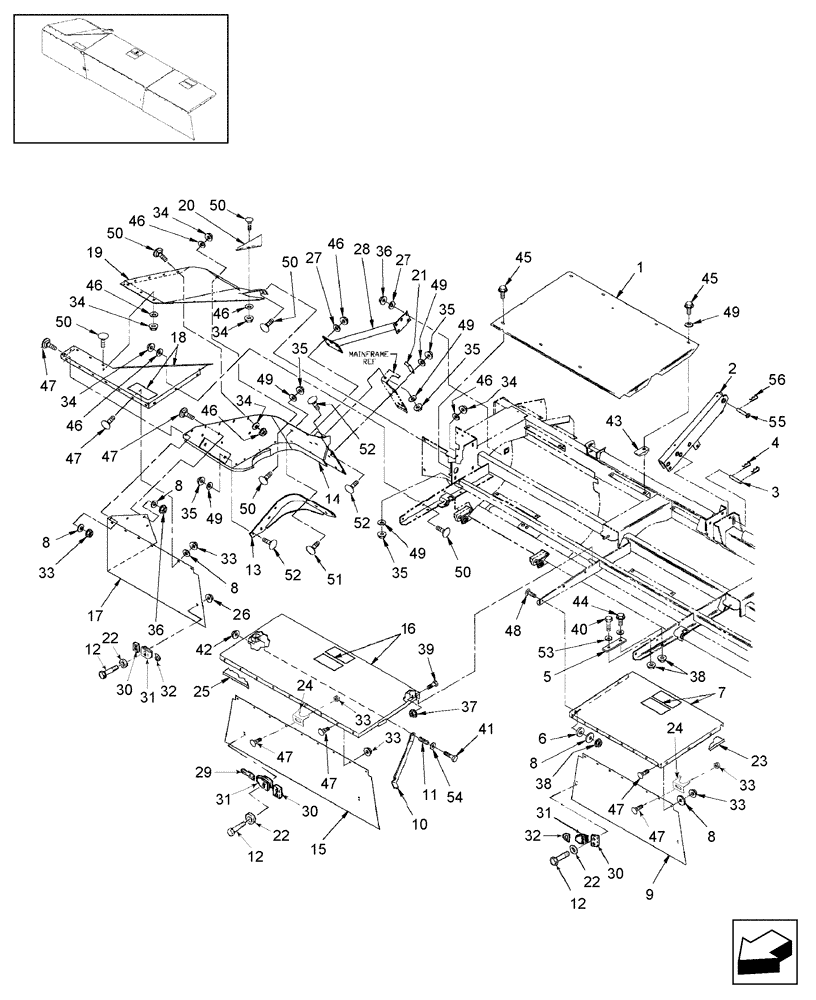

Запчасти Case IH RDX181 (20.08.03[01]) - SHIELDING, RIGHT SIDE, & TOP LINK, BPIN Y7B667799 (08) - SHEET METAL

1

86633296

COVER

1шт.

2

87025475

CHANNEL

1шт.

Prior To TY07

1шт.

2

87524587

CHANNEL

1шт.

From TY07

1шт.

3

86596231

PIN

2шт.

4

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

4шт.

5

849495

RUBBER PAD

4шт.

6

86554309

RUBBER WASHER

Rubber

6шт.

7

87025640

COVER

Includes: Decals (English)

1шт.

7

86611825

WARNING DECAL

WARNING - NO STEP- English

1шт.

7

86614084

WARNING DECAL

NO STEP- French

1шт.

7

86624655

WARNING DECAL

WARNING - NO STEP- Spanish

1шт.

7

86628571

WARNING DECAL

WARNING - Stand Clear- English

1шт.

7

86629518

WARNING DECAL

WARNING - Stand Clear- French

1шт.

7

86629519

WARNING DECAL

WARNING - Stand Clear- Spanish

1шт.

8

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

25шт.

9

86522269

RUBBER

Includes: Ref's 12 (4), 22(8), 26 (4), 30 (2), 31 (2), and 32 (2)

1шт.

10

86526613

LATCH

1шт.

11

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

13

86567290

SUPPORT

1шт.

13

87515047

SUPPORT

1шт.

ASN Y7B667799

1шт.

14

87025415

SHEET ASSY.

Side

1шт.

This BSN Sheet is superceding to ASN Sheet. When updating to new level parts, change ASN supports, Side Sheets also Top Sheet.

1шт.

14

87370719

SHEET METAL

Side (Plastic)

1шт.

15

86532270

RUBBER

Includes: Ref's 12 (4), 22 (8), 26 (4), 29 (2), 30 (2), and 31 (2)

1шт.

16

86626541

COVER

Includes: Decals (English)

1шт.

16

86611825

WARNING DECAL

WARNING - NO STEP- English

1шт.

16

86628571

WARNING DECAL

WARNING - Stand Clear- English

1шт.

17

86567132

PROTECTING COVER

Includes: Ref's 12 (2), 22 (4), 26 (2), 30 (1), and 32 (1)

1шт.

18

87025483

SHEET

Top

1шт.

19

87025482

SHEET

Top

1шт.

This BSN Sheet is superceding to ASN Sheet. When updating to new level parts, change ASN supports, Side Sheets also Top Sheet.

1шт.

19

87358434

SHEET METAL

Top (Plastic), Includes Decal 80772110

1шт.

20

86633315

SHIELD

1шт.

21

87025481

COVER

1шт.

22

495-11028

WASHER,1/4", SAE

20шт.

23

86582725

LINER

1шт.

24

86582727

CLIP

9шт.

25

86582726

LINER

1шт.

26

280129

NUT,1/4"-20

10шт.

27

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.

28

87025477

BRACE

RH

1шт.

28

87515044

SUPPORT

RH

1шт.

ASN Y7B667799

1шт.

29

9604631

SPRING CLIP

Clip

2шт.

30

9604628

STRAP

5шт.

31

9604627

STRAP

5шт.

32

9604626

RING

"D"

3шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

28шт.

34

425-285

FLANGE NUT,Flg, 5/16"-18, G5

21шт.

35

425-286

FLANGE NUT,Flg, 3/8"-16, G5

11шт.

36

425-288

FLANGE NUT,Flg, 1/2"-13, G5

8шт.

37

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

38

231-5345

FLANGE NUT,Flg, 5/16"-18

14шт.

39

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

40

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

41

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

42

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

43

86539811

SPRING NUT

Speed, 3/8"-16

6шт.

44

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

45

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

7шт.

46

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

21шт.

47

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

28шт.

48

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

6шт.

49

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

17шт.

50

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

21шт.

51

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3шт.

52

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

7шт.

53

495-21038

WASHER,5/16"

8шт.

54

495-21044

WASHER,3/8"

1шт.

55

84206494

PIN,19.05mm OD x 108.07mm L

98.5 x 19, Headed, HT, GR8

1шт.

56

86000109

COTTER PIN

3-1/4" x 11/64" Dia.

1шт.
