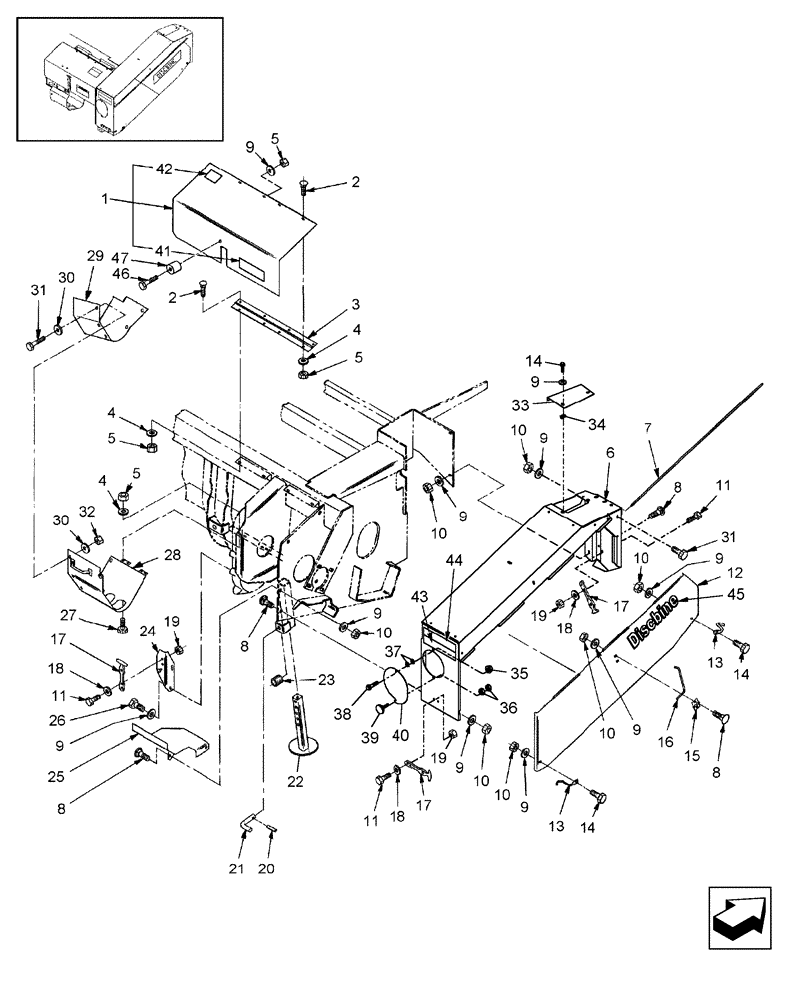

Запчасти Case IH RDX181 (20.08.02[02]) - SHIELDING, REAR, PIN Y7B667799 AND AFTER (08) - SHEET METAL

1

86633333

COVER

Includes: Ref. 41 & 42

1шт.

2

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

8шт.

3

86526598

HINGE

1шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

5

86624020

FLANGE NUT,Flg, 1/4"-20.G5

12шт.

6

87028252

SHIELD

RH

1шт.

7

9617448

PIN,6.35mm OD x 1493.52mm L

42"

1шт.

8

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

9шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

10

86521605

FLANGE NUT,5/16"-18, Cl 5

12шт.

11

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

12

87524597

DOOR

1шт.

13

9801962

HOOK

2шт.

14

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

15

173195

BRACKET

1шт.

16

173194

HOOK

1шт.

17

86000448

LATCH

Rubber

3шт.

18

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

19

280129

NUT,1/4"-20

6шт.

20

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

21

86611330

PIN,16.56mm OD

Jack, 9/16" x 2-7/8"

1шт.

22

86613561

TUBE

Jack

1шт.

23

86611329

SPRING

1шт.

24

87645059

BRACKET

1шт.

25

86633333

COVER

1шт.

26

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

27

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

28

86633340

COVER ASSY

1шт.

29

86581734

SHIELD

1шт.

30

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16" ID x .065" Thk

12шт.

31

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

32

9823743

FLANGE NUT,Flg, 5/16"-18

6шт.

33

86633330

COVER

1шт.

34

9626645

NUT

Speed, 5/16"-18

2шт.

35

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

36

9628503

NUT,3/8"-16, G5

2шт.

37

215588

WASHER

Nylon, 3/8"

2шт.

38

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

39

235167

KNOB

1шт.

40

86629815

DOOR

1шт.

41

9826789

DANGER DECAL,180mm x 90mm H

DANGER, Rotating Driveline, See 20.08.15[1]

1шт.

42

86611825

WARNING DECAL

WARNING, NO STEP, English, See 20.08.15[1]

1шт.

43

86547783

REFLECTOR,Tape, Red Orange

Fluorescent Red/Orange, See 20.08.15[1]

1шт.

44

86547781

REFLECTOR,RED

Retroreflective Red, See 20.08.15[1]

1шт.

45

87622972

DECAL

CASEIH Logo, See 20.08.15[1]

2шт.

46

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

47

87014515

SPACER

1шт.
