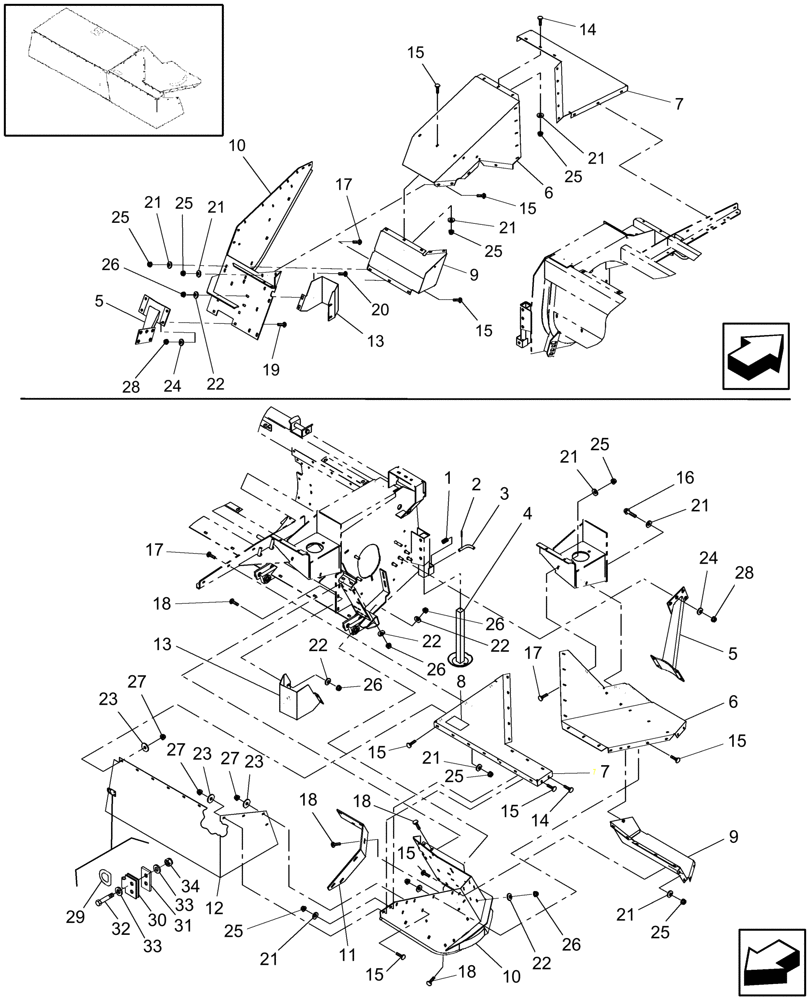

Запчасти Case IH RDX181 (20.08.01[02]) - SHIELDING, LEFT SIDE, PIN Y7B667799 AND AFTER (08) - SHEET METAL

1

86611329

SPRING

1шт.

2

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

3

86611330

PIN,16.56mm OD

1шт.

4

86613561

TUBE

1шт.

5

87515043

SUPPORT

1шт.

6

87358432

SHIELD

1шт.

7

87025451

SHEET

Includes Ref. 8

1шт.

8

86611825

WARNING DECAL

Warning, Slippery Surface, See 20.08.15[1]

1шт.

9

87362476

FILLER

1шт.

10

87370713

SHEET METAL

1шт.

11

87515046

SUPPORT

1шт.

12

86567130

PROTECTING COVER

Includes Ref, Serial Range: 29-34

1шт.

13

87515061

GUIDE

1шт.

14

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

9шт.

15

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

31шт.

16

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

5шт.

18

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

13шт.

19

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

20

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

28шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

23

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

11/32" OD x 1-3/8" OD x 0.075"

11шт.

24

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

25

86521605

FLANGE NUT,5/16"-18, Cl 5

27шт.

26

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

15шт.

27

145458

SERRATED NUT,5/16"-18 GR 5 ZND

11шт.

28

86521607

FLANGE NUT,Flg, 1/2"-13, G5

8шт.

29

9604626

RING

1шт.

30

9604627

STRAP

1шт.

31

9604628

STRAP

1шт.

32

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

33

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

34

20356

NUT,1/4"-20, GB

2шт.
