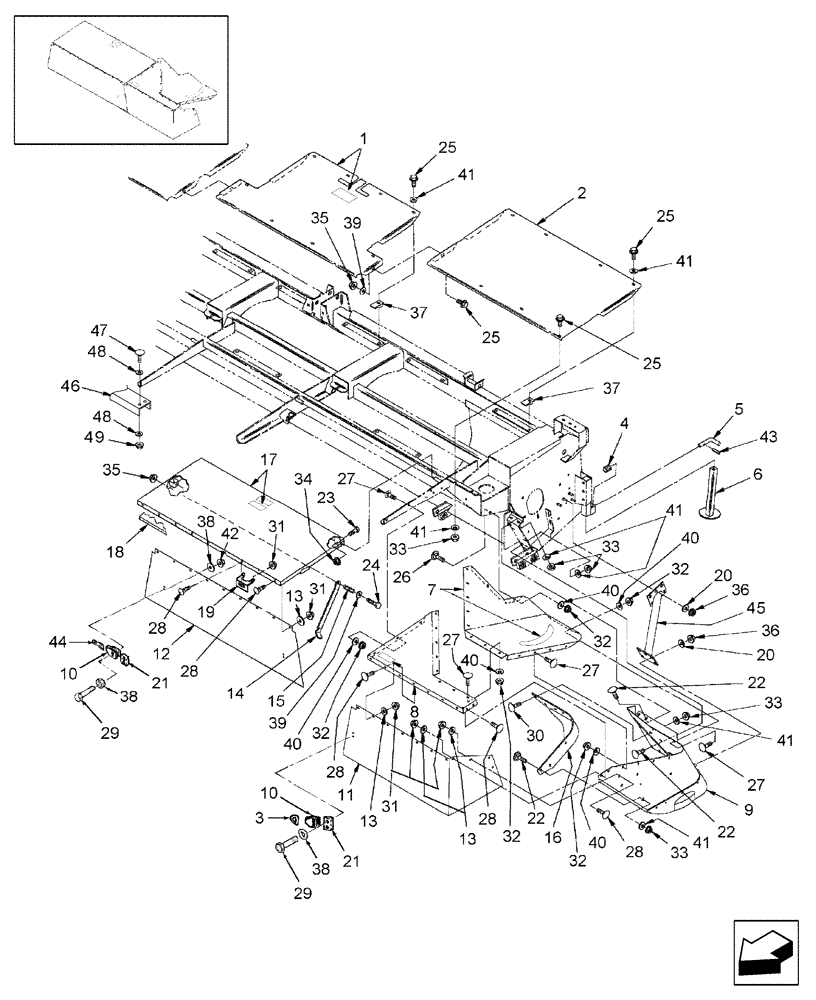

Запчасти Case IH RDX181 (20.08.01[01]) - SHIELDING, LEFT SIDE, BPIN Y7B667799 (08) - SHEET METAL

1

86633291

COVER

Includes: Decal (English)

1шт.

1

86611825

WARNING DECAL

WARNING - NO STEP- English

1шт.

1

86614084

WARNING DECAL

NO STEP- French

1шт.

1

86624655

WARNING DECAL

WARNING - NO STEP- Spanish

1шт.

2

86633294

COVER

1шт.

3

9604626

RING

1шт.

4

86611329

SPRING

1шт.

5

86611330

PIN,16.56mm OD

1шт.

6

86613561

TUBE

1шт.

7

87025452

SHEET

Top, Includes: Decal (English)

1шт.

This BSN Sheet is superceding to ASN Sheet. When updating to new level parts, change ASN supports, Side Sheets also Top Sheet.

1шт.

7

87358432

SHIELD

Top (Plastic), Includes Decal

1шт.

ASN Y7B667799

1шт.

7

80772110

WARNING DECAL

WARNING, Knife Tip Path- English

1шт.

7

791403

WARNING DECAL

WARNING, Knife Tip Path- French

1шт.

7

86528619

WARNING DECAL

WARNING, Knife Tip Path- Spanish

1шт.

8

87025451

SHEET

Top

1шт.

9

87025413

SHEET ASSY.

Side

1шт.

This BSN Sheet is superceding to ASN Sheet. When updating to new level parts, change ASN supports, Side Sheets also Top Sheet.

1шт.

9

87370713

SHEET METAL

Side (Plastic) ASN Y7B667799

1шт.

10

9604627

STRAP

3шт.

11

86567130

PROTECTING COVER

Includes: Ref's 3, 10, 21, 29 (2), 38 (4), and 42 (2)

1шт.

12

86532270

RUBBER

1шт.

13

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16" ID x .065" Thk

16шт.

14

86526613

LATCH

1шт.

15

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

16

86631728

SUPPORT

1шт.

16

87515046

SUPPORT

1шт.

ASN Y7B667799

1шт.

17

86626541

COVER

Includes: Decals (English)

1шт.

17

86628571

WARNING DECAL

WARNING- English

1шт.

17

86629518

WARNING DECAL

WARNING- French

1шт.

17

9804253

DECAL

WARNING- Spanish

1шт.

17

86611825

WARNING DECAL

WARNING, NO STEP- English

1шт.

17

86614084

WARNING DECAL

NO STEP- French

1шт.

17

86624655

WARNING DECAL

WARNING, NO STEP- Spanish

1шт.

18

86582726

LINER

1шт.

19

86582727

CLIP

4шт.

20

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.

21

9604628

STRAP

3шт.

22

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

8шт.

23

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

24

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

25

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

17шт.

26

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

27

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

18шт.

28

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

20шт.

29

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

30

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

32

425-285

FLANGE NUT,Flg, 5/16"-18, G5

20шт.

33

425-286

FLANGE NUT,Flg, 3/8"-16, G5

16шт.

34

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

35

231-5346

FLANGE NUT,Flg, 3/8"-16

3шт.

36

425-288

FLANGE NUT,Flg, 1/2"-13, G5

8шт.

37

86539811

SPRING NUT

Speed, 3/8"-16

14шт.

38

495-11028

WASHER,1/4", SAE

12шт.

39

495-21044

WASHER,3/8"

3шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

42

280129

NUT,1/4"-20

6шт.

43

38-1820

LOCK PIN,1/8" x 1 1/4", Slotted

1шт.

44

9604631

SPRING CLIP

Snap

2шт.

45

87025479

BRACE

1шт.

45

87515043

SUPPORT

1шт.

ASN Y7B667799

1шт.

46

NS

NOT SERVICED

Channel

2шт.

47

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

48

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

16шт.

49

232-4146

NUT,3/8"-16, GC

8шт.

87631213

KIT

Cheek

1шт.

This BSN Sheet is superceding to ASN Sheet. When updating to new level parts, change ASN supports, Side Sheets also Top Sheet.

1шт.
