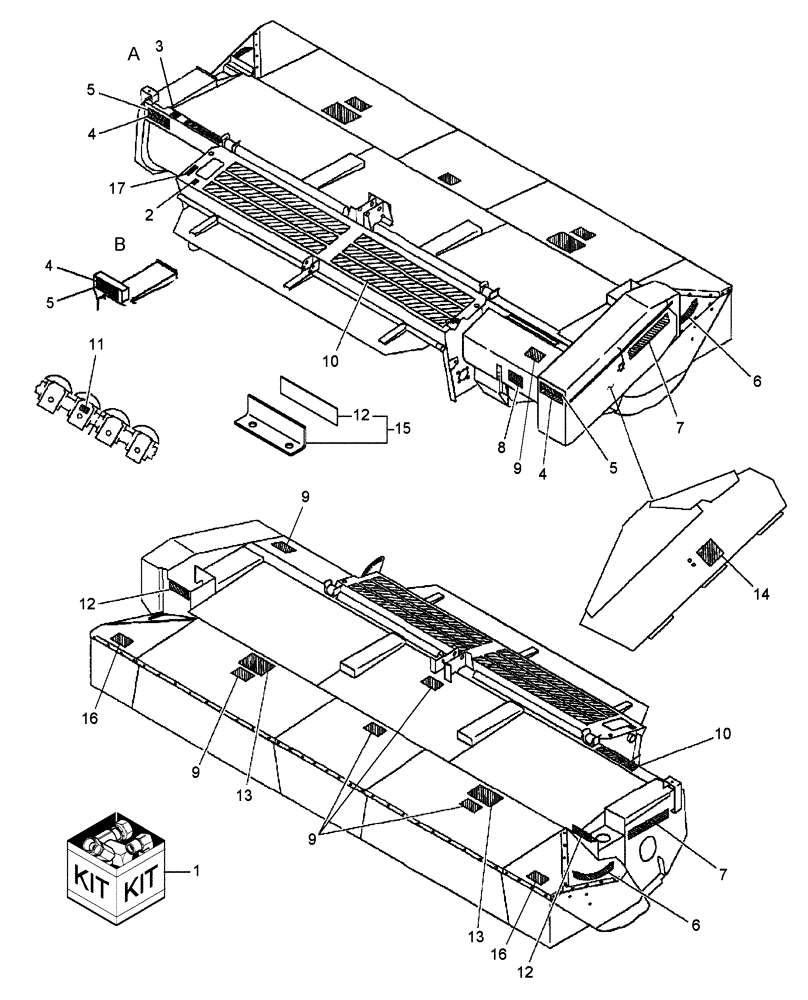

Запчасти Case IH RDX161 (020) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86617714

DECAL

Kit, Includes: Ref. 2 - 14, 16, & Sign Guide

1шт.

2

237109

DECAL

Roll Pressure, Adjust To Increase, English

1шт.

2

601634

DECAL

Roll Pressure, French

1шт.

2

9804251

DECAL

Roll Pressure, Spanish

1шт.

3

86598785

SELF-TAP SCREW

Rd Hd, Stainless Steel, #4 x 1/4"

2шт.

4

86547783

REFLECTOR,Tape, Red Orange

Red Orange

2шт.

5

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

6

80772110

WARNING DECAL

Knife Tip Path, English

2шт.

6

791403

WARNING DECAL

Warning, Knife Tip Path, French

2шт.

6

86528619

WARNING DECAL

Warning, Knife Tip Path, Spanish

2шт.

7

86624776

DECAL

Case

2шт.

8

9826789

DANGER DECAL,180mm x 90mm H

Rotating Drive Line, English

1шт.

8

9827448

DANGER DECAL

Rotating Drive Line, French

1шт.

8

9801260

DANGER DECAL

Rotating Drive Line, Spanish

1шт.

9

86611825

WARNING DECAL

Warning, No Step, English

4шт.

9

86614084

WARNING DECAL

No Step, French

4шт.

9

86624655

WARNING DECAL

Warning, No Step, Spanish

4шт.

10

263636

ANTI-SKID STRIP

Safety, 4" x 55"

7шт.

11

166127

DECAL

Attention, Do Not Use This Member For Lifting, English

1шт.

11

601662

DECAL

Attention, Do Not Use This Member For Lifting, French

1шт.

11

9804246

DECAL

Attention, Do Not Use This Member For Lifting, Spanish

1шт.

12

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

3шт.

13

86628571

WARNING DECAL

Stand Clear, English

2шт.

13

86622074

WARNING DECAL

WARNING, French

2шт.

13

86629519

WARNING DECAL

Stand Clear, Spanish

2шт.

14

86580593

DECAL

Belt Adjustment, English

1шт.

14

86580595

DECAL

Belt Adjustment, Spanish

1шт.

15

86588678

ANGLE

Includes: Ref. 12

1шт.

Prior to PIN HCA0016065

1шт.

16

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

2шт.

16

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

2шт.

16

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

2шт.

17

87012831

DECAL

Roll Pressure, H-M-L; L = 117 MM

1шт.

17

87031199

DECAL

Roll Pressure, H-M-L; L = 62 MM

1шт.
