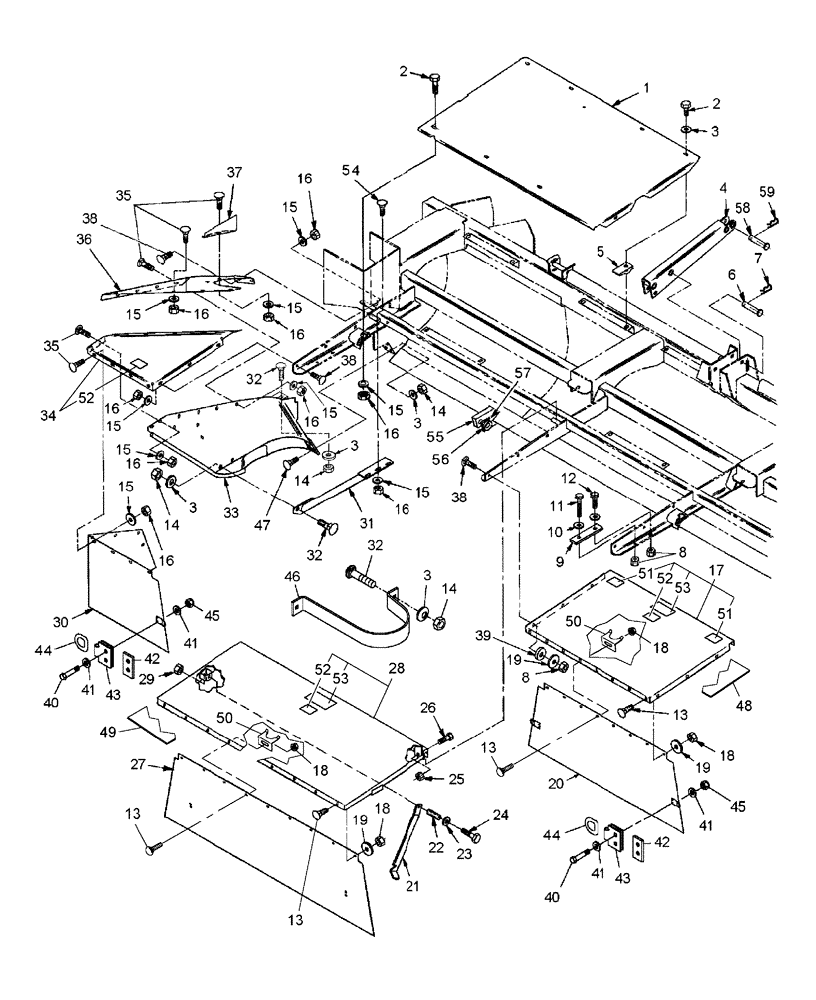

Запчасти Case IH RDX161 (016) - SHIELDING RIGHT SIDE & TOP LINK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86633296

COVER

RH

1шт.

2

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

7шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

4

86633313

CHANNEL

25" Long

1шт.

Used when mounted to WDX1701

1шт.

4

87058897

CHANNEL

27.1" Long

1шт.

Used when mounted to WDX1902 or WDX2302

1шт.

Prior To MY 2007

1шт.

4

87524587

CHANNEL

25.4" Long, See Figure Note

1шт.

Used when mounted to WDX1902 or WDX2302

1шт.

From MY 2007

1шт.

5

86539811

SPRING NUT

Tinnerman, 3/8"-16

6шт.

6

86529063

PIN

3/4" OD x 5-9/64" L

2шт.

Used when mounted to WDX1701

1шт.

6

86596231

PIN

3/4" OD x 4-1/3" L

2шт.

Used when mounted to WDX1902 or WDX2302

1шт.

7

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair, 5/32" x 2-3/4"; Use W/86529063 (2) Or 86596231 (4)

1шт.

8

231-5345

FLANGE NUT,Flg, 5/16"-18

14шт.

9

241578A1

FLANGE

4шт.

10

495-21038

WASHER,5/16"

8шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

12

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

25шт.

14

425-286

FLANGE NUT,Flg, 3/8"-16, G5

9шт.

15

492-11031

LOCK WASHER,5/16"

20шт.

16

425-285

FLANGE NUT,Flg, 5/16"-18, G5

20шт.

17

86626577

COVER

1шт.

17

87025640

COVER

1шт.

Replaces 86626577. Ref. 51 not included or needed

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

25шт.

19

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

31шт.

20

86522269

RUBBER

Center

1шт.

21

86526613

LATCH

1шт.

22

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

23

495-21044

WASHER,3/8"

1шт.

24

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

25

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

26

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

27

86532270

RUBBER

1шт.

28

86626541

COVER

1шт.

29

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

30

86522266

RUBBER

RH

1шт.

31

86632244

PIPE

1шт.

32

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

5шт.

33

86633287

SHEET

RH

1шт.

34

86632224

SUPPORT

RH

1шт.

35

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

11шт.

36

86633288

SHEET

Top, RH, Includes: Ref. 36A

1шт.

36a

80772110

WARNING DECAL

Knife Tip Path

1шт.

37

86633315

SHIELD

1шт.

38

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

10шт.

39

86554309

RUBBER WASHER

6шт.

40

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

41

495-11028

WASHER,1/4", SAE

12шт.

42

9604628

STRAP

Backup

3шт.

43

9604627

STRAP

3шт.

44

9604626

RING

D

3шт.

45

280129

NUT,1/4"-20

6шт.

46

86629708

GUARD

1шт.

Prior to PIN HCA0016094

1шт.

47

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

4шт.

48

86582725

LINER

Stone Guard

1шт.

49

86582726

LINER

Stone Guard

1шт.

50

86582727

CLIP

9шт.

51

86629146

WARNING DECAL

Caution: Close Shield Prior To Operating

1шт.

52

86611825

WARNING DECAL

Warning

1шт.

53

86628571

WARNING DECAL

1шт.

54

280507

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

3шт.

55

86532394

PLATE

Thick

1шт.

Weld-On Part

1шт.

56

86522240

HUB

4шт.

Weld-On Part

1шт.

57

86532393

PLATE

Thin

1шт.

Weld-On Part

1шт.

58

84206494

PIN,19.05mm OD x 108.07mm L

98.5 x 19, Headed, HT, GR8

1шт.

59

86000109

COTTER PIN

3-1/4" x 11/64" Dia.

1шт.
