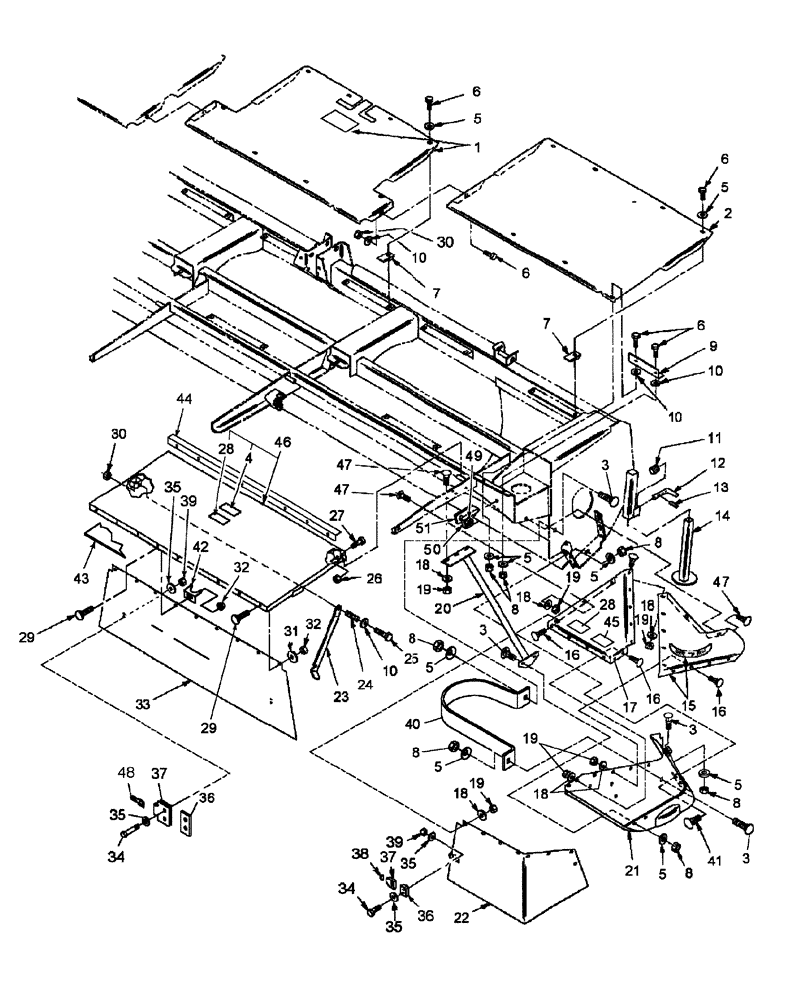

Запчасти Case IH RDX161 (014) - SHIELDING LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86633291

COVER

Top, Includes: Ref. 28

1шт.

2

86633294

COVER

LH

1шт.

3

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

4

86628571

WARNING DECAL

Stand Clear

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

26шт.

6

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

18шт.

7

86539811

SPRING NUT

Tinnerman, 3/8"-16

2шт.

8

425-286

FLANGE NUT,Flg, 3/8"-16, G5

12шт.

9

86588678

ANGLE

Includes: Retroreflective Tape

1шт.

Prior to PIN HCA0016065

1шт.

9

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

1шт.

10

495-21044

WASHER,3/8"

6шт.

11

86611329

SPRING

1-7/16" L

1шт.

12

86611330

PIN,16.56mm OD

Jack, 9/16" OD x 3-13/32" L

1шт.

13

38-1820

LOCK PIN,1/8" x 1 1/4", Slotted

1шт.

14

86613561

TUBE

1шт.

15

86633289

SHEET

Top, RH Side, Includes: Decal

1шт.

15

80772110

WARNING DECAL

Knife Tip Path

1шт.

16

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

10шт.

17

86632223

SUPPORT

LH

1шт.

18

492-11031

LOCK WASHER,5/16"

18шт.

19

425-285

FLANGE NUT,Flg, 5/16"-18, G5

18шт.

20

86632244

PIPE

1шт.

21

86633286

SHEET

LH

1шт.

22

86522267

SKIRT

LH

1шт.

23

86526613

LATCH

1шт.

24

86628837

SPRING,Compression, 23mm OD x 57.15mm L

2шт.

25

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

26

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

27

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

28

86611825

WARNING DECAL

Warning, No Step

2шт.

29

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

17шт.

30

231-5346

FLANGE NUT,Flg, 3/8"-16

5шт.

31

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

17шт.

33

86532270

RUBBER

1шт.

34

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

35

495-11028

WASHER,1/4", SAE

4шт.

36

9604628

STRAP

Back

1шт.

37

9604627

STRAP

1шт.

38

9604626

RING

D

1шт.

39

280129

NUT,1/4"-20

2шт.

40

86629708

GUARD

1шт.

Prior to PIN HCA0016094

1шт.

41

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

4шт.

42

86582727

CLIP

4шт.

43

86582726

LINER

Stone Guard

1шт.

44

86582730

ANGLE

(Weld On)

1шт.

45

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

45

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

1шт.

45

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

1шт.

46

86626541

COVER

Includes: Ref. 4 & 28

1шт.

47

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

8шт.

48

9604631

SPRING CLIP

Snap

2шт.

49

86532394

PLATE

Thick

1шт.

Weld-On Part

1шт.

50

86522240

HUB

4шт.

Weld-On Part

1шт.

51

86532393

PLATE

Thin

1шт.

Weld-On Part

1шт.
