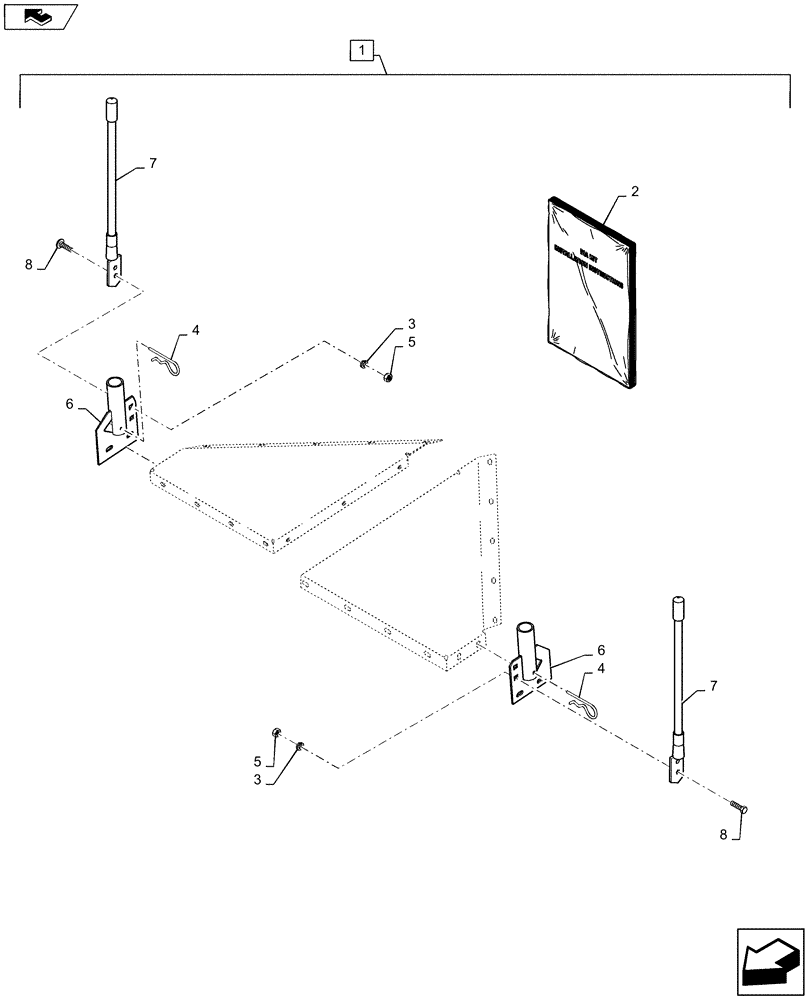

Запчасти Case IH RDX161 (88.088.01) - DIA KIT, CORNER MARKER CNH (88) - ACCESSORIES

1

87532974

DIA KIT, HARVESTER

Corner Marker CNH, Incl 2 - 10

1шт.

2

84396856

INSTRUCTION

Corner Marker Kit

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

4

755961

COTTER PIN

Air

2шт.

5

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

6

86581970

PLATE

Weld Assembly

2шт.

7

86600268

ROD

Marker

2шт.

8

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

9

70141

Bag, Not Shown

1шт.

10

9800696

Not Shown

1шт.
