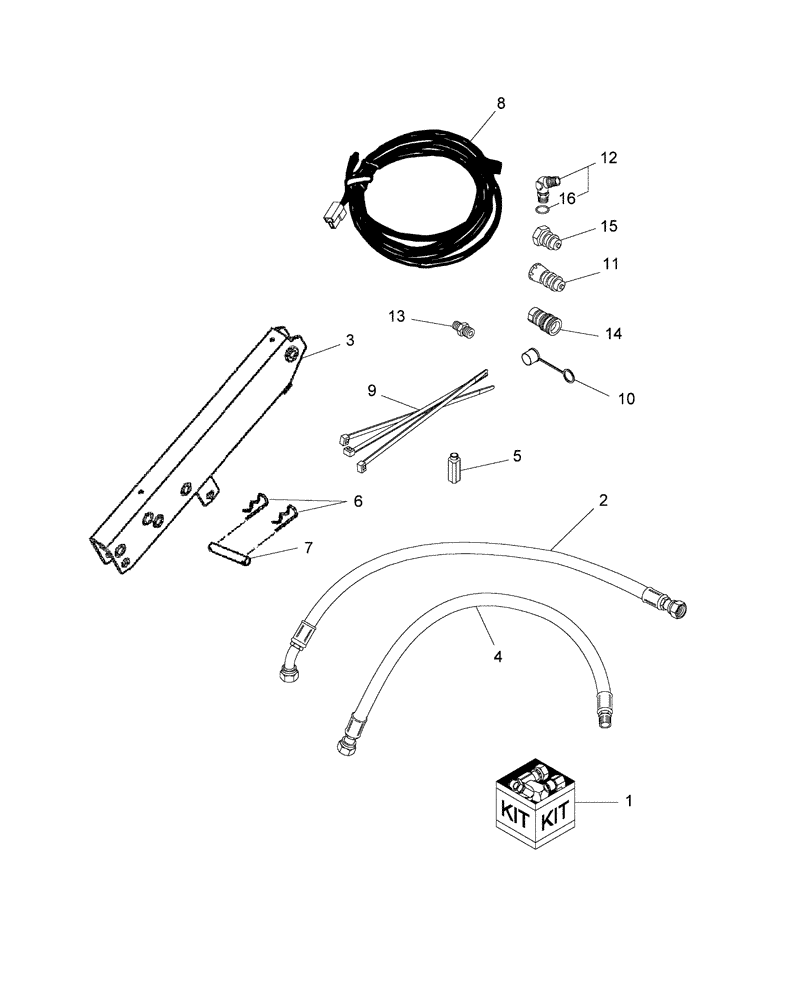

Запчасти Case IH RDX161 (028) - ADAPTER KIT, WDX1902 OR WDX2302 (88) - ACCESSORIES

1

87059188

KIT

Adapter

1шт.

2

87023203

HOSE ASSY.

2шт.

3

87058897

CHANNEL

1шт.

4

87023204

HOSE,15.88mm ID x 2540mm L, SAE 100R6

Includes O-Ring

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

87035705

POPPET

2шт.

6

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

4шт.

7

86596231

PIN

2шт.

8

87030622

HARNESS

1шт.

9

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

10

86621124

DUST CAP

2шт.

11

87037008

QUICK MALE COUPLING

2шт.

12

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 16

2шт.

13

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

3/4" Tube; Includes: O-Rings

4шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

14

86564734

COUPLING

1шт.

15

9820148

COUPLING,1-1/16" - 12

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
