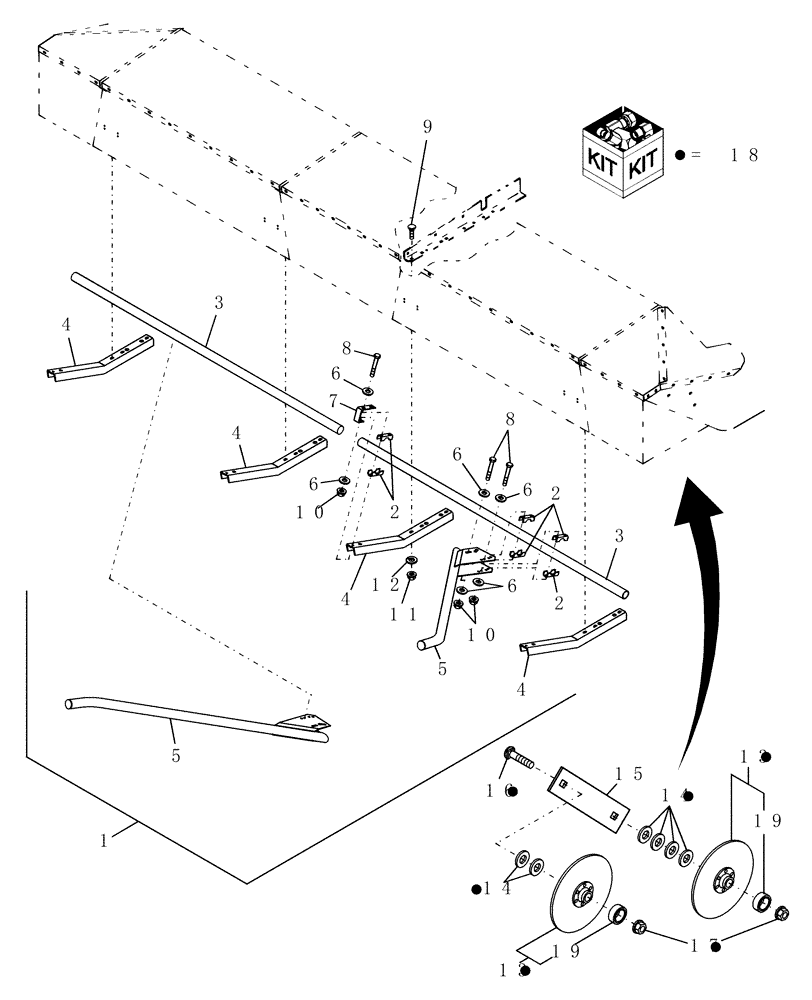

Запчасти Case IH RDX161 (025) - PUSHBAR DIVIDER & ROLLING CROP DIVIDER (58) - ATTACHMENTS/HEADERS

1

716695006

DIA KIT, HARVESTER

Push Bar Divider, Includes: Ref. 2 Thru 12

1шт.

2

86621660

CLAMP

16шт.

3

86576393

TUBE,48.30 mm OD x 2140 mm L

2шт.

4

86554321

CHANNEL

4шт.

5

86621656

TUBE

2шт.

6

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

32шт.

7

86581113

COVER

4шт.

8

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

16шт.

9

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

12шт.

10

232-4146

NUT,3/8"-16, GC

16шт.

11

425-286

FLANGE NUT,Flg, 3/8"-16, G5

12шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

13

86593111

DISC

2шт.

14

495-11066

WASHER,5/8", SAE

6шт.

15

86578828

PLATE

1шт.

16

280637

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 3", Gr 5

2шт.

17

231-41410

NUT,5/8"-11, GB

2шт.

18

87033746

DIA KIT, HARVESTER

Rolling Crop Divider

1шт.

19

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

1шт.

19

1268017C91GV

BEARING

Value, Ball Bearing

1шт.
