(012[2]) - CUTTERBAR DRIVE SHAFT, FROM PIN HCA0016065

Запчасти Case IH RDX161 (012[2]) - CUTTERBAR DRIVE SHAFT, FROM PIN HCA0016065 (58) - ATTACHMENTS/HEADERS

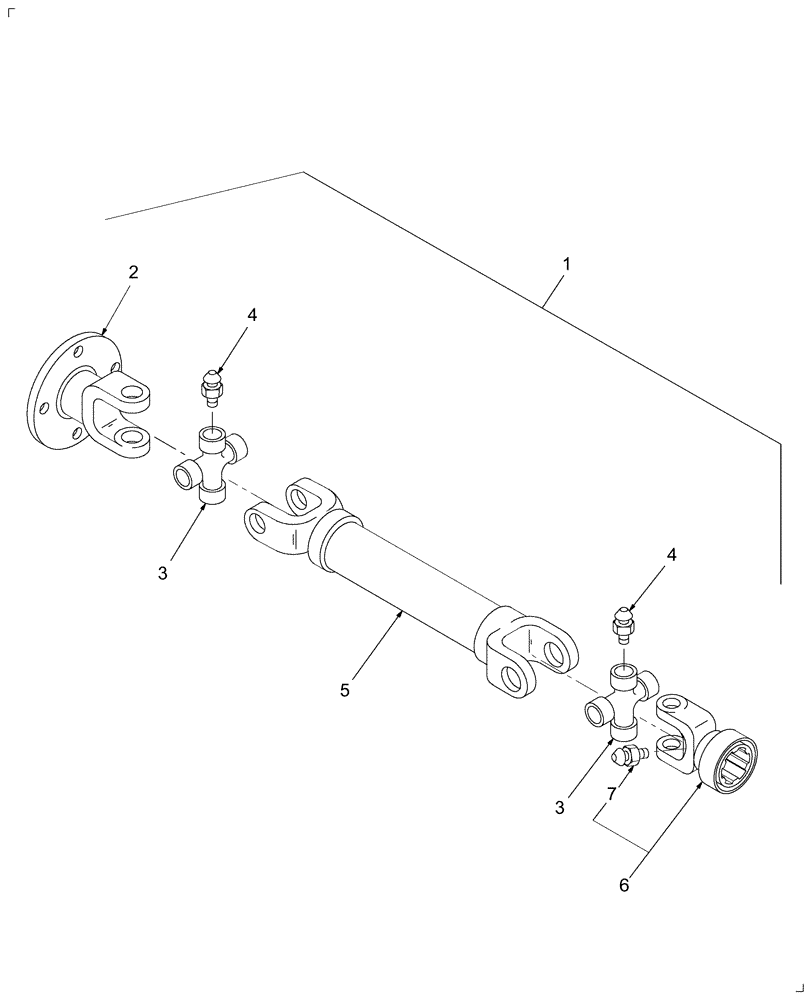

Схема запчастей Case IH RDX161 - (012[2]) - CUTTERBAR DRIVE SHAFT, FROM PIN HCA0016065 (58) - ATTACHMENTS/HEADERS
2
5
6
1
3
3
7
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87026974

SHAFT

Drive, Includes: Ref. 2 - 6

1шт.

2

86585339

YOKE

1шт.

3

86515563

BEARING ASSY,27.03mm Cap Dia, 63.75mm L

Cross & Bearing, Includes: Ref. 4

2шт.

4

88775

LUBE NIPPLE,1/4"-28

Straight

2шт.

5

86537484

YOKE

& Shaft

1шт.

6

86623800

YOKE

1шт.

Component of antiwrap kit 87030620

1шт.

7

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.
