(012[1]) - CUTTERBAR DRIVE SHAFT, PRIOR TO PIN HCA0016065

Запчасти Case IH RDX161 (012[1]) - CUTTERBAR DRIVE SHAFT, PRIOR TO PIN HCA0016065 (58) - ATTACHMENTS/HEADERS

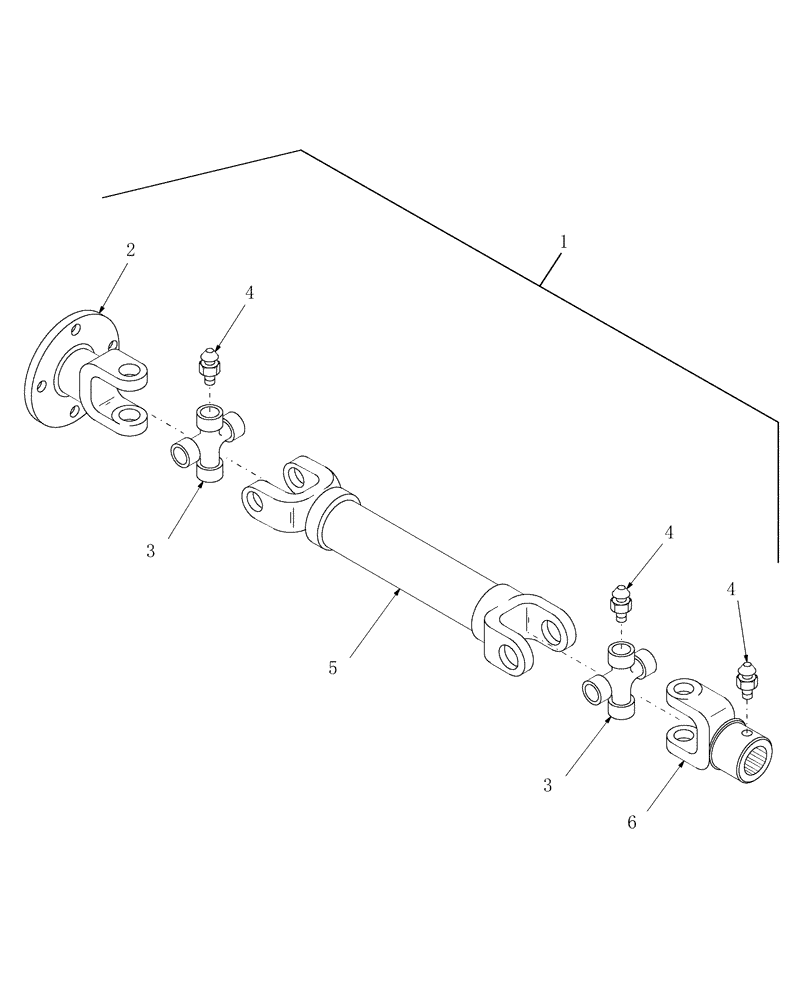

Схема запчастей Case IH RDX161 - (012[1]) - CUTTERBAR DRIVE SHAFT, PRIOR TO PIN HCA0016065 (58) - ATTACHMENTS/HEADERS
3
2
5
1
4
4
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86519247

SHAFT

Includes: Ref. 2 - 6

1шт.

2

86515562

YOKE

1шт.

3

86515563

BEARING ASSY,27.03mm Cap Dia, 63.75mm L

Cross & Bearing, Includes: Ref. 4

2шт.

4

88775

LUBE NIPPLE,1/4"-28

Straight

3шт.

5

86537484

YOKE

& Shaft

1шт.

6

86515565

YOKE

1шт.

Выбрано товаров: 6
