Запчасти Case IH RDX161 (011[2]) - CUTTERBAR, 12 DISC, SHOCK HUBS, OPTION (58) - ATTACHMENTS/HEADERS

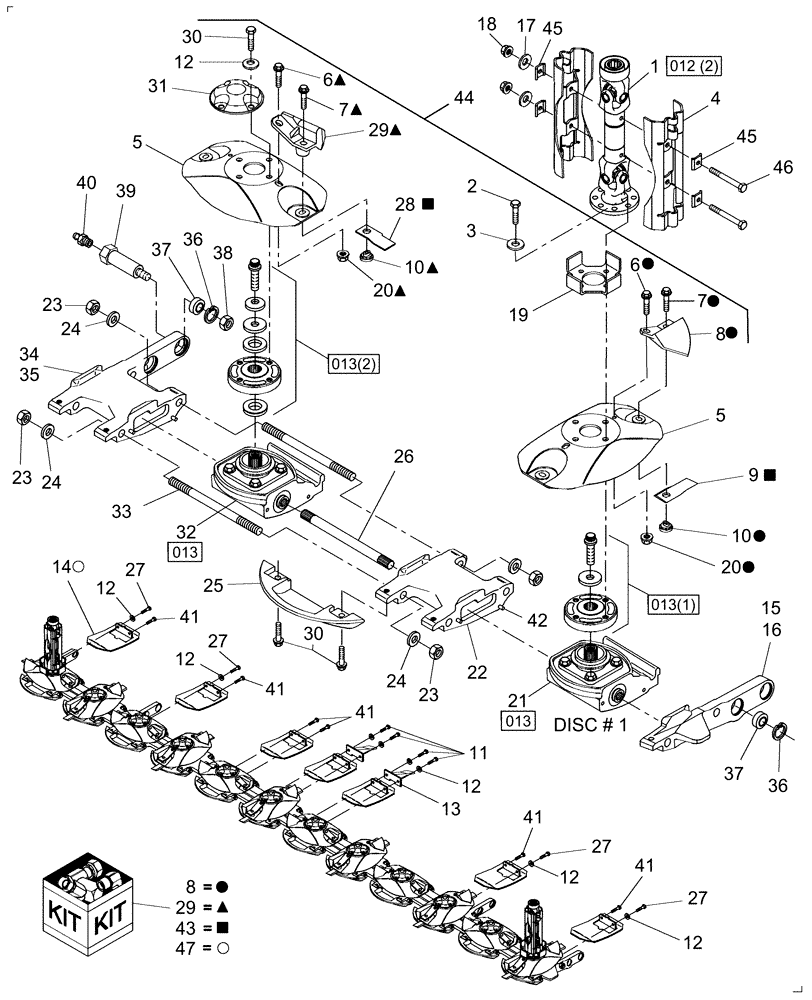

Схема запчастей Case IH RDX161 - (011[2]) - CUTTERBAR, 12 DISC, SHOCK HUBS, OPTION (58) - ATTACHMENTS/HEADERS
45
10
41
27
013
4
10
5
44
37
46
013(2)
27
12
36
23
6
2
12
20
26
12
30
47
18
45
41
13
20
22
29
27
42
27
31
013
35
12
41
40
41
15
5
30
43
25
16
23
013(1)
8
28
37
23
38
29
17
3
6
7
33
12
24
7
24
36
32
21
8
012 (2)
19
14
11
1
34
41
24
39
12
9

Артикул

Название

Примечание

Количество

1

87519705

PTO

Drive

2шт.

2

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

4

84260963

KIT

Tall Drum, Inc: 17, 18,45 & 46

2шт.

Drum Halves and Reinforcements are not Serviced Separately, Must Buy Kit.

1шт.

4

84469547

KIT

Tabbed Tall Drum, Inc: 17, 18, 45 & 46

2шт.

Replaces 84260963, Drum Halves NSS

1шт.

5

87646406

DISC

12шт.

6

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

24шт.

7

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

24шт.

8

87528245

KIT

Lifter, CW, Includes: (2) Lifters, Hardware & Instructions

6шт.

9

86621872

BLADE

CW, 14° Twist

12шт.

Standard equipment.

1шт.

9

9847683

BLADE,Knife CW

CW, 7° Twist

12шт.

9

86532078

KNIFE

"V"

12шт.

9

87029587

BLADE

CW, 14° Twist, Over Serrated

12шт.

10

87725066

NUT

24шт.

11

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

4шт.

12

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

48шт.

13

86632774

STOP

2шт.

14

87047426

SKID/SHOE

12шт.

14

87622885

SHOE

High Stubble

12шт.

14

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

12шт.

15

86640565

ARM

End Cap, LH, Includes Ref. 42

1шт.

16

86631408

ARM

End Cap, RH, Includes Ref. 42 (Not Illustrated)

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

19

86629689

DISC

2шт.

20

86544265

FLANGE NUT,Flg, 1/2"-13, G8

24шт.

21

0C

ORDER COMPONENTS

Module, Control, CW

6шт.

22

87044107

SPACER

Includes: Groove Pins

9шт.

23

86518194

NUT,3/4"-10, G8

48шт.

24

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

48шт.

25

87047845

STONEGUARD

Guard

12шт.

26

86519042

SHAFT

248mm

11шт.

26

9861804DS

GREASE

14 oz. Cartridge

1шт.

27

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

28

9847684

BLADE,Knife CCW

CCW, 7° Twist

12шт.

28

86621873

BLADE

CCW, 14° Twist

12шт.

Standard equipment.

1шт.

28

87029588

BLADE

CCW, 14° Twist, Over-serrated

12шт.

28

86532078

KNIFE

"V"

24шт.

29

87528249

KIT

Lifter, CCW, Includes: (2) Lifters, Hardware & Instructions, Qty 2 Grass seed Units

6шт.

30

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

31

87581143

CAP

See Also: Fig. 013[1] & [2]

10шт.

32

0C

ORDER COMPONENTS

Module, Control, CCW

6шт.

33

86501934

THREADED ROD

12.2" L, Services Both Partially and Fully-Threaded Rods

24шт.

34

86531774

SPACER

LH, Width = 200 MM

1шт.

35

86531772

SPACER

RH, Width = 200 MM

1шт.

36

271429

SNAP RING,1.625", Int, #162

8шт.

37

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

8шт.

38

86557260

SPECIAL NUT

Special, Lock, 3/4"-10

8шт.

39

86571960

BOLT

8шт.

40

87414

LUBE NIPPLE,1/4" - 28

8шт.

41

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

1шт.

42

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

1шт.

43

86624751

KNIFE SET

Includes (10) Ref. 9, 14° CW Blades, & (10) Ref. 28, 14° CCW Blades

1шт.

43

86624752

KNIFE SET

Includes (16) Ref. 9, 14° CW Blades, & (16) Ref. 28, 14° CCW Blades

1шт.

43

87037027

SET OF BLADES

Includes (16) Ref. 9, 14° CW OS Blades, & (16) Ref. 28, 14° CCW OS Blades

1шт.

44

87647053

CUTTERBAR

Complete, Shock Protect

1шт.

Cutterbar Does Not Include: Tall Drums or Cutterbar Driveshafts. Those Items Must be Ordered as Required.

1шт.

45

NSS

NOT SOLD SEPARAT

8шт.

46

280464

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

4шт.

47

715289026

DIA KIT, HARVESTER

Hi Stub, Includes: (8) Hi Skid Shoes & Instructions

1шт.

Выбрано товаров: 64
