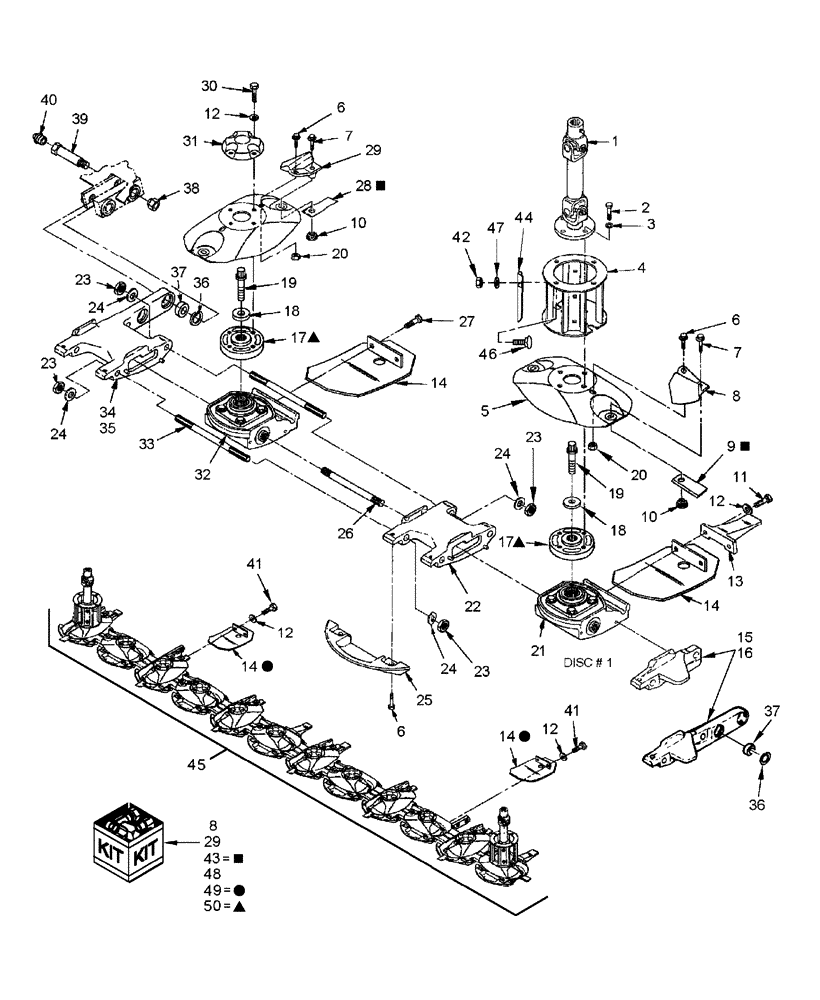

Запчасти Case IH RDX161 (011[1]) - CUTTERBAR, 12 DISC, NON SHOCK HUBS (58) - ATTACHMENTS/HEADERS

1

86519247

SHAFT

Breakdown Figure 012[1]

2шт.

Prior to PIN HCA0016065

1шт.

1

87026974

SHAFT

Breakdown Figure 012[2]

2шт.

After PIN HCA0016065

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(1/2")

8шт.

4

86634229

DRUM

2шт.

Prior to PIN HCA0016094

1шт.

4

87040772

DRUM

2шт.

From PIN HCA0016094

1шт.

5

86620468

DISC

12шт.

6

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

48шт.

6

87040886

BOLT

Flg, Lock, G8, 1/2"-13 x 1-1/4"

24шт.

Replaces 86515925 in kits 87040840 & 87040841

1шт.

7

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

24шт.

8

87040840

KIT

Lifter, CW, Includes: (2) Ref. 6, 7, 10, 20, Two Lifters, & Instructions

6шт.

9

9847683

BLADE,Knife CW

Blade, CW, 7° Twist

12шт.

9

86621872

BLADE

CW, 14° Twist

12шт.

9

87029587

BLADE

CW, Over-serrated, 14° Twist

12шт.

9

86532078

KNIFE

V

24шт.

10

87725066

NUT

Knife, Start Year: 01-APR-06

24шт.

11

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

12

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

48шт.

13

86632774

STOP

2шт.

14

86572263

SKID/SHOE

[Welded Skid Shoe], See Figure Note

12шт.

Prior To MY 2006

1шт.

14

87047426

SKID/SHOE

[Formed Skid Shoe], See Figure Note

12шт.

From MY 2006

1шт.

14

86630488

SHOE

High Stub

12шт.

14

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

12шт.

15

86640565

ARM

LH

1шт.

16

86631408

ARM

RH

1шт.

Not Illustrated

1шт.

17

86629692

HUB

See Fig 011[1] For breakdown Or Ref 50 For Retrofit

12шт.

18

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

5/8" ID

12шт.

19

86600611

PREV TORQUE BOLT,12 Pt Flg, 5/8" - 11 x 1.50"

12шт.

20

86544265

FLANGE NUT,Flg, 1/2"-13, G8

24шт.

21

0C

ORDER COMPONENTS

Module, Control, CW, Refer to Fig. 013[1]

6шт.

22

86506032

SPACER

Includes: Groove Pins

9шт.

22

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

36шт.

23

429-1012

NUT,3/4"-10, G8

48шт.

24

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

48шт.

Prior to PIN HCA0016065

1шт.

24

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

48шт.

From PIN HCA0016065

1шт.

25

86565383

GUARD

Stone, See Figure Note

12шт.

Prior To MY 2006

1шт.

25

87047845

STONEGUARD

See Figure Note

12шт.

From MY 2006

1шт.

26

86519042

SHAFT

L = 248mm

11шт.

26

132096A1

GREASE

1шт.

27

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

28

9847684

BLADE,Knife CCW

Blade, CCW, 7°

12шт.

28

86621873

BLADE

CCW, 14° Twist

12шт.

28

87029588

BLADE

CCW, Over-serrated, 14° Twist

12шт.

28

86532078

KNIFE

V

24шт.

29

87040841

KIT

Lifter, CCW, Includes: (2) Ref. 6, 7, 10, 20, Two Lifters, & Instructions

6шт.

30

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

40шт.

31

9828165

CAP

See Also: Fig. 013[1]

10шт.

32

0C

ORDER COMPONENTS

Module, Control, CCW, Refer to Fig. 013

6шт.

33

86501934

THREADED ROD

.75" x 12.20"

24шт.

34

86531774

SPACER

LH

1шт.

35

86531772

SPACER

RH

1шт.

36

100-21162

SNAP RING,1.625", Int, #162

8шт.

37

365820

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

8шт.

38

86557260

SPECIAL NUT

Lock, 3/4"-10

8шт.

39

86571960

BOLT

8шт.

40

219-87

LUBE NIPPLE,1/4" - 28 NPTF

8шт.

41

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

4шт.

42

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

43

86624751

KNIFE SET

Includes (10) Ref. 9, 14° CW Blades, & (10) Ref. 28, 14° CCW Blades

1шт.

43

86624752

KNIFE SET

Includes (16) Ref. 9, 14° CW Blades, & (16) Ref. 28, 14° CCW Blades

1шт.

43

87037027

SET OF BLADES

Includes (16) Ref. 9, 14° CW OS Blades, & (16) Ref. 28, 14° CCW OS Blades

1шт.

44

86633750

WEAR STRIP

1шт.

45

86630935

CUTTERBAR

No Longer Avail , Non Shock Hub

1шт.

Cutterbar Does Not Include: Tall Drums or Cutterbar Driveshafts. Those Items Must be Ordered as Required.

1шт.

46

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

47

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

48

87056499

SHIM KIT

Includes: (10) Shims, NSS, & Instructions

1шт.

49

715289026

DIA KIT, HARVESTER

Kit, High Stub - Includes: (8) Ref. 14, High Skid Shoes, & Instructions

1шт.

50

87602273

REPAIR KIT

Shock Retrofit For Ref 17, [Qty For 2 Discs],See 013[2]

1шт.
