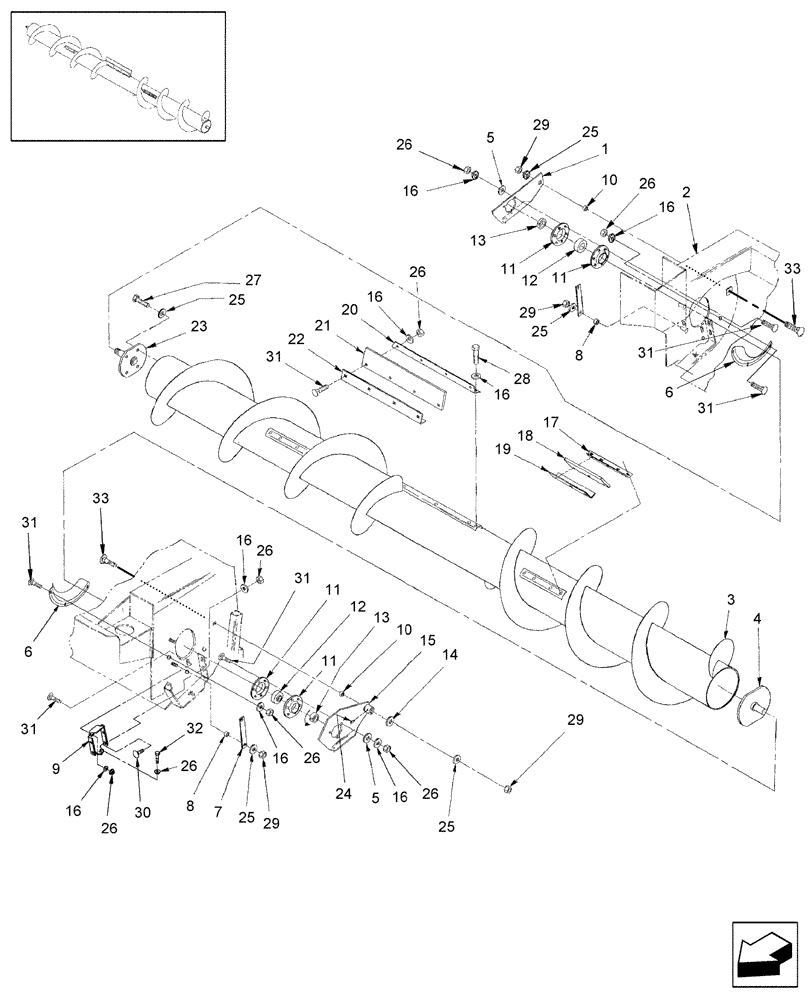

Запчасти Case IH RDX161 (004[2]) - AUGER, FROM PIN HCA0016094 (58) - ATTACHMENTS/HEADERS

1

87025198

ARM ASSY.

1шт.

2

87028109

FRAME ASSY

1шт.

3

87047799

AUGER

1шт.

4

86629902

SHAFT

(Weld-On)

1шт.

5

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

6

87048721

SHIELD

Anti-Wrap

1шт.

7

86625581

GUIDE

2шт.

8

25936

SPACER,13.83mm ID x 20.64mm OD x 7.94mm L

2шт.

9

86631571

BRACKET

2шт.

10

86637375

BUSHING,13.5mm ID x 28.57mm OD x 27.8mm L

6шт.

11

86635012

FLANGE

Bearing

4шт.

12

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

2шт.

13

517645R11

COLLAR

Locking

2шт.

14

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

15

87025440

ARM ASSY.

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

38шт.

17

86631019

BRACKET

13"

4шт.

18

9843137

PADDLE

11"

4шт.

19

86632467

STRIP

4шт.

20

86632437

BRACKET

26"

2шт.

21

9843136

PADDLE

24"

2шт.

22

86632466

STRIP

2шт.

23

86979776

SHAFT

21T Spline

1шт.

24

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

25

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

26

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

27

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

28

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

26шт.

29

425-288

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

30

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

18шт.

31

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

20шт.

32

113-82

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

33

280435

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

2шт.
