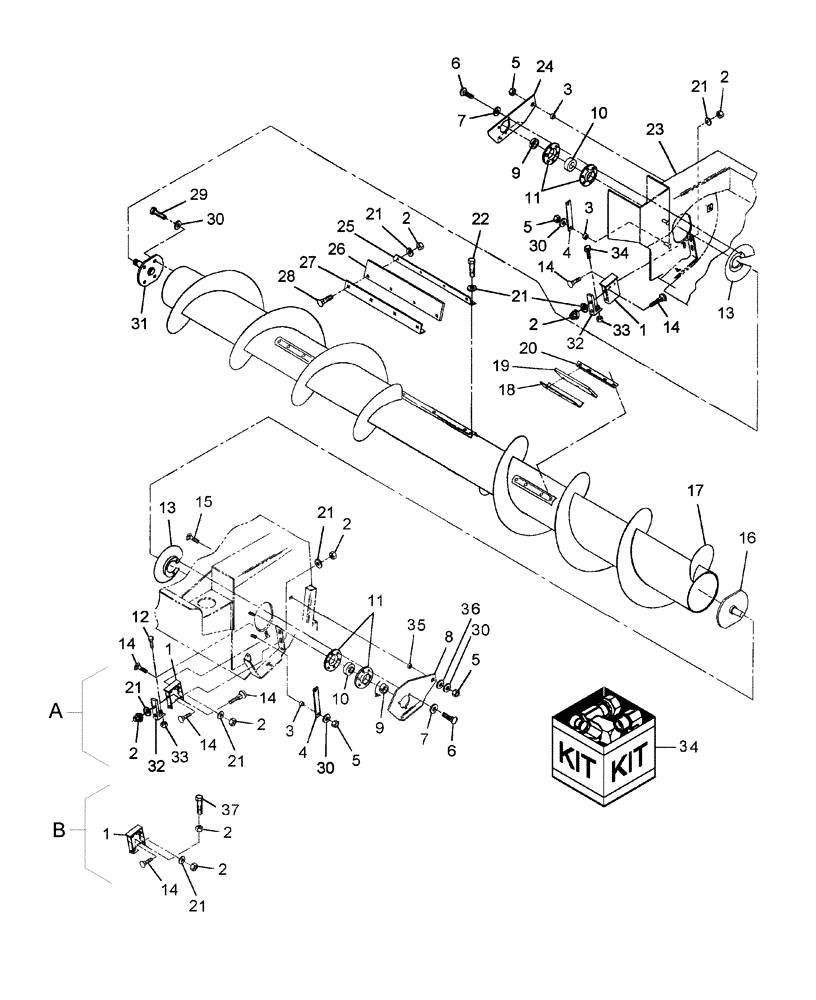

Запчасти Case IH RDX161 (004[1]) - AUGER, PRIOR TO PIN HCA0016094 (58) - ATTACHMENTS/HEADERS

1

9828517

STOP

Auger

2шт.

Prior to PIN HCA0016084

1шт.

1

86631571

BRACKET

2шт.

From PIN HCA0016084

1шт.

2

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

3

25936

SPACER,13.83mm ID x 20.64mm OD x 7.94mm L

4шт.

4

86625581

GUIDE

2шт.

5

425-288

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

7

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

8

86631346

ARM

1шт.

Prior to PIN HCA0016084

1шт.

8

87025440

ARM ASSY.

1шт.

From PIN HCA0016084

1шт.

8

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

(Not Shown)

1шт.

From PIN HCA0016084

1шт.

9

517645R11

COLLAR

Locking, Includes: Set Screw

2шт.

10

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

2шт.

11

86635012

FLANGE

Bearing

4шт.

12

280480

BOLT,Tap, Hex, 1/2" - 13 x 3 1/2", Gr 8

2шт.

Prior to PIN HCA0016084

1шт.

13

86631828

COVER

1шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

10шт.

Prior to PIN HCA0016084

1шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

From PIN HCA0016084

1шт.

15

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

16

86640118

SHAFT

(Weld-On)

1шт.

Prior to PIN HCA0016001

1шт.

16

86629902

SHAFT

(Weld-On)

1шт.

After PIN HCA0016001

1шт.

17

86629903

AUGER

1шт.

18

86632467

STRIP

4шт.

19

9843137

PADDLE

11"

4шт.

20

86631019

BRACKET

13"

4шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

56шт.

22

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

26шт.

23

86633338

FRAME ASSY

Includes: Decals, Refer To Page 020

1шт.

Prior to PIN HCA0016065

1шт.

23

87028109

FRAME ASSY

1шт.

From PIN HCA0016065

1шт.

24

86631121

ARM

1шт.

Prior to PIN HCA0016084

1шт.

24

87025198

ARM ASSY.

1шт.

From PIN HCA0016084

1шт.

24

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

(Not Shown)

1шт.

From PIN HCA0016084

1шт.

25

86632437

BRACKET

26"

2шт.

26

9843136

PADDLE

24"

2шт.

27

86632466

STRIP

2шт.

28

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

20шт.

29

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

30

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

6шт.

31

86617636

SHAFT

1шт.

Prior to PIN HCA0016001

1шт.

31

86979776

SHAFT

1шт.

From PIN HCA0016001

1шт.

32

86629576

STRAP

2шт.

Prior to PIN HCA0016084

1шт.

33

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

Prior to PIN HCA0016084

1шт.

34

87010547

KIT

Auger, Reinforcement

1шт.

35

25936

SPACER,13.83mm ID x 20.64mm OD x 7.94mm L

2шт.

Prior to PIN HCA0016084

1шт.

35

86637375

BUSHING,13.5mm ID x 28.57mm OD x 27.8mm L

2шт.

From PIN HCA0016084

1шт.

36

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

1/2"

2шт.

From PIN HCA0016084

1шт.

37

113-82

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.
