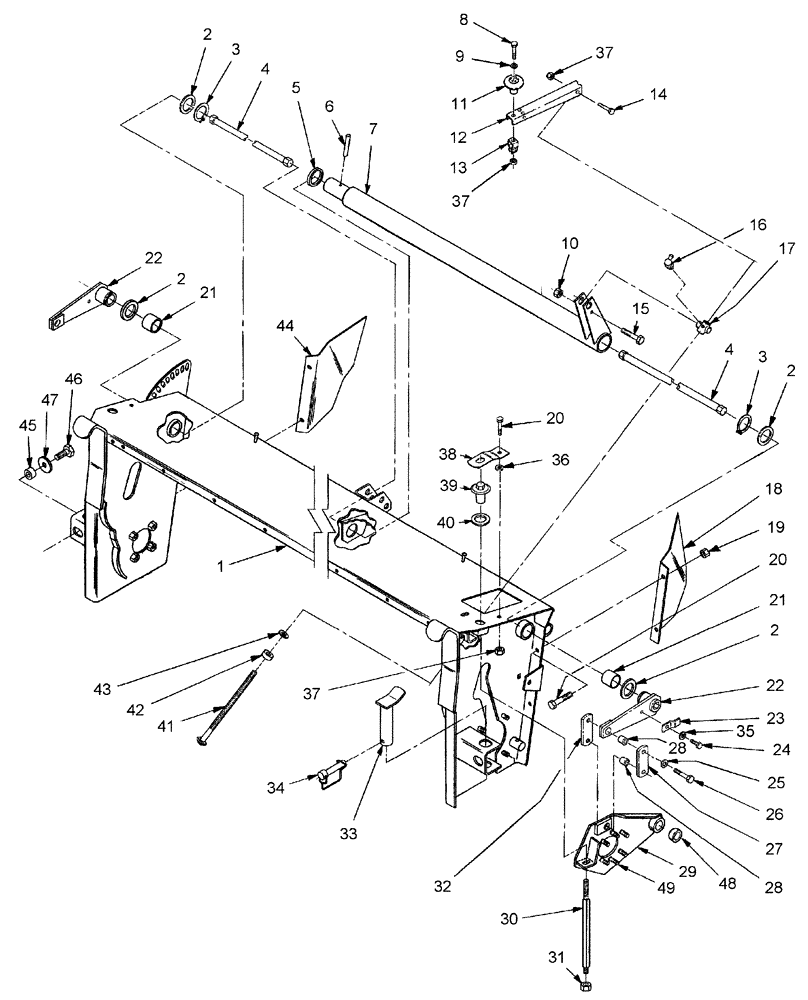

Запчасти Case IH RDX161 (003[1]) - CONDITIONING ROLL TENSION, PRIOR TO PIN HCA0016084 (58) - ATTACHMENTS/HEADERS

1

86633053

ASSEMBLY

Conditioner

1шт.

2

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

Flat, 1-3/4" ID

1шт.

3

100-11175

SNAP RING,#175, Ext

2шт.

4

144385

TORSION BAR

1" x 53" L

2шт.

5

67517

WASHER

2" ID

1шт.

6

80599

GROOVED PIN,1/4" x 2 3/4", Type A

1шт.

7

86632434

TUBE,1355 mm L

1355 mm L

1шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

9

495-21038

WASHER,5/16"

1шт.

10

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

11

33781

KNOB

1шт.

12

86630978

HANDLE

1шт.

13

223162

CLIP

1шт.

14

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

15

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

16

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

17

9622890

NUT

Lift, 3/4"-10

1шт.

18

86633035

DEFLECTOR

LH

1шт.

19

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

20

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

6шт.

21

213346

BUSHING,44.78mm ID x 49.61mm OD x 41.27mm L

1-3/4" x 1-5/8" L

2шт.

22

86632454

ARM

2шт.

23

289688

CLIP

2шт.

24

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

25

262183

WASHER

Flat, 1/2" ID

4шт.

26

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

27

86631385

CONNECTING LINK

1-1/2" x 5-1/8"

2шт.

28

86631384

SPACER

4шт.

29

86629686

ARM

Roll, Includes: 48 & 49

1шт.

30

86554356

ROD

5/8"-11 x 14"

2шт.

31

231-53410

FLANGE NUT,Flg, 5/8"-11

2шт.

32

86631386

CONNECTING LINK

1-1/2" x 5-1/8"

2шт.

33

86535146

PIN

170 mm L

2шт.

34

283978

PIN,9.53mm OD

2шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

36

215588

WASHER

Nylon, 3/8"

2шт.

37

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

38

86538387

RETAINER

2шт.

39

86504380

FLANGE NUT,5/8" - 11

Flg, 5/8"-11

2шт.

40

9849882

WASHER,38mm ID x 65mm OD x 6.35mm Thk

Nylon, 1-7/16"

2шт.

41

9622891

SHAFT,3/4" - 10 x 12.60"

309 mm L

1шт.

42

9801922

THRUST BEARING,19.25mm ID x 35.97mm OD x 11.76mm W

1шт.

43

86637237

WASHER

Flat, 3/4" ID

1шт.

44

86633033

DEFLECTOR

RH

1шт.

45

781727

SPACER

25/32" x 1-1/4"

2шт.

46

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

47

495-21081

WASHER,3/4"

2шт.

48

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

1-3/16" x 1-7/16" x 3/4"

4шт.

49

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

12шт.
