Запчасти Case IH RDX161 (002[2]) - CONDITIONING ROLLS, FROM 2/07 (58) - ATTACHMENTS/HEADERS

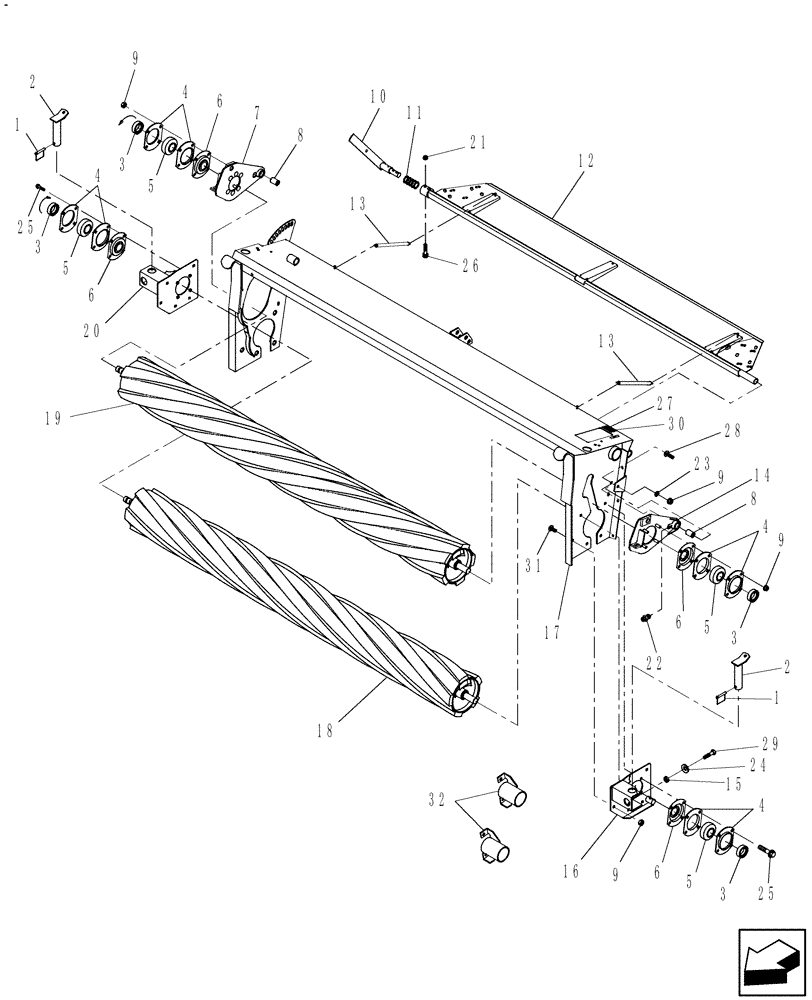

Схема запчастей Case IH RDX161 - (002[2]) - CONDITIONING ROLLS, FROM 2/07 (58) - ATTACHMENTS/HEADERS
13
3
9
22
31
2
3
9
7
12
14
1
5
20
21
25
8
5
29
24
30
16
4
8
3
13
1
11
5
9
17
4
6
9
25
19
32
5
26
18
4
15
4
6
27
6
10
6
23
28
2
3

Артикул

Название

Примечание

Количество

1

283978

PIN,9.53mm OD

2шт.

2

86535146

PIN

2шт.

3

45393

COLLAR

4шт.

4

189786

FLANGE

8шт.

5

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

4шт.

6

86633047

SHROUD

4шт.

7

87055307

ARM

1шт.

8

9849929

SPACER

2шт.

9

86521607

FLANGE NUT,Flg, 1/2"-13, G5

20шт.

10

86633031

HANDLE

1шт.

11

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

5шт.

12

87048977

TAILGATE

1шт.

13

510362

SPRING

2шт.

14

87056485

ARM ASSY.

1шт.

15

781727

SPACER

2шт.

16

87570168

SUPPORT

LH

1шт.

16

87489028

SUPPORT

LH

1шт.

17

87541123

FRAME

1шт.

18

86610313

ROLL

Steel, Lower, DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

18

86610945

ROLLER ASSY.

Spiral Rubber, Lower, DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

18

87045481

ROLL

HI Contact, Lower

1шт.

See Also: Ref. 32

1шт.

19

86610314

ROLL

Steel, Upper, DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

19

86610941

ROLLER ASSY.

Spiral Rubber, Upper, DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

19

87045480

ROLL

HI Contact, Upper

1шт.

See Also: Ref. 32

1шт.

20

87570169

SUPPORT

RH

1шт.

20

87489029

SUPPORT

RH

1шт.

21

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

22

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

23

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

24

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

25

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

26

86570628

HEX SOC SCREW,1/2" - 13 x 2"

2шт.

27

NS

NOT SERVICED

PIN Plate

1шт.

28

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

29

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

30

87522

DRIVE SCREW,Rd Hd, #4 x 1/4", U Type

2шт.

31

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

10шт.

32

86607882

TUBE,115 mm L

2шт.

Used To Cover Splines On Hi Contact Rolls

1шт.

Выбрано товаров: 41
